What is a short electrical

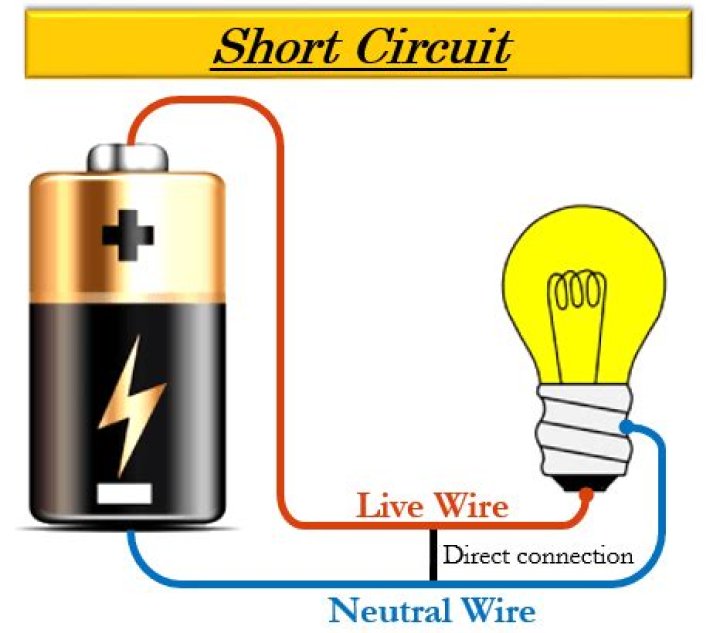

A short circuit (sometimes abbreviated to short or s/c) is an electrical circuit that allows a current to travel along an unintended path with no or very low electrical impedance. … The opposite of a short circuit is an “open circuit”, which is an infinite resistance between two nodes.

What causes a electrical short?

A short circuit is any electrical flow that strays outside its intended circuit with little or no resistance to that flow. The usual cause is bare wires touching one another or wire connections that have come loose. … Frayed or otherwise damaged electrical extension cords or appliance cords can also cause short circuits.

How do you fix an electrical short?

1. Shorts Occur in a Circuit. Electricity flows in a circuit. …
2. Isolate the Circuit. …
3. Check the Appliances on the Affected Circuit. …
4. You Need the Proper Tools. …
5. Remove the Wires. …
6. Check the Wires. …
7. Remove the Breaker Wires. …
8. Check the Breaker.

How do you tell if there is an electrical short?

Locating a Short If you suspect a short, look for physical signs of one. This includes burning smells, visible burns or melted metal on wires, hot spots in the wall or cover of an electrical component, sizzling or popping sounds, flickering lights or other signs of inconsistent voltage.

What are the dangers of short circuit?

Short circuits are liable to cause fires, electrical burns, and electrocution. Stray electrical currents can also cause considerable damage to appliances and a home’s electrical system.

What happens if you short an outlet?

A circuit with no impedance draws excessive current and can create excess heat, which can cause a melted or burnt wire. Short circuits can also cause sparks, fire and smoke. A short can also be caused when the hot wire comes into contact with a metal electrical box.

Can short circuit damage appliances?

Short circuits are a major type of electrical accident that can cause serious damage to your electrical system. They occur when a low-resistance path not suited to carry electricity receives a high-volume electrical current. … The result of a short circuit can be appliance damage, electrical shock, or even a fire.

Can a short circuit damage an outlet?

The Outlet Is Cracked The short-circuit may also trigger electrical faults in other parts of the circuit and cause damage. Secondly, if the crack is large enough, a child can poke their finger or, even more likely, insert an object into the crack and experience an electrical shock.

Can wires touch in junction box?

Mistake: No electrical box | Never connect wires outside of electrical boxes. Junction boxes (or a J box) protect the connections from accidental damage and contain sparks and heat from a loose connection or short circuit.

What prevents short circuit?

Install Fuses: Fuses interrupt the flow of current when it increases beyond the amount the circuit was designed for, thereby preventing a short circuit. Therefore, installing fuses are a good way to avoid short circuits and all the damages it could bring.

Article first time published on

How much does it cost to fix a short circuit?

Finding and repairing a short circuit in your car or truck’s electrical system can cost $200 and up at a shop. But if you spend $15 on a pro-grade shop manual and $40 on specialty tools, you can track it down yourself in an afternoon.

What happens if you touch a short circuit?

A short-circuit takes place when a part of a wire carrying current touches the other wire and gives the electricity a path of less resistance. Briefly, a short circuit gives the electricity path of least resistance between two points, which means the short circuit will produce more heat and lead to burns and fires.

Is a short circuit an emergency?

A short circuit is a sign that something is wrong with your wiring, and this problem may pose a serious fire hazard to your home. Responding to short circuits correctly can mean the difference between lights switching on as intended and an emergency situation.

What happens when a wire short circuit?

If a short circuit occurs—or even if too many appliances get hooked up to one wire so that too much current flows—the wire in the fuse heats up quickly and melts, breaking the circuit and preventing a fire from starting.

How does a short circuit cause a fire?

Short circuits occur during overloading or when two bare wires touch. A circuit is said to be overloaded when too much current flows causing heat build up or wiring to break down. This can lead to sparks and fire.

Why do short circuit causes fire?

First, an electrical short circuit causes the overload current. Second, this amount of current causes high heat. Last, this high heat increases the temperature of surrounding materials until the temperature reach to the Ignition temperature, the combustion will occur.

How do you know if an outlet is shorted?

1. Odd smells such as burning or melted plastic.
2. Humming or crackling sounds.
3. Heat on or around your outlet.
4. Discoloration around your outlets or light fixture.

Can half an outlet go bad?

A bad connection, outdated wiring, or a tripped circuit breaker can cause a malfunctioning outlet. But there are instances where only half of an electrical outlet works and the other one doesn’t. It can happen for multiple reasons, and it is wise to call an electrician to look into the issue.

What is the voltage in a short circuit?

The Voltage of a short circuit should be zero or at least very small. The usual terms are “Short Circuit Current” and “Open Circuit Voltage.” That is an odd term. The Voltage of a short circuit should be zero or at least very small.

Is it OK to leave ground wire exposed?

Exposed Grounding Wires Grounding wires do not have electric current running through them most of the time, and commonly have exposed wires and connections. … The grounding wires are safe to touch unless there is an electrical surge that causes electricity to flow through the grounding wire.

Can ground wires be bare?

Bare copper grounding wire is less expensive than insulated grounding wire and works well in many industrial applications. Particularly for large projects, using bare copper may yield significant cost savings.

Can two different ground wires touch?

A ground wire can touch itself without any risk. That’s because one wire doesn’t make a circuit, it takes two wires or more, or a physically-grounded component in conjunction with a wire to do that. In both AC and DC circuits, it works the same way. Nothing will happen if it’s the same wire.

How do you reset a shorted outlet?

If an outlet isn’t working, check your circuit breaker panel. The breaker that is tripped will appear to be between the ‘on’ and ‘off’ position. Flip the switch to off, then back to on. This will reset the circuit and potentially fix your broken outlet.

Why does my outlet keep shorting?

A short can occur in an outlet, a switch, or within an appliance if wires are loose or damaged by mice or pets chewing through them. … If you notice that using a specific appliance, such as your vacuum, trips the breaker every time you turn it on, try plugging it into an outlet in a different room.

Can electrical short cause fire?

A short circuit means an improper connection between wires is causing a large flow of electrical current. This current is at an unsafe level and trips the breaker and blows fuses, shutting down that flow of electricity. Short circuits potentially lead to arcing, producing high heat that starts fires.

Can a short circuit be fixed?

Unless you’re a certified electrician, diagnosing and fixing a short circuit is something that you should get help with. If your circuit is short, rewiring may be necessary. The short could also be within the device you’re using, which must also be handled with the proper skill.

How do you know if you have an electrical problem in your house?

1. Unfamiliar or funny odors. …
2. Arc faults. …
3. Counterfeit electrical products. …
4. Warm or sparking outlets and switches. …
5. Buzzing sounds. …
6. Flickering lights. …
7. Broken light switches and loose outlets. …
8. Hot ceiling fixtures.

How much does an electrician charge to add a circuit?

ItemUnit CostCostMaterial Cost$2.56$82+ Labor Cost (electrical)$42$126+ Labor Cost (upgrade)$42$84Total Cost$9.73$292

How much does it cost to rewire a 1500 sq ft house?

Square FeetAverage Cost1,200$1,900 – $4,5001,500$2,300 – $5,6002,000$3,200 – $7,6002,500$3,900 – $9,400

Can you get a shock from a short circuit?

This occurs when the flow of electricity is interrupted by a flaw in the established wiring. If a short circuit in your electrical system is not found and promptly fixed, it could produce sparks, smoke, or fire or cause electric shock.

What is the difference between a closed circuit and a short circuit?

Closed circuit is the path provided to current to flow. Current always flow through the shortest path. Short circuit is like closed circuit which provide current shortest path to flow with least resistance.
