What is a shank pilot hole

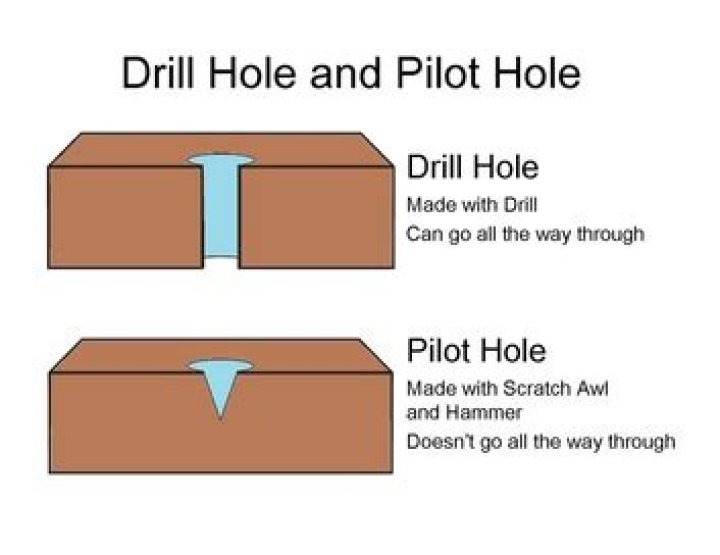

A pilot hole works in conjunction with a screw-shank clearance hole. A pilot hole is a small-diameter hole bored into the bottom board. Its purpose is to provide a path for the screw to enter the board without splitting it. … Note that pilot holes in hardwood are slightly larger than those for softwoods.

What is the difference between a pilot hole and a shank hole?

A clearance hole will allow a screw to pass through it without the threads biting into the material. … A pilot hole, on the other hand, makes room for the screw shank yet provides material for the screw threads to thoroughly bite into the material securing the fastener.

What is a pilot hole and why is it used?

Pilot holes for screws Pilot holes may be used when driving a screw, typically in wood, concrete, or plastic where the screw cuts its own threads. When a screw is driven into a material without a pilot hole, it can act as a wedge, generating outward pressure which can cause many materials to split.

What is Shank hole size?

SCREW GAGE NUMBERSHANK HOLE HARD & SOFT WOOD0 1 2 3 4 5 6 7 8 9 10 11 12 14 16 18 201/16″ 5/64″ 3/32 7/64″ 7/64″ 1/8″ 9/64″ 5/32″ 11/64″ 3/16″ 3/16″ 13/64″ 7/32″ 1/4″ 17/64″ 19/64″ 21/64″

What is a shank screw?

The shank is the long and narrow body of a screw that connects the head to the tip. Most screws have a fully threaded shank that’s defined by helical ridges.

What is a straight shank?

The straight shank is the most usual style on modern drill bits, by number manufactured. The whole of the drill bit, shaft and shank, is usually of the same diameter. It is held usually in a three-jaw drill chuck. … Such a drill bit is called a reduced-shank or blacksmith’s drill.

What torque should I use for screws?

4 to 15Nm is fine for all of those smaller screw driver tasks around the home. 15 to 35Nm is a great all-rounder to drill and drive medium sizes screws and hole drilling. 35Nm upward will tackle all of those more serious project with bigger screws and holes.

What is a number 7 screw?

SizeMajor Thread Diameter*DecimalNearest Fractional Measurement#6.138″9/64″#7.151″5/32″#8.164″5/32″

Is a number 9 or 10 screw bigger?

In all cases, the larger the number, the larger the size. Consequently a #8 screw is larger than a #4 screw, just as a 3 inch bolt is larger than a 2 inch bolt. … Common threads per inch sizes are: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 24, 28, 32, 36, 40, 48, 56, 72, 80.

What's the clearance hole?

A clearance hole is a hole through an object which is big enough to enable threads of a screw or bolt to pass through but not the head of the screw or bolt. It allows a screw to pass through it without the threads biting into the material.

Article first time published on

What is the proper method of installing a screw?

Installing screws is a simple process. Using either a screwdriver or drill/driver with the appropriate driver bit, place even pressure on the drive recess and being spinning it.

Do you need pilot hole for studs?

If you’re hanging shelves or mounting anything heavy to the wall, you’ll probably want to mount it directly to the wall studs. However, you should be drilling pilot holes first before driving in any screws.

Do you always need to drill a pilot hole?

Pilot holes are necessary if you’re drilling into hardwood, laminate, or need a precisely located fastener. They’re also recommended if the wood is likely to crack, or if appearance is important. You can skip the pilot holes when doing a rough build with softwood where appearance isn’t important.

How deep should I drill a pilot hole?

Drill until your pilot hole is the same depth as the length of your screw or nail. Many experienced do-it-yourselfers can eyeball the depth, but if you aren’t yet that experienced, you can use a drill stop to mark the appropriate depth.

Where is a screw shank nail commonly used?

A screw shank nail is generally used in hard woods to prevent the wood from splitting while the fastener is being driven. The fastener spins while being driven (like a screw) which creates a tight groove that makes the fastener less likely to back out.

What is a bolt with a shank called?

Carriage bolt: The head is rounded with a square section of shank immediately below which locks into the part allowing a nut to be tightened without holding the bolt. •

What is the shank on a nail?

The Nail Shank is the part which, as already mentioned, does most of the holding. This pressure is the reason why it is so difficult to pull a nail out of the wood. … The shank is one of four types: Smooth, Spiral, Ring or Screw.

How much torque can you apply with a screwdriver?

Most torque screwdrivers allow the torque to be set to any value within a range. All have a torque-limiting clutch that disengages once the preset torque has been reached. Torque screwdrivers can exert torques from 0.04 N⋅m to at least 27 N⋅m.

Can you use a drill to drive screws?

Most cordless drills are intended to be used as screwdrivers. Almost all cordless drills on the market have both variable speeds and a clutch, allowing them to drive and remove screws. … I also recommend grabbing a drill bit extender. They make driving screws much easier, and only cost a buck or two.

What is the difference between bolt tensioning and torquing?

“Torque” is simply a measurement of the twisting force required to spin the nut up along the threads of a bolt, whereas “Tension” is the stretch or elongation of a bolt that provides the clamping force of a joint. … The number of times that the bolt has been used. Cleanliness of the bolt.

What are shanks used for?

A shank is the part of a drill bit or any other bit that you insert into a drill, router or other tools that will accept a bit. For example, take a drill bit. You have the actual drill and the actual bit itself. The shank is what the drill chuck holds onto in order for the bit to stay in place.

Why are drill bit shanks round?

Round shanks have low torque transmissions, which can help prevent straight shanks from drilling very hard materials. Some drill bits feature straight shanks smaller in diameter than the bit itself, which allows for diversity in chuck size.

Whats the difference between straight and hex shank?

Straight shanks are used for keyed or keyless chucks (from 10 to 13 mm). SDS shanks are used for SDS+ or SDS Max chucks. Hex shanks are used for screw guns or electric screwdrivers.

What does GRK screws stand for?

oK – stupid question – whats GRK stand for? Green River Killer. BUIC Sep 01, 2007 02:55pm #16. GRK is a brand of high quality screws.

Can you use sheet metal screws in wood?

These screws are not really interchangeable. In a bind, if you’re short of the right available screws, you can use a sheet metal screw on wood. However, the opposite is not the case. Wood screws are unlikely to form a tight enough joint when used on sheet metal – especially if they have a threadless shank.

What is the difference between #8 and #10 screws?

Screws with a diameter smaller than 1/4″ have a nominal size indicated by a number (e.g. #8 or #10). 1/4″ and larger diameters are shown as inches. The diameter refers to the major diameter, or outside edge, of the threads.

What does G mean in screws?

Self Tapping Screw Gauge (g)

What are M4 screws?

They’re made from a durable carbon steel and come with a nut for tightening metal surfaces together. The M4 machine screw has a thread diameter of 4 millimetres, in simple terms the M stands for millimetres followed by the size – in this case 4 mm.

What is a #9 screw?

Fringe Screw. Grip-Rite. Screw Length: 1-1/2 in. Screw Length: 2-1/2 in.

What is tap drill?

Definition of tap drill : a drill for drilling a hole of exact diameter for tapping.

How is hole clearance calculated?

The LMC clearance hole also can be calculated by adding the diameter of the fastener and the diameter of the fastener head and then dividing the sum by two. This method of selecting the LMC clearance hole size is a rule of thumb that will yield the largest hole that will fit under the head of the fastener.
