What is a rip rap bank

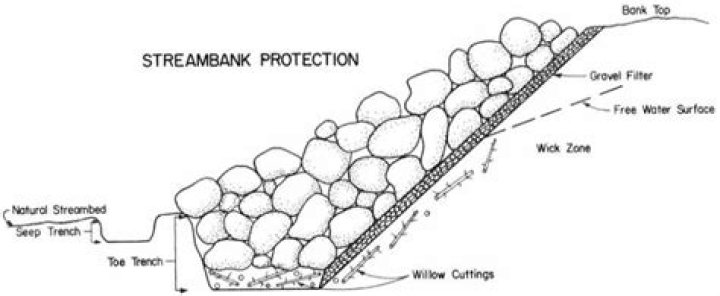

Riprap is used where a structure or shoreline is continuously exposed to rushing water: … Along the outer bank of a river bend, dissipating the force of the water against the bank.

What is the purpose of rip rap?

Riprap is a permanent layer of large, angular stone, cobbles, or boulders typically used to armor, stabilize, and protect the soil surface against erosion and scour in areas of concentrated flow or wave energy.

What do you put under Rip rap?

Place a layer of filter fabric over on top of the exposed slope to prevent soil movement under the riprap. If filter fabric is used, it should be followed by a three inch thick layer of clean three fourths (3/4) inch crushed stone.

Why is it called rip rap?

In the American English of 1822 the word riprap was connected with a nautical word, rip-rap, which meant a “stretch of rippling water, often caused by underwater elevations.” The word “rap” also meant “blow, or strike.” People may have started to call it rip rap because the waves constantly blow into or strike the …

How much does a rip rap seawall cost?

The cost of riprap varies depending on location and the type of material selected. A cost of $25 to $75 per cubic yard of ungrouted riprap can be used as a basic quote, while grouted riprap ranges from $45 to $60 per square yard.

Is riprap hard engineering?

Hard engineering strategies act as a barrier between the sea and the land. … Examples of hard engineering strategies include sea walls, groynes, revetments, rock armour (rip rap), gabions and offshore breakwaters. Sea walls are often built at the foot of cliffs to prevent cliff erosion and subsequent collapse.

How long does rip rap last?

4. Rip Rap Lasts for A Long Time. If you keep up on the annual maintenance of your rip rap rock wall, then it will work for a lifetime. Rip rap rocks are designed to be durable and long-lasting.

How is rip rap calculated?

You want to cover an area that is 1000 feet wide by 250 feet long with 2”-4” Apache Brown Rip Rap. First, multiply 1000 x 250 to give you 250,000 square feet. Divide 250,000 square feet by 70 square feet per ton, which gives you 3571.4 tons as the approximate quantity of 2”-4” rip rap needed for your project.

Is it riprap or rip rap?

Riprap (in North American English), also known as rip rap, rip-rap, shot rock, rock armour (in British English) or rubble, is human-placed rock or other material used to protect shoreline structures against scour and water, wave, or ice erosion.

What size is rip rap?

The most commonly used sizes of rip rap are Grade 1 (12”-18”) and Grade 2 (18”-24”). This product is easy to install and repair, has a natural appearance and does not harm the environment.

Article first time published on

What is R 3 rip rap?

Rip rap is large — nearly boulder-size — crushed stone. It is mainly used in applications by bodies of water, which is why you commonly see it along streams, rivers and similar locations.

Is Rip Rap expensive?

Rock Armour / Rip Rap. Large boulders, of 10 tonnes or more, are piled up along the shoreline to form a type of sea wall. The rocks are dumped on top of each other leaving gaps between them that allow water to flow through. … Expensive but easier and quicker and cheaper to construct than concrete sea walls.

Why is rip rap bad?

In areas of low vegetation, when exposed to direct sunlight, the rocks that comprise riprap can reflect light into the water, which increases water temperatures to an unhealthy degree for fish. Riprap also tends to suffer from structural integrity issues during and after high-water events.

How much does it cost to install rip rap?

In general, the average installed cost of riprap is from $30 to $65 per square yard, and sometimes much more, depending on rock size, transportation costs from the stone quarry, and other project specifics.

How effective is rip rap?

Riprap or rock armour an effective solution to protect coastlines and structures from erosion by the sea, rivers, or streams. … Large boulders interlocked together to form rock revetments can be used to control erosion by armouring the beach face and dissipating wave energy.

What are rip rap advantages and disadvantages?

Advantages Dissipates wave energy Effective for many years Can be very cheapDisadvantages Visually unattractive Can make the beach inaccessible Not effective in stormy conditionsEvaluation Rip-rap is used at Criccieth, Wales to protect the cliff and castle from erosion.

What are the disadvantages of revetments?

Advantages Absorb wave energy through the slats Effective for many years Can be cheap compared to other techniquesDisadvantages Not effective in stormy conditions Can make the beach inaccessible for tourists Regular maintenance is required Visually obtrusiveEvaluation Used in Happisburgh

What does 1 ton of rip rap look like?

Rip rap can vary in size from about the size of a softball to as large as approximately 10″ to 12″ in diameter. The average is usually from about 3″ to 8″ in size. One ton of rip rap will usually cover an area of 35 to 40 linear feet, spread 3′ wide.

How much rip rap is in a yard?

Rock riprap weighs 1.2 to 1.7 tons per cubic yard.

What does D50 mean riprap?

D50 = riprap diameter in feet. Thickness: The minimum thickness of the riprap layer shall be 2.2 times the maximum stone diameter (for a D50 of 12” or smaller), but not less than 6 inches. For D50 specified greater than 12 inches, the riprap layer thickness shall be 2 times the D50.

What is class1 rip rap?

CLASS 1 RIP-RAP. No more than 10% of the stone will have a diameter greater than twelve (12) inches; no more than 50% of the stone will have a diameter less than ten (10) inches; and no more than 10% of the stone will have a diameter of less than six (6) inches.

What is Type 1 rip rap?

A large aggregate that has been crushed, reduced, and screened to size. Usually a permanent, erosion-resistant ground cover.

What kind of stone is rip rap?

Usually Fieldstone (also known as glacier stone or river rock) is the best type of rock for a riprap shoreline. It comes in a variety earthy colors, has smooth and rounded sides, and somehow just blends in perfectly to a Minnesota or Wisconsin shoreline.

What is Aashto No 57?

AASHTO #57 aggregate is a crushed stone grade that is gravel-like and made from a blend of stones five, six and seven. It comes from natural rock, so the pieces are jagged and angular.

Is 2A or 2B better for driveway?

It depends on your driveway needs. If your driveway is flat and has no mud issues 2B Limestone (57), 2A Limestone, or Asphalt Millings are best. The only difference between 2B and 2A is that the 2A has some Limestone dust (10) mixed in with the stone, and tends to compact better.

What is Aashto M43?

AASHTO M 43. January 1, 2005. Standard Specification for Sizes of Aggregate for Road and Bridge Construction. This specification defines aggregate size designations and ranges in mechanical analyses for standard sizes of coarse aggregate and screenings for use in the construction and maintenance of various… M43.

How much does rip rap cost per linear foot?

In many cases, if you are using the best solution rip rap rock revetment contracting can cost more than $2,200 per linear foot.
