What is a PVC slip fitting

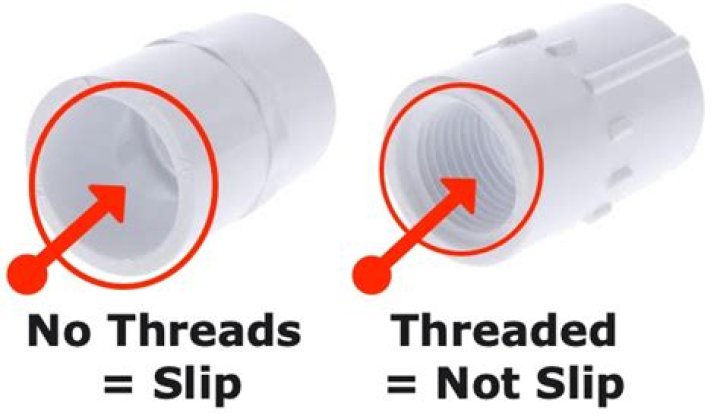

In this context, a PVC slip fitting simply means a fitting with no threads or barb. Slip does not indicate male or female, just whether there are threads or not. Basically, if the pipe slips into the fitting, or if the fitting slips into a larger fitting, with no threads, it’s a slip fitting.

What is a slip plumbing fitting?

A slip fitting does the job of two couplings and extra pipe. Only one end of the coupling has a stop, allowing the opposite end to slide freely over the end of a pipe. The fittings are then released using a disconnect tool and slide back onto the other end of the pipe for a successful connection and leak repair.

How long do PVC compression fittings last?

As one of the most-used plumbing materials, PVC pipe is known for being very durable and long-lasting. In fact, PVC pipes last approximately 100 years.

What is a slip elbow PVC?

These Schedule 40 PVC Slip Elbows are used to make a 90° turn in a run of PVC pipe. Slip fittings require primer/glue. … All plumbing grade PVC should have size and rating information imprinted on the outside of the pipe. PVC pipe is named for the inside diameter, commonly referred to as “a nominal size”.

What does slip fit mean?

Obvious from the name “slip fit” is this: The parts must have minimal assembly friction. The goal of a slip fit is easy alignment, requiring enough space around the dowel that alignment is easier: no excessively tight fits. How much is excessive? More on that in a moment, but first, the ideal uses of slip fits.

What is PVC spigot?

Definition. A spigot is generally the male end of a PVC pipe fitting, which connects by attaching inside the other PVC pipe or joint. So, essentially, a spigot connects two PVC pipes or joints. Spigots can be used in different PVC pipe-fitting applications.

What threads are on PVC fittings?

Fittings can come in all shapes, sizes, and materials. FPT (FIPT) – aka Female (Iron) Pipe Thread. This is a type of threading that is found on the inside lip of a fitting, allowing connection to a MPT or male pipe threaded end. FPT/FIPT threading is commonly used for PVC and CPVC piping systems.

What is a slip connector?

A Slip Connector has a female end on one end and the rest of the pipe is like a male connector, slightly smaller than the regular inside dimension of stove pipe. It will telescope from 4″ to 16″ in another pipe. … Using a this connector makes easy work of installing stove pipe, there is no cutting involved.

What is a PVC bushing?

PVC bushing is a kind of reducing bushing made of PVC. It is used to connect two sections of internal and external threaded pipe fittings with different diameters, which plays an irreplaceable bushing in the pipe connection.

Does PVC get brittle with age?

PVC becomes increasingly brittle as the temperature drops. When exposed to freezing temperatures for prolonged periods of time, it can become brittle enough to crack quite easily.

Article first time published on

Does water freeze in PVC pipe?

PVC pipes are in danger of freezing when surrounding temperatures approach 20 degrees Fahrenheit. Ice begins to form and gradually blocks the pipe. … Water damage from a burst pipe is expensive. To avoid dealing with burst pipes, prevent them from freezing.

Can you bury PVC compression fittings?

PVC should only be used for connections that will be hidden from sunlight, like underground or in a box. A compression fitting works by using a rubber gasket. … Use metal body compression fittings above ground level, PVC may be used below ground but must be installed below the frost level.

Is a slip fit a clearance fit?

In a slip fit tolerance, a certain amount of clearance exists between mating parts. Because this tolerance is looser, fabricators can secure it by hand. Slip fit tolerances are ideal for when the part needs to functionally slide (e.g. a bolt) or when something else like a keyway will secure it.

What size is a slip fit?

As an example, a 10 mm (0.394 in) shaft made of 303 stainless steel will form a tight fit with allowance of 3–10 μm (0.00012–0.00039 in). A slip fit can be formed when the bore diameter is 12–20 μm (0.00047–0.00079 in) wider than the rod; or, if the rod is made 12–20 μm under the given bore diameter.

Do PVC threads need Teflon tape?

The right way to assemble a threaded PVC joint-Schedule 40 or 80 is finger tight plus one to two turns-no more. Two turns past finger tight plus the stress of the system pressure is within the tensile strength of one-inch PVC. Don’t use Teflon tape, Teflon paste or pipe dope. Do use a sealant.

Should you put Teflon tape on PVC fittings?

Don’t use Teflon tape, Teflon paste or pipe dope. … Teflon paste and pipe dope, just like Teflon tape, make threaded joints slippery. Their use on PVC fittings can be an invitation to over-torque. When working with threaded plastic fittings do use a proper sealant.

Can you glue threaded PVC fittings?

You cannot use PVC cement on threaded connections, as it chemically bonds PVC together, destroying the threads. … Threaded connections are made with sealant tape or thread sealant (“pipe dope”) which create a tight seal between threads.

Are PVC unions reliable?

Plastic piping and threaded fittings are extremely reliable at providing a leak free service. Issues with stress cracking of PVC threaded fittings can be easily avoided by adhering to proper installation guidelines.

How do you tighten PVC unions?

Once the sealant is applied to your threads, insert the male end into the female fitting. Once the pieces are together, tighten the connection by hand slowly until the fitting will not turn any more. At this point, you can use a wrench to complete one or two more turns. Do not tighten your fitting past this point.

How do you fix a small gap with PVC pipe?

1. Scuff the surface of the PVC pipe where the hole is located with the 200-grit sandpaper. …
2. Wipe the sanded area of the PVC pipe with a dry rag to remove sanded dust from the repair area.

What does SXS mean PVC?

For use when attaching two PVC Pipes of the same size.

What is PVC bushing used for?

These bushings are used to connect two different size pipes and are available in a range of size combinations. They have a spigot fitting on the outside and a socket fitting on the inside. A socket x socket coupler is needed to connect the spigot side of the fitting to the existing pipe.

What is a PVC reducer bushing used for?

Schedule 40 PVC reducer bushings are used when the pipe diameter changes throughout a run. Create a tight seal between two different diameter pipes connected together.
