What is a pump check valve

Check valves, or one-way valves, are designed to stop backflow and, ultimately, to protect pumps and compressors. They are available in several styles and sizes, from 1/8 inch to as large as may be required.

Does a pump need a check valve?

Check valves are designed to permit water to flow in one direction and are a requirement on all submersible pump installations. Their job is to prevent water in the column above the pump and in the pressure tank from draining back into the well when the pump shuts off.

What happens when a check valve goes bad on a well pump?

A common cause is a failed check valve. The check valve or foot valve prevents the well pressure tank from sending water back down into the well after it has built up with water pressure. If the valve fails, water streams back down the well, and the pressure switch turns the pump on again.

When should check valves be used?

A check valve will be used commonly on the discharge of the pump to prevent backflow from the downstream system, when the pump shuts off. Check valves are also used to prevent contaminated media in branches from flowing back into the main trunk line.

Does check valve reduce water pressure?

No. A check valve prevents backflow. A pressure reducing valve can regulate water pressure. A PRV can be either a fixed outlet pressure or a dial up type can be adjusted to suit application.

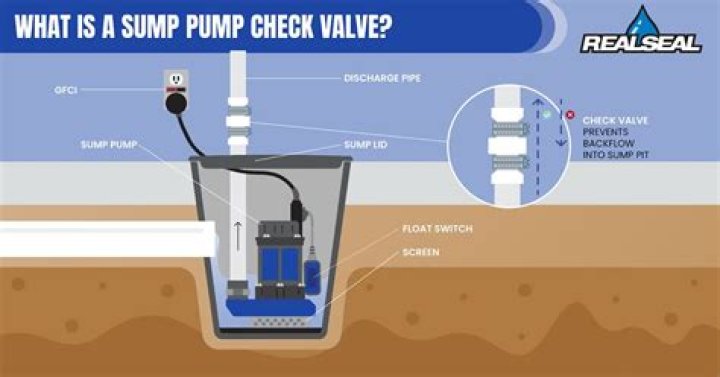

Is a check valve necessary on a sump pump?

Sump pump check valves are an important part of any sump pump system. Installed in the discharge pipe leaving your sump pump, the sump check valve prevents your pump from having to re-pump water it has already discharged.

Should a check valve be before or after pump?

The most common installation is at the pump. A check valve may be installed on the suction side of the pump to maintain the pump’s prime in the event of a pump shutdown. A check valve will be used commonly on the discharge of the pump to prevent backflow from the downstream system, when the pump shuts off.

How do you know if a check valve is bad?

Symptoms of a Failing Check Valve For example, failing check valves will start to vibrate and even lose some internal parts when problems begin to arise. Other symptoms of check valve failure include reverse flow and excessive component wear and damage. Check valves will also emit noises as they start to break down.

How often should a check valve be replaced?

While typical component lifespans are application specific, manufacturers suggest metal and plastic check valves should be replace every 5-7 years whereas check valves manufactured from rubber may remain fully serviceable for up to 35-50 years.

Does a check valve restrict flow?

Check valves are designed to prevent water flowing in one direction while moving somewhat freely in the other direction. … In yet another style of check valve, water pressure compresses a spring-loaded disc in the fluid stream, pushing the disc back into the valve body and opening a path for the water to flow around it.

Article first time published on

Will a check valve prevent siphoning?

Check valves allow one directional water flow and are used to prevent back siphoning. They are commonly used on return pump outputs to prevent water overflowing the sump in the event of a power outage, pump failure or maintenance.

How much pressure is needed to open a check valve?

The minimum upstream pressure required to operate the valve is called the cracking pressure, generally between 1 and 5 psi. Check valves are designed specifically with this number in mind. The degree of opening on a check valve is determined by the flow rate.

Where should check valves be installed?

Check valves are used in many different applications. For example they are often placed on the outlet side of a pump, to protect the pump from backflow. Centrifugal pumps, the most common type of water pumps, are not self-priming, and therefore check valves are essential for keeping water in the pipes.

Do I need a check valve on my pool?

Raised Pool Pumps The most common use for a check valve is to hold the water in the pump when the motor shuts off. … When doing so however, you will need to install check valves on all vertical suction pipes, unless one pipe normally has a closed valve, like a spa drain pipe.

Where should I put a check valve on my sump pump?

Location. The most suitable location for a sump pump check valve is close to the floor level to minimize the volume of water that drains back at the end of each pumping cycle and it is a convenient location for easy servicing or replacement of the valve.

How high should check valve be above sump pump?

Best height ( unless owner’s manual states otherwise) is two to three feet off of the top of the sump pit. This way your sump pump motor doesn’t have to work as hard as when your check valve is in lower position. It will open easier due to the reduced weight of water above it.

How can I tell if sump pump check valve is working?

Test the Check Valve You may hear the check valve internal flap as the water surges and then stops. Once the pump drains the water, look to see if any reverses into the pit. If there are none and no leaks throughout, then your sump pump check valve installation was a success.

How do you check a check valve?

Put your hand on the valve and place your ear near to it. If you feel or hear any water running, it is a sign that the valve’s seal is leaking. Most of the time, however, you will hear and feel a gentle “click” sound as the valve closes and water will cease running through the valve as the water is shut off.

How much does it cost to replace a check valve?

Depending on the size of the system and how much it costs, most homeowners pay between $135 and $1,000. The device costs between $35 and $600, while labor costs between $100 and $400. You can expect to pay between $70 and $250 for a back water or check valve.

How do I know if I need to replace my valves?

It makes strange noises. If your valve sounds like an internet modem from 2002, that’s a sign repairs are in order. …
Material is leaking out. …
Material is jamming. …
The airlock stopped rotating.

Do check valves fail?

Swing check valves use a hinged swinging disc to block and control the movement of fluid in a system. As they are used to prevent the reverse flow of fluids or gases, any failure can lead to leakage, loss of pressure, contamination, overflow, and, in the most severe cases, complete system failure.

How do you manually open the check valve?

Before putting the valve into operation, check the manual opening stem. For automatic operation, turn the stem counterclockwise as far as it goes; turn clockwise for manual open position.

What is check valve cracking pressure?

What Is Check Valve Cracking Pressure? Cracking pressure refers to the inlet pressure level at which the first sign of flow is present. It can also be described as a measure of the pressure differential between the inlet and outlet ports of the valve when flow is initially detected.

What is a poppet check valve?

A poppet check valve incorporates a disc (normally at the end of a “sleeve” or “stem”) utilized as the checking mechanism. It is often spring loaded to help close the valve prior to fluid flow reversal. This eliminates the hydraulic shock also known as water hammer.
