What is a pole in a switch

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked).

What are the poles on a light switch?

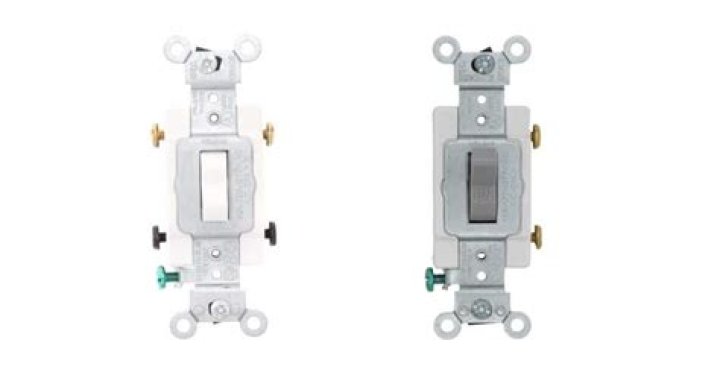

Poles: A switch pole refers to the number of separate circuits that the switch controls. A single-pole switch controls just one circuit. A double-pole switch controls two separate circuits. A double-pole switch is like two separate single-pole switches that are mechanically operated by the same lever, knob, or button.

Why do you need a double pole switch?

Double pole light switches, also known as a four-way switch, are two single pole switches put together. … This is typically used to control a circuit from multiple locations in a series of three switches on one circuit. A double pole switch can be used to control light and a fan or 2 lights on separate circuits.

What does single pole switch?

Single-pole switches have two brass terminal screws and a toggle labeled ON and OFF. … This type of light switch controls one light fixture (or electrical outlet) from a single location. When installing, always connect two hot wires to it, not two neutrals.

Do I need single or double pole switch?

Whilst a single pole socket is generally cheaper it is always preferred that customers/electricians install double pole sockets for safer isolation of the plugged in appliances.

What is a 4 pole switch?

4-Way Switches Four-way switches are used to control lighting from three or more locations. … There are four terminals that provide two sets of toggle positions on a four-way switch. Each set of terminals is one of the toggle positions. When the switch is in the up position, the current can flow through two terminals.

What is single pole vs double pole switch?

A pole refers to the number of separate circuits a switch can control, a single pole switch can operate one circuit whereas a double pole switch can control two circuits.

What is a 3-way single pole switch?

Three pole or three-way switches are used to control one or more lights or fixtures from multiple locations, such as the top and bottom of a flight of stairs. … Closer inspection reveals that while a single pole switch has two terminals, a three pole switch has three.

Can I use a 3 pole switch for single pole?

Yes it can work. 3-way switches are spdt (single pole double throw) with 3 screw terminals, and regular switches are spst (single pole single throw) with 2 screw terminals. Just pick the correct two contacts and you are good to go. .

Can u use a 3-way switch as a single pole?

To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. … 3-way switches can be converted to single pole in several configurations.

Article first time published on

Can I replace a double pole socket with a single pole?

Not necessary for socket outlets even on TT systems bajb, that regulation applies to isolation of the whole installation, ie main switch. over from double pole to single pole switching can overcome the problem, where such replacement is permissible and safe.

How can you tell if a socket is single or double pole?

The difference between a DP and SP socket is the switch, it either breaks the live in a SP socket or Live and Neutral in a DP socket SP means Single Pole and DP means Double Pole.

What are the 4 types of switches?

• SPST (Single Pole Single throw)
• SPDT (single pole double throw)
• DPST (double pole, single throw)
• DPDT (double pole double throw)

What does double pole mean?

Double pole switches are connected to two separate electric circuits. … They essentially contain 2 switches which are linked together and can complete the circuit either simultaneously or staggered.

What is a double pole switch?

A double pole double throw switch is connected to two different circuits, each input can be connected to either of the outputs with six terminals in total, the two inputs and 4 outputs. These types of switches have 3 states; open (off), circuit 1 closed and circuit 2 closed.

Is there a 5 way switch?

The 5-way Strat switch is the most common switch you’ll find in Stratocaster guitars. … Finally, in 1977 Fender made the 5-way Strat switch a standard feature in their guitars. Both 3-way and 5-way switches are wired the same. The only difference is the 5-way has a few more indents (Fig 4).

How many terminals does a single pole switch contain?

A single pole switch has two brass terminals and a ground screw.

Does a 4 way dimmer switch exist?

You can have several 4-way switches in a circuit, so long as you have two 3-ways at either end. I think you can always substitute one 3-way dimmer for one of the 3-way regular switches. When wired right, every switch can turn on or off the lights, but usually only at the level the dimmer is set to.

Is there a difference between a 2 way and 3 way light switch?

In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.

Why does my light switch have 3 wires?

The 2 wire source feeds to an adjacent switch for a different light which then feeds this switch with 2 wires. The switch in question is a single pole. From it, there is 3 wire cable that leads to a light which then connects to other lights controlled by their own switches.

When should you use a 3 pole switch?

Three-way switches are commonly used to control a light fixture from two different locations. For example, a long hallway or stairway might use a pair of three-way switches at each end so that lights can be turned on when approaching one end of the hall or stairway, then shut off from the other end.

What's the purpose of a 3-way switch?

A 3-way switch is one that allows you to control a ceiling light (or other electrical fixture) from two separate locations. Common scenarios would be 3-way switches located at both the top and bottom of a stairway, or having 3-way switches next to doors in a room with two entry points.

Do you need 2/3 way switches?

A 3-way wall switch controls a common light or set of lights from two separate switch locations. Two, 3-way switches are required in any 3-way application.

Can a 2 way switch be used as a 1 way?

Yes it can be used. You need to com and either of the other two terminals normally S1. more often than not if you ask for a one-way switch these days you’ll be given a two-way. as a two-way can be used as a one-way some manufacturers no longer make one-way switches.

What are the 3 types of switches?

The three types of mechanical switches are linear, tactile, and clicky.
