What is a plumbing flange

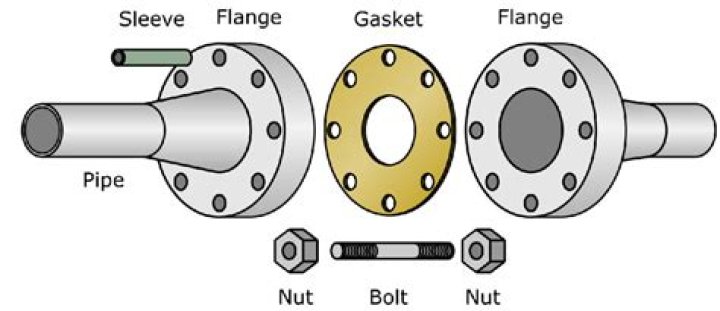

A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

What is a flange in a bathroom?

A toilet flange is typically a circular piece of material with several holes in it. Through these holes bolts are inserted which secure the flange tightly to the floor, and thus to the sewer drain pipe. The toilet is then secured snuggle to the flange.

How are flanges attached to pipes?

Socket-weld pipe flanges are typically used on smaller sizes of high pressure pipes. These flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe.

What is a flange fitting used for?

Flange connections are typically used in applications that will encounter exceptionally high pressures when using pipe or tubing with an OD over 7/8 inches. They may be bolted together to mate two sections of pipe (tube or hose), or bolted or screwed into the component to secure a flange fitting or section of pipe.

What are the types of flanges?

• Welding Neck flange. Welding Neck Flanges are easy to recognize at the long tapered hub, that goes gradually over to the wall thickness from a pipe or fitting. …
• Slip On flange. …
• Socket Weld flange. …
• Lap Joint flange. …
• Stub End. …
• Threaded flange. …
• Blind flange.

Can you install a toilet without a flange?

The flange and accompanying bolts hold the toilet firmly to the floor and keeps the seal between the toilet and the floor. Without the flange or if it is broken, he would have to attach the toilet to the subfloor with wood screws, and if the floor is rotting out, those won’t last long.

Does toilet flange go inside pipe?

Buy an inside closet flange. This toilet flange is designed to glue on the inside of the pipe or expand inside the pipe. … The flange should be sitting with the bottom edge flush with the top of the floor. If it isn’t, then you will have to cut away the old flange.

What is a PVC flange?

Sch 80 PVC Flanges Flanges are fittings that connect to pipes to allow the attachment of accessories and other items, stop the flow or increase the strength of the pipe. These discs create a tight seal when pressing two surfaces together using bolts, clamps, edges or a compressive force.

How do I know what flange I have?

You need to find the outer diameter, the inner diameter, the number of bolt holes, bolt hole diameter, and the bolt circle diameter. Bolt circle diameter (B.C.) is one of the most important measurements to make when identifying a flange.

What does the word flanges mean?

1 : a rib or rim for strength, for guiding, or for attachment to another object a flange on a pipe a flange on a wheel. 2 : a projecting edge of cloth used for decoration on clothing a jacket with flange shoulders. flange. verb.

Article first time published on

What are the two main types of flanges?

• Weld Neck Flanges. …
• Slip-on Flanges. …
• Threaded Flanges. …
• Blind Flanges. …
• Socket Weld Flanges. …
• Orifice Flanges.

How many types of pipe flanges are there?

How do they look like? The key types of flanges are the welding neck, long welding neck, slip-on, socket weld, lap joint, threaded and blind flanges. In addition to these standard flanges, some special ones exist, called Weldoflange/Nipoflange and Elboflange, swivel flange, expander/reducer flange, and orifice flanges.

What is a threaded flange?

Threaded flanges, also sometimes referred to as companion flanges / screw flanges / NPT flanges, contain a female NPT thread in the center for connection to male NPT threaded piping. … The male pipe end is joined to the flange without a weld connection required but can be sealed with a weld if necessary.

How do I choose piping flange?

ASME B16. 5 weld neck flanges with tapered hub and welding end shall be the primary selection for flanged joints in metallic piping systems of NPS 2 and larger. The individual material classes show the size range for any given service. Welding ends of weld neck flanges shall be in accordance with ASME B16.

Do you install toilet flange before tile?

5 Answers. The toilet flange needs to be on top of the finished floor. Meaning the bottom edge of the flange needs to be on the same plane as the toilet. So if your toilet sits on the tile, the flange needs to be on top of the tile too.

How do I know what size toilet flange to buy?

The 3-inch bottom is the correct size for fitting the schedule 40 pipe most frequently used in home drains. The 4 inches at the top of the flange give you a little extra wiggle room, reducing the chances that water will seep through the wax ring when flushing the toilet.

What happens if toilet flange is broken?

A toilet flange has a metal or plastic ring that holds the toilet to the floor, and when the ring breaks, it can render the toilet unusable. If the toilet rocks because the flange is no longer holding it securely, the wax ring seal can break, water can begin to seep out and problems quickly multiply.

How much does it cost to replace toilet flange?

The cost for a plumber to replace the toilet flange varies by region and service provider, but the average price range is approximately $130 to $310.

How do flanges fail?

Dirty or Damaged Flange Faces. Dirt, scale, scratches, protrusions, weld spatter on gasket seating surfaces, and warped seating surfaces provide leakage paths or can cause uneven gasket compression that can result in flange leakage. … Rapid temperature fluctuations can cause flanges to deform temporarily.

Is flange too big?

If your breast pump flange is too big you may experience: Painful nipple pinching, pulling, and squeezing. Lower breast milk production. Your nipple or areola could become white or discolored.

How do you define flange size?

• Step 1 – Start by measuring inside the flange by simply measuring the center hole. …
• Step 2 – Measure across the center of the flange. …
• Step 3 – Finally, measure around the outside diameter of the flange.

What is a Van Stone PVC flange?

Van Stone Flange – This is a two piece flange with a rotating ring that makes bolt alignment simple. … This flange has one female threaded end to connect to a male threaded fitting or nipple. Spigot Flange – While slip flanges fit over PVC or CPVC pipe, spigot flanges fit into a PVC or CPVC fitting.

What is a sink flange?

The flange in your bathroom sink is the collar that surrounds the sink’s drain. It is usually made of metal, but may be made of plastic and coated in a metallic finish. If this flange cracks or erodes, it can cause water to leak through the sink at this point.

What does flange mean in construction?

A flange is a projecting ridge, rim, collar or ring on an object such as a column, beam, pipe and so on that provides additional strength or stiffness or additional surface area for the attachment of, or to, another object. For example, flanges may be used to strengthen beams, or to connect or terminate pipes.

What is a flange in sewing?

A flange is like a thin fold of fabric sewn into a seam that adds dimension. The flange can be added at the edge of a block for extra color without adding another border, or it can added at the binding, possibly to tie together extra color between the binding and the pieced top.

Which type of flange is used in high pressure services?

Ring Joint Face (RTJ): Used in high-pressure and high-temperature processes, this face type features a groove in which a metal gasket sits to maintain the seal. Tongue and Groove (T&G): These flanges feature matching grooves and raised sections.

What are the different types of plumbing?

There are three different types of plumbing systems; sanitary drainage, stormwater drainage and potable water. Each of these systems have their own unique functions and purposes.

What is slip on flange?

Slip on flanges are a popular type of pipe flange designed to accept pipe into the bore/center of the flange for welding around both the Outer Diameter (OD) of the pipe and on the interior side of the connection. … This flange type is extremely common in lower pressure applications.

Where should a toilet flange be placed?

In a typical toilet installation, the floor flange that sits inside the drain opening below the toilet should be positioned so that its bottom surface rests flush against the finished floor or no more than 1/4 inch above or below the floor.

Is flange a fitting?

Pipe Flanges are widely used as a popular category of pipe fittings. A flange is used to mechanically connect two pipes together. … Thus, flanges are considered to be projecting or internal components which are used to support mechanical parts.

What does flange end mean?

The flange-end connection defines the way in which it is attached to the pipe. Welding and threading are the main connection types of flanges used in pipe projects. Welded flanges. This flange will be welded to a pipe or fitting with a single full penetration and welded flanges are the mostly used in piping project.
