What is a pitch in a chain

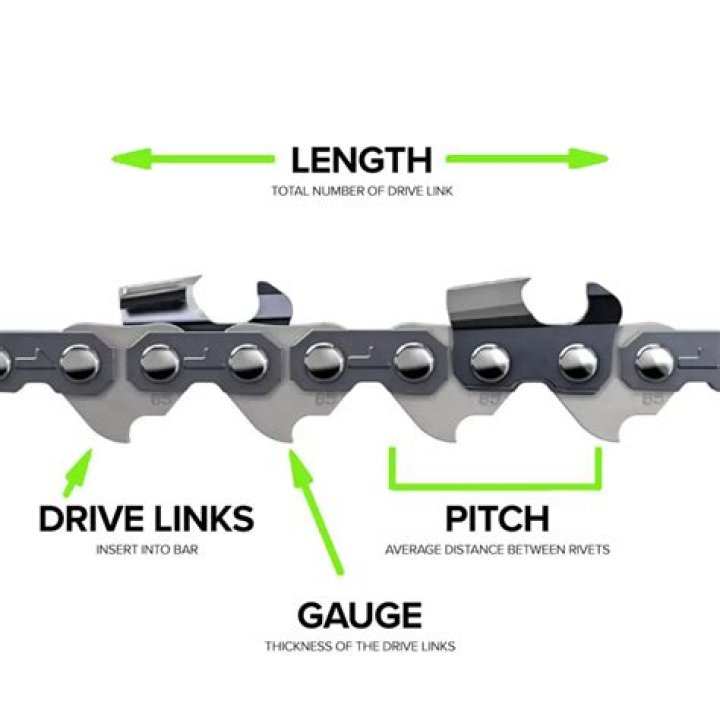

Chain pitch is the size of the chain and is defined as the distance between any three consecutive rivets divided by two. … The easiest way to determine the pitch of your chain is to look at the number stamped on the drive link.

What is the pitch of a chain link?

In terms of conveyor chain, pitch is usually defined as the distance between links, as measured from the center of the roller pin on one link to the center of the roller pin on the next link. Note that some precision link conveyors refer to the pitch as the link size.

How do you choose the pitch of a chain?

1. Selection Procedure. …
2. Determine the Class of Load. …
3. Lubricant. …
4. Note : If table 1 does not list your equipment, go by its similarity to a listed item.
5. Establish the Design Horsepower. …
6. Final Selection of Chain. …
7. Select the Large Sprocket. …
8. Determine Chain Length.

How is chain pitch measured?

To determine the pitch (chain size), you’ll need to measure the distance between any three consecutive rivets, then divide the result by 2. The rivets are the small, round pegs/studs that hold the chain segments together. Measure from the first to the third, then divide that number in half to get your chain pitch.

What is pitch in chain sprocket?

Chain size is commonly referred to as Pitch. In actuality, chain size is determined by the chain pitch. Pitch refers to the measurement from one roller-pin center to the next roller pin center of a given chain. ANSI (American National Standard Institute) chain pitch is always measured in 1/8” increments.

What is chain pitch motorcycle?

Chain pitch is measured in eighths of an inch. Motorcycle and ATV chains have a pitch number of either 4, 5 or 6. If the distance between the centerlines of the two pins in a link is 4/8th of an inch, the chain has a pitch number of 4. … Most common on dirt bikes, dual sport bikes, street motorcycles and most ATVs.

What pitch is 35 chain?

With a pitch of only 0.375″, #35 chains are versatile enough to fit within a large variety of applications.

What Chainsaw pitch is best?

Experts say the best chainsaw chain for cutting firewood is the Husqvarna High Performance 18 inches, 0.05 gauge, 0.325 pitch chain.

What is pitch and gauge?

Pitch is the distance between two consecutive rivits measured paraller to the direction of force. While gauge is measured perpendicular to the direction of the force.

What is the difference between .325 and 3/8 chain?

The three-eighths chain is a beefier saw and better suited to one that has more horsepower. It has larger teeth and a heavier duty chain, so it requires more horsepower to operate correctly. … 325-inch chain for those saws between 40 and 60 cc.

Article first time published on

How do you calculate chain pull?

The lift load for the elevation changes of the conveyor is equal to the total lift height (in feet) multiplied by the individual product weight (in pounds), then divided by the load spacing centers in feet. To determine the chain pull due to friction, multiply total moving load by selected friction factor.

How do you find the rpm of a sprocket?

The easiest way to calculate sprocket ratio is to count the number of teeth on both the driving and the driven sprockets and divide the first by the second. This ratio tells you how many times the driven sprocket turns for every revolution of the driving sprocket.

Which type of chain is used in motorcycle?

Roller chain or bush roller chain is the type of chain drive most commonly used for transmission of mechanical power on many kinds of domestic, industrial and agricultural machinery, including conveyors, wire- and tube-drawing machines, printing presses, cars, motorcycles, and bicycles.

What is pitch in conveyor belt?

Modular Belt Conveyor, Belt Thickness: 12 mm, Pitch: 50 Mm.

What pitch is bicycle chain?

All modern bicycle chains are made to the “one-half inch pitch” standard, meaning from rivet to rivet is nominally 0.5 inches.

What pitch is 219 chain?

What are the benefits of 219 pitch chain? a. Because 219 pitch chain has a smaller pitch (7.774mm), more links can occupy a given diameter of sprocket. That means a 219 sprocket with the same number of teeth as a 35 pitch sprocket will be smaller in diameter.

What is the pitch of 420 chain?

Specifications: Chain No.: 420; Pitch: 1/2″; Roller Width: 1/4″; Roller Diameter: 5/16″; Sprocket Thickness: 0.227″.

How long is 120 Link 35 chain?

Go Kart #35 Silver Pro EK 120 Link Chain 45 inches.

What is pitch in steel structure?

Pitch is the distance between two adjacent rows of rivet parallel to the direction of application of force.

What is pitch in screw gauge?

In a screw gauge, the pitch is defined as the distance traveled in one rotation of screw.

What chainsaw chain do professionals use?

Typically only professionals and experienced chainsaw users use full chisel chainsaw chains. They are typically used to cut through hardwood such as oak as their square-cornered cutting teeth are more geared up to power through the wood.

Is a skip tooth chain good?

A skip chain has fewer cutting teeth than a conventional chain which means it won’t be dragging as many teeth through the wood you’re cutting. Less drag on the chain means less power is needed to cut through the log. That means the motor on your saw runs faster which keeps it in a more efficient power curve.

What does 91 mean on chainsaw chain?

91 = 3/8 low profile pitch .050 gauge or 1.3mm. 95 = .325 pitch .050 gauge or 1.3mm. Carlton drive link codes. ​A1 = 3/8 pitch .050 gauge. A2 = 3/8 pitch .058 gauge.

What size chain is on a Stihl ms170?

MS 170 Specifications – Occasional UsePOWER SOURCEGasGUIDE BAR LENGTH (Recommended)16 in.OILOMATIC® CHAIN3/8″ PMM3CHAIN OIL CAPACITY4.9 oz.

Is my chainsaw chain dull?

When cross cutting (against the grain of the wood) a dull chainsaw chain creates fine sawdust instead of coarse strands. The saw is producing smoke even when your chain is oiled and the chain tension is correct. The chainsaw produces an uneven cut. This could mean that your chain has dull cutting teeth on one side.

How do chain conveyors work?

Chain conveyors use an endless chain both to transmit power and to propel material through a trough, either pushed directly by the chain or by attachments to the chain. The chain runs over sprockets at either end of the trough. … The load is positioned on the chains, the friction pulls the load forward.

What is a drag chain conveyor?

The principle operation of a drag chain conveyor is based on material movement using a skeletal chain and flight assembly that is drawn along the bottom section of an enclosed housing. … Slower chain speed means less wear, and less horsepower equals lower energy requirements and operating costs.

How do you measure a conveyor chain?

1. Overall width of the chain.
2. The diameter and width of the roller.
3. The thickness of the plate.
4. Overall height of the chain.

How do you slow down a chain drive?

To slow down a drive, you can either make the Driven larger or the Driver smaller. It is preferred to make the Driven larger as the horsepower rating on the drive is determined by the Driver sprocket or pulley. So if you decide to make the Driver smaller, be sure to check the HP rating of the new drive.

What sprocket is best for speed?

For more top end and faster top speed, use a large countershaft/front sprocket or smaller rear sprocket. This creates a taller gearing ratio that’s best for high speed situations without many tight turns like wide open desert racing.

How do you calculate chain speed?

Formula for Chain Speed Calculation Take chain pitch and multiply x two. Multiply above number by number of teeth on sprocket of saw. Multiply that number by saw RPM. The number you get will be chain speed in inches per minute.
