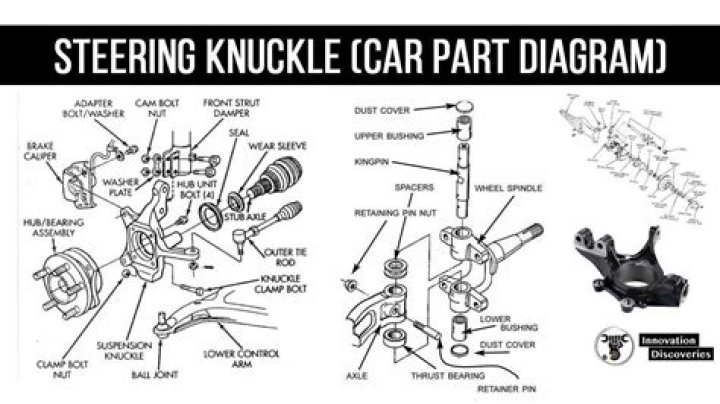

What is a knuckle assembly

The steering knuckle is the pivot point of the steering system, which allows the wheels to turn. On cars with conventional suspension systems, the steering knuckle’s spindle locates and supports the inner and outer wheel bearings.

What does a knuckle do on a car?

The steering knuckle is the pivot point of the steering system, which allows the wheels to turn. On cars with conventional suspension systems, the steering knuckle’s spindle locates and supports the inner and outer wheel bearings.

What is a brake knuckle?

It connects the wheel hub (or spindle) to the suspension. The disc brake caliper mounts to the knuckle. … There’s one steering knuckle attached to each front wheel, and its purpose is to turn your wheel when you steer.

What are knuckles on a truck?

What we’re talking about is the part of the front suspension – truck or buggy – that directly connects to the suspension links, A-arm or I-beam, and the steering tie rods. The knuckle is an oft-forgotten item, concealed behind the spinning aluminum grandeur of a high-performance wheel.

How much is a car knuckle?

A steering knuckle can cost anywhere between $45 and $910 for the part itself (labor is extra if you need to have the knuckle professionally installed). Its price tag can vary depending on the year, make, and model of the vehicle as well as the quality of the replacement part.

What is a loaded knuckle?

The Anatomy of a Loaded Knuckle Dorman Loaded Knuckles are pre-pressed, complete knuckle assemblies comprising all components needed for an easy replacement: Bearing. Knuckle.

What is the difference between a steering knuckle and spindle?

The knuckle is the part the spindle attaches to. The spindle carries the hub and bearing(s). Generally the spindle is used on non-driven wheels, but there are some where the spindle is hollow and the CV shaft extends through e.g. Some Nissan’s.

What happens if my steering knuckle breaks?

Knuckles can cause many handling problems when damaged. For example, your vehicle could begin to pull to one side, squeal when turning, and/or the steering wheel could shake or fail to return to center when driving straight.

Can a steering knuckle bend?

It might not bend at first, it might bend a little, it might bend a lot…or it might break. If a steering knuckle breaks, you’re screwed. Plain and simple.

What is steering knuckle made of?

Steering knuckles contain wheel hubs or spindles, and attach to the suspension components of a vehicle. Made from nodular cast iron, forged steel and aluminium, the components are critical to front suspension safety, so quality surface finishes, precision radii and perfect machined flatness are required.

Article first time published on

What is Hub in car?

The hub unit is a device that fills an important role in supporting a car by the wheels, and integrates the bearings and the surrounding components. There is one type of hub unit that rotates smoothly while supporting the vehicle weight, and another type that transmits the driving force from the engine to the wheel.

How much does it cost to replace a spindle on a car?

How Much Does a Spindle Cost? Spindles can cost anywhere between $75 and $400. The price largely depends on whether you’re going to get an individual spindle or a pair. The spindle’s price also varies because of the complexity of the design, which will depend on the vehicle’s make and model.

How do you know if you have a bent steering knuckle?

Look for signs of flaking coatings or corrosion on the steering knuckle with an LED flashlight. When a cast part is bent, it may disturb and loosen any coatings or corrosion that have built up on the part. Minor damage may not show visible signs and will require measuring.

What is a steering arm?

Definition of steering arm : an arm for transmitting the turning force from the steering gear to the drag link especially of an automotive vehicle.

What is tie rod end?

Tie rod ends are a part of the steering system. Tie rods connect the spindle, on which your front wheel is mounted on one end, to the steering gear mechanism on the other end. … As you steer left or right, the steering gear pushes the steering arms and tie rods left or right respectively.

What is a steering knuckle called?

Steering knuckles are variously called as knuckle, spindle, hub or upright. They come in various size and shape depending upon the vehicle. Steering knuckles are of two types : Steering knuckle with hub.

Is a spindle a wheel bearing?

A spindle is a part of a vehicle’s suspension. … Both the inner and outer wheel bearings ride on the spindle and the retaining nut on the end secures the wheel into position. On most vehicles, the front brake caliper is also mounted on the spindle.

What connects the subframe to the bottom of the steering knuckle?

A MacPherson suspension geometry consists of an integrated shock absorber and spring assembly, connecting the steering knuckle on the wheel to the frame of the car. The lower control arm allows the wheel to move up and down, independent of the subframe.

What is the hub of the wheel?

Wheel hubs are a cast or machined metal part, found between the vehicle’s suspension and the wheel. Hubs connect the axle to the wheel and allow the wheel to spin smoothly with the help of a bearing. A hub has a wheel flange on one end for mounting the brake rotor or brake drum and the wheel.

What are wheel bearings?

A wheel bearing is a crucial part of the wheel assembly that connects the wheel and the axle. It is a set of steel balls (ball bearings) or tapers (tapered bearings), held together by a metal ring. It enables the wheel to rotate smoothly with a minimum of friction.

What is a front spindle on a car?

In an automobile, the wheel spindle, sometimes simply called the spindle, is a part of the suspension system that carries the hub for the wheel and attaches to the upper and lower control arms. Spindles are carried by steering knuckles or “uprights”.

What are the signs of a bad ball joint?

• Clunking or rattling noises coming from the front suspension.
• Excessive vibration in the front of the vehicle.
• Car wanders, steering is off to left or right.
• Uneven tire wear.

What are the symptoms of a bad tie rod?

1. Inability To Steer.
2. A Squealing Sound When You Turn. …
3. Uneven, Excessive Tire Wear. …
4. Misaligned Front End. …
5. A Steering Wheel that Feels Unusual. …

What are the symptoms of a bad ball joint?

• Clunky or squeaky noises.
• Drifting to the side.
• Loose or shaky steering.
• Uneven tyre wear.

What does a steering knuckle attach to?

In automotive suspension, a steering knuckle or upright is that part which contains the wheel hub or spindle, and attaches to the suspension and steering components. The terms spindle and hub are sometimes used interchangeably with steering knuckle, but refer to different parts.

How are steering knuckles manufactured?

The knuckle is formed by forging and a bore is machined or pierced in the knuckle to be aligned with the hollow portion of the spindle. The knuckle and spindle are then welded together such as by spin or inertia or electron beam welding to form an integral unit.

What happens if hub assembly goes?

A faulty wheel hub and bearing assembly can also cause a vibration felt in the steering wheel. A faulty wheel hub and bearing assembly can also cause a vibration felt in the steering wheel. Often, the sensation will change with vehicle speed or while the vehicle is cornering.

How do I know if my wheel hub assembly is bad?

1. Snapping, clicking or popping noises when cornering or making sharp turns.
2. Grinding noise when the vehicle is moving.
3. Knocking or clunking sensation from the vehicle.
4. Wheel vibration and/or wobble.
5. Poor steering control.

How much does a hub bearing replacement cost?

It should take between 1 to 1.5 labor hours to change the wheel bearing. In total, the cost to replace a wheel bearing is around $150 to $800. This depends on if the entire hub is changed, or just the wheel bearing, which will vary depending on the car model.

What causes a spindle to go bad?

Improper Lubrication: This can lead to increased wear due to friction as well as thermal damage due to higher operating temperatures. The resulting damage to bearings can include rolling element deterioration, raceway deterioration, cage fragmentation, and eventually spindle failure.

How long does it take to replace a spindle?

Typically, it takes 2 to 3 weeks to rebuild faulty spindles. On the other hand, less complex spindles that need little work can take as few as 2-3 days.
