What is a jamb on a window

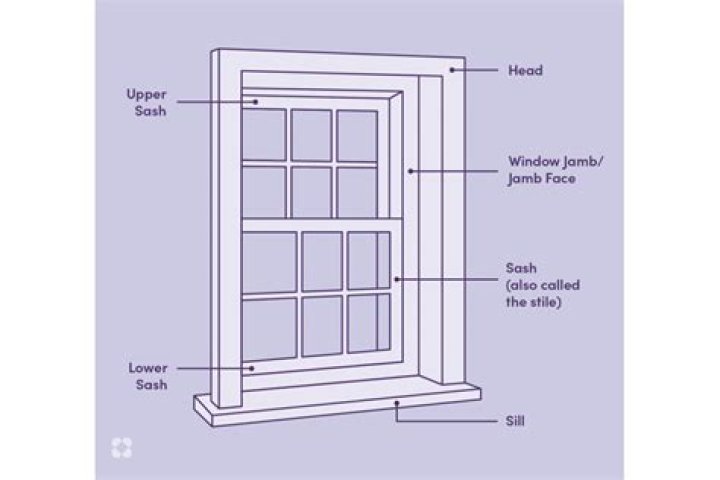

Jambs are the main vertical parts forming the sides of a window frame. Sill. A sill is the main horizontal part forming the bottom of the frame of a window. Jambliner. A jambliner is a strip which goes on the sides of a window frame that provides a snug fit for the window sash.

Do I need a window jamb?

Jambs often house tracks or rails used to manipulate operational windows. They also support latches and hardware that are used to lock the window when it is closed. Jambs are not necessarily required but are commonly used by most window manufacturers.

Where is the head jamb of a window?

A head or head jamb is the vertical component that sits at the very top of the window frame. The window sash seats against it.

What is jamb size on a window?

Originally indicating the vertical members of the frame, the term “jamb” has come to mean the frame in which a window or door sits. Jamb depth varies between window manufacturers — vinyl windows typically are 2 5/8” to 3 3/8” thick while wood windows range from 3 1/2” to 4 9/16”.

What is jamb in door and window?

The term ‘jamb’ typically refers to the vertical up-right components that form the sides or of door or window frames. … As with doors, a casing will generally be used to conceal the joint between the frame and the walls.

What's an extension jamb?

Definition of extension jamb : a jamb extending beyond the head of a door or window usually to the ceiling.

What type of wood is used for window jamb?

Any wood (pine/poplar) will do.

What material is used for window jambs?

The material used to make a window jamb can vary, and may be wood, plastic, vinyl, or metal. Window jambs may be painted to match the trim on a structure, or left unfinished, depending on the material and the aesthetics of the structure.

Do I need extension jambs?

When installing vinyl or other windows and sometime doors, you may need to add an extension jamb installation. This is particularly difficult in older homes that have thicker walls or newer homes when the extension jambs do not come pre-applied.

What is wood around windows called?

The terms window casing and trim are used interchangeably to describe the decorative wood that surrounds the perimeter of the window to cover the space between the wall and jamb.

Article first time published on

What do you call the trim around a window?

Casing refers to the trim used around interior or exterior windows and doors. Casing is designed to cover the unfinished gap between walls and door or window frames.

What is the outside trim around a window called?

Exterior window casings are the moldings that go around your window frames. They are installed outside the house, covering the space between the window frame and wall.

Is a door jamb the same as a door frame?

Door jamb versus door frame A door jamb is an individual section of a door frame. Two side jambs make up the vertical components of the door frame and the head jamb is the top horizontal component. Together, the jambs (along with mullion) comprise the door frame.

Which side is the door jamb?

The door jambs are the vertical components of the door frame on either side of the door. You may also hear them described as the hinge jamb (for the side with door hinges) and the strike jamb (the side that contains the strike plate and works with the locking mechanism).

What is jamb column?

: a free or engaged column decorating the jamb of a door opening or window opening (as in medieval architecture) — see esconson.

Can I use MDF for window stool?

-thick MDF, and some paintable 1×3 lumber for the stools. We recommend wood for the stool because unlike MDF, it’ll withstand a little moisture from window condensation. We used pine, but poplar, maple and birch would also work well. … sheet of MDF.

What is a door jamb and casing?

Door head: The horizontal component found just above the door, with two grooves the door jambs are built to fit into. … Jamb casing: Also called an architrave, this is a decorative trim mounted to the wall around the frame. It’s generally separate from the frame itself, meaning it can be removed or replaced easily.

How much space should be between jamb and door?

TEST SLAB FIT IN JAMBS Looking at the hinge side of the slab when it is closed, there should be 1/16″ gap between the slab and hinge jamb and1/8″ between the slab and the head and strike jamb.

What is the standard door jamb thickness?

Standard interior door jamb thickness on pre-hung doors is 4-9/16 inches. The door jamb is the frame that installs in the wall and supports the door via hinges. This thickness is designed for installation in a standard two-by-four wall (constructed by studs that are actually 1½ inches by 3½ inches).

How wide is a 2x6 door jamb?

The maximum door jamb width required is 8 inches. 2×6 width: 5 ½ inches.

Where is the window sash?

A window sash is the part of a window that moves and holds the glass panes together. The sash fits inside the window frame, which is attached to the house. The sash will vary slightly depending on the type of window. For example, on a double hung window there is an upper and lower sash that move up and down.

What is the difference between molding and trim?

This is a common question, and the answer is pretty simple. TRIM is a general term that refers to all molding in a home (i.e. window casing, door casing, baseboards, etc.). MOLDING (or moulding) is a broad classification of millwork (any type of woodwork that is produced in a mill …

What are the plastic strips on windows called?

Window glass spacers or space bars are strips of plastics, metals or foams that separate, support and help seal in functional gasses that are injected between the panes of glass in a window. Spacers are bonded between glass panes with various sealing materials to help create an air-tight cavity.

What is window molding?

Quite simply, it’s a moulding profile which frames (or trims) a door or window. … Casing is functional as well as decorative. The main purpose of casing is to surround all doors and windows, covering any space or gap left between the drywall and frame.

What is window explain the types and anatomy of window?

A window consists of a frame area and body area that let the user view and interact with content in an app. A window can appear onscreen alongside other windows, or it can fill the entire screen (see Full-Screen Mode). … Users can also click and drag the edges of the window to resize it, if the window supports resizing.

Do I need to replace door jamb?

You can replace any exterior door in your home without removing the jamb if the jamb is in good shape and not out of square. You just need the same size of door without the hinge cutouts. You don’t need special tools, you can cut the hinge mortise with a chisel and a hammer. … Leave the hinges on the door.

What is the wood around the door called?

What Is an Architrave? The architrave (sometimes also referred to as jamb casing) is part of the door casing and refers to the decorative trim that sits around the door frame. It is purchased separately to the frame, which is what the wood around the door frame is called.
