What is a floor load width

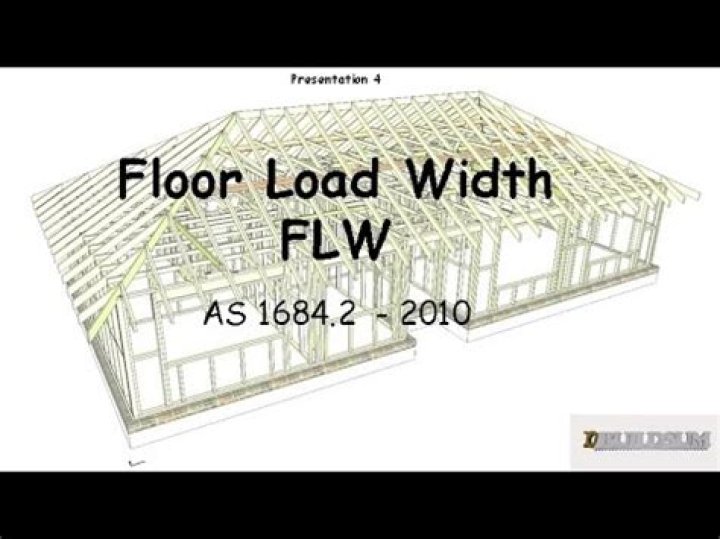

Whether the bearers are supporting load bearing walls or only floor loads, the area of the floor supported by an individual bearer must be determined. This is referred to as the floor load width (FLW). Where the bearer supports load-bearing walls the type of roof covering also needs to be determined.

What is floor load width?

Whether the bearers are supporting load bearing walls or only floor loads, the area of the floor supported by an individual bearer must be determined. This is referred to as the floor load width (FLW). Where the bearer supports load-bearing walls the type of roof covering also needs to be determined.

What is roof load width?

Roof Load Width (RLW) The size of the roofing material is needed to calculate how much load the roof members and substructure need to support, and therefore what size the underlying timber parts need to be.

What floor loads mean?

n. The amount of weight a structure’s floors can bear, including the dead weight and the live load.

What is a floor joist in construction?

Floor joists are horizontal structural members that span an open space, often between beams, which subsequently transfer the load to vertical structural members. These joists, part of the floor system, carry the weight of everything inside a room, including walls, furniture, appliances, and even people.

How is floor loading calculated?

Add an allowance for partitions (normally added on top of the imposed floor loading, for example you might have a total Imposed Floor Load = 3.5kN/m2, made up of 2.5kN/m2 + 1.0kN/m2 for partitions)

Can a floor hold 1000 pounds?

Most of us don’t know how long our floor joists are. … Let’s say you have a three foot wide safe that weighs 1,000 pounds, and your floor joists span 12 feet (which is typical). This three foot by 12 foot section of the floor was designed to safely carry a live load of 3 x 12 x 40 PSF, which equals 1,440 pounds.

How do you find the load width of a roof?

Roof load width (RLW) = rafter span (if placed at midspan) otherwise ½ span1 + ½ span2. RLW × (½ u/p span left + ½ u/p span right + spread of fan strut). Hanging beams are required if ceiling joist span is excessive.

How do you calculate floor load capacity?

Determining Load Limits Look for a stamp on the joist that indicates the lumber’s species and grade. Use a design value table to find the Fb value for your floor joists. As an example, consider a room with a floor area of 10 feet by 11 feet, 2 inches built with No.

What is typical roof dead load?

Normally, the dead load of a typical asphalt shingle roofing system with wood frames is 15 pounds per square foot. A clay-tiled roof, on the other hand, has a dead load of 27 pounds per square foot.

Article first time published on

How does staad define floor loads?

Floor load is used in situations where the basic entity (plate, solid or surface) which acts as the medium for application of that load, is not part of the structural model. Where: f1 f2 = Global coordinate values to specify Y, X, or Z range.

What is tributary width?

The tributary width for B1 is the distance from the centerline of the beam to half the distance to the next or adjacent beam, and the tributary area for the beam is the area bordered by the tributary width and the length of the beam, as shaded in the figure.

How do you calculate structural load?

Dead Load Calculation for a Building Dead load = volume of member x unit weight of materials. By calculating the volume of each member and multiplying by the unit weight of the materials from which it is composed, an accurate dead load can be determined for each component.

What are floating decks?

A floating deck, also called a free standing deck, is simply a deck that’s not attached to any structure, including (of course) your house. To understand how to build a floating deck, here are a few basics. As an independent structure, a floating deck has a few advantages over an attached deck.

Can decking be laid on concrete?

Even if your patio is in terrible shape, you can deck over it. Cracks, craters and seasonal movement along cracks are no problem. … (depending on the thickness of your decking and whether or not you put spacers under the sleepers). So any door thresholds adjoining the patio must be at least that far above the concrete.

What size bearers and joists for a deck?

The bearers have to carry the weight of the entire deck and whatever is put on top of it, so they need to be strong. A 140×45 treated pine bearer will usually do the trick. Every 1.2 metres, a 90×90 H4 treated pine post will be needed.

What size are floor joists?

Floor joists range from 2×8 to 2×12. It is less common to see joists that are 2×6, even though they are included in joist span tables. Older homes are more likely to use 2×6 for joist framing. There is no “typical” floor joist size because there are so many variables regarding the floor framing.

Can you use 2x10 for floor joist?

2×10 floor joists can span up to 20′. However, this is for 12” o.c. spacing for live loads that are 30 psf. … With 16” spacing, a floor joist can span up to 14′ as long as it is not cantilevered and terminates with support on either end. If the joists are 24” apart, then one 2×10 joist can span up to 11′ 5”.

What size lumber do you use for floor joists?

Lumber graded as #2 is the most common choice for floor joists and other framing lumber. It has more knots and defects than higher grades, but usually not enough to cause significant loss of bending strength.

Can furniture be too heavy for floor?

The answer is that, absolutely, weight can cause a floor to collapse. Often, the older the building, the less the floor will be able to support, because many materials weaken with age. Even within a floor, there are wide variations in weight limits.

Can my floor support 3000 lbs?

A floor that ‘feels’ firm may be able to carry much more load than is necessary. Floors are usually designed for a nominal 30psf to 40 psf live load. Example: a 10×10′ room designed for 30 psf can handle 3,000 pounds of people, evenly distributed across it.

Can a floor collapse?

Can a House Floor Collapse? Yes, multi-story houses can collapse through the floor. Usually, this happens because there is too much weight and not enough support in the center. Bottom floors can collapse if the ground beneath them gives way.

What is maximum floor load?

Floor load capacity is the total maximum weight a floor is engineered to support over a given area. In the U.S. it is expressed as pounds per square foot. Floors are engineered to carry a maximum static load and a maximum dynamic load that can’t be exceeded without the risk of compromise to the structure.

How much weight can 2x10 floor joists support?

Each 2×10 will support 1,200 lbs.

How much load can a 2x6 support?

According to the Codes, a 2×6 on edge with the weight pressing through 5.5” of wood will support approximately 53lbs per linear foot. So, an 8-foot length will support about 424lbs. However, a short span 2×6 on edge can support between 600 and 900lbs depending on wood species, grade, and other factors.

How much weight can a plywood floor support?

Span RatingThicknessMaximum Live Load16 oc19/32 inches185 pounds24 oc19/32 inches270 pounds20 oc23/32 inches240 pounds32 oc7/8 inches295 pounds

How much weight can a mezzanine floor hold?

How much weight can a mezzanine floor hold? Clearly, the mezzanine load rating for office space will be different from the load rating for heavy industrial use. As an approximate guide, a standard mezzanine floor for office use is designed to take around 360kg per square metre.

How much weight can my upstairs floor hold?

After some research, I discovered that an upstairs floor in a modern home (this may not apply to older homes) is rated to hold between 30 and 40 lbs. per square foot.

How far should a roof overhang?

Overhangs can vary from a few inches to a few feet depending on preference; however, the suggested width of an overhang is between 12” and 18” for eaves and no more than 8” for rakes. That said, overhangs can extend as far as 2′ without the need for external supports.

What is the distance between rafters?

But they do tend to space rafters in one of several industry-standard increments, typically either 12, 16 or 24 inches apart. These spacing intervals are measured “on center,” meaning that the measurement is taken from the center of one rafter’s horizontal surface to the center of the next rafter.

How much will it cost to roof a 3 bedroom flat in Nigeria?

The building materials for roofing includes roof truss, roofing sheets and ceiling (PVC ceiling or Asbestos ceiling). Total cost of roofing for a 3-bedoom bungalow is estimated between ₦700,000 and ₦1 million.
