What is a flame hardening

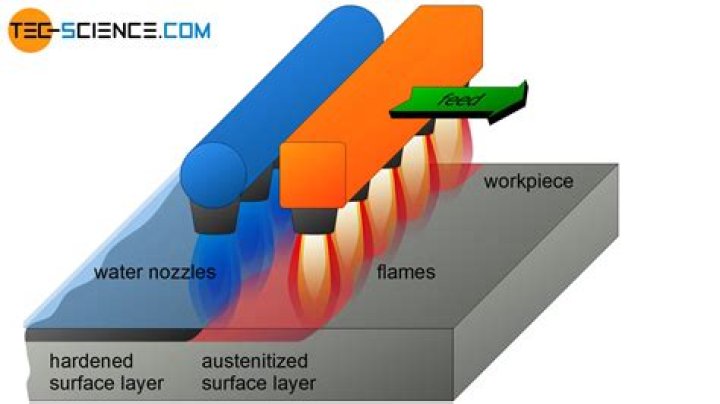

Flame hardening is a heat treatment process where oxyfuel gas flames are directly impinged onto the gear-tooth surface area to be hardened which is then subjected to quenching. It results in a hard surface layer of martensite over a softer interior core. Its cost is considerably less than induction hardening.

Why do we use flame hardening?

Flame hardening is a common surface hardening method. Metal surfaces, such as steel, are heated with a high-temperature flame and then quenched. The result of flame hardening is a hard surface that is more resistant against wear and corrosion.

What is the heating method for flame hardening?

Flame hardening is a surface-hardening method that involves heating a metal with a high-temperature flame, followed by quenching. It is used on medium carbon, mild or alloy steels or cast iron to produce a hard, wear-resistant surface.

What is flame hardening and induction hardening?

Induction hardening involves using induced electrical currents to very rapidly generate heat via hysteresis, usually in a workpiece made from medium to high carbon steel. Flame hardening uses oxy-fuel burners to heat the workpiece via conduction.

Can you flame harden 4140?

Flame hardening is a surface hardening process used on medium carbon mild or alloy steels (such as 1045, 4140, 4340), or cast irons, to produce a hard wear resistant surface (case) on the part.

What are the advantages and disadvantages of flame hardening?

Flame hardening can be done of any shape like flat, circular, irregular shapes, etc. Very large forgings and castings can be flame hardened where other methods, even induction hardening fails or arc uneconomical. Mass distortion is absent. The equipment cost is much less than for induction hardening.

Can 1045 be flame hardened?

General characteristics of Carbon Steel 1045 C1045 is a versatile medium carbon engineering steel that can be through hardened to, as well as being flame or induction hardened. The steel can be readily welded and machined providing correct procedures are followed.

Why induction hardening is required?

Induction hardening is a heat treatment process carried out to enhance the mechanical properties in a localised area of a ferrous component. The resultant hardened area improves the wear and fatigue resistances along with strength characteristics. … Induction hardening is used to strengthen a specific area of a part.

How do you flame harden steel?

Using your blow torch or a furnace with a bellows, heat your steel until it glows red-hot. You will need to watch your steel carefully as it goes through several different color changes until it passes blue-hot and finally becomes red-hot.

What is the hardening process?

Hardening is a metallurgical metalworking process used to increase the hardness of a metal. The hardness of a metal is directly proportional to the uniaxial yield stress at the location of the imposed strain. A harder metal will have a higher resistance to plastic deformation than a less hard metal.

Article first time published on

Which type of flame is used for brazing soldering and flame hardening?

For brazing, soldering and flame hardening which of the following flame is used? Explanation: for brazing, soldering and flame hardening carburizing flame is used.

Which of the following is an application for flame hardening?

Sr. no.Flame HardeningInduction Hardening9.Applications:-Large gear shafts, lathe ways, spline shaft etcApplications:-Piston rods, cams, shafts etc

How does age hardening work?

In age hardening, metal is heated to a high temperature, which varies according to the materials being used and the desired properties of the final result. Alloying materials are added and allowed to diffuse through the metal until the heated metal is supersaturated with them.

Which quenching medium is used for flame hardening?

Grey Cast iron is the most commonly used material in lathe bed. The properties of grey cast iron before and after the flame hardening process for different quenching medium is studied and analysed. The three quenching medium used are water, polymer and Sherol.

How can I Harden 4140 at home?

Heat the steel to 1,675 degrees Fahrenheit in a heat treat furnace or forge and hold it at that temperature for approximately 30 minutes per inch of length to normalize the steel. Normalizing removes any stresses within the steel that could create cracks when hardened.

How hard can you harden 4140?

Surface hardness achievable is 600 to 650HV. Atlas 4140 can be surface hardened to 58HRC (typical value).

Is carburizing the same as case hardening?

Carburizing, also referred to as Case Hardening, is a heat treatment process that produces a surface which is resistant to wear, while maintaining toughness and strength of the core. This treatment is applied to low carbon steel parts after machining, as well as high alloy steel bearings, gears, and other components.

What is case hardened steel?

Case-hardening or surface hardening is the process of hardening the surface of a metal object while allowing the metal deeper underneath to remain soft, thus forming a thin layer of harder metal at the surface. … The term face hardening is also used to describe this technique, when discussing modern armour.

How hard can 1045 get?

AISI 1045 steel is a medium tensile steel supplied in a black hot-rolled or normalized condition. It has a tensile strength of 570 – 700 MPa and Brinell hardness ranging between 170 and 210.

Can you quench 1045 in water?

1045 is a water or oil quenched metal. The recommended quenching temperatures are 1550° F for water and 1575° F for oil. A wide range of mechanical properties can be obtained by tempering at different temperatured between 700° F and 1300° F Tempering below 700° F should be avoided.

What is a depth of hardened layer by flame hardening of steel?

Introduction to Flame-Hardening: The hardened depth could be between 0.8 to 6 mm, or even more, depending on the fuel gas, air or oxygen, design of flame head, duration of heating, hardenability of steel, quenching medium and method of quenching.

What is the difference between Case hardening and induction hardening?

While case hardening processes a large number of workpieces at the same time, induction hardening focuses on the individual workpiece. With induction hardening, components are hardened workpiece by workpiece. For case hardening, “batch by batch” would be a better description.

Can you flame harden mild steel?

On the downside, mild steels are generally harder to work with when it comes to only heat treatment and quenching. It is possible to do it, but there would be little to no change. Due to its low carbon and alloy elements content, mild steel does not form a martensite structure when quenched after being heated.

Which metal is used to harden steel?

Chromium is the metal used to harden the stainless steel.

Does heat harden steel?

Depending on the temperature and composition of the steel, it can be hardened or softened. To make steel harder, it must be heated to very high temperatures. The final result of exactly how hard the steel becomes depends on the amount of carbon present in the metal.

Is induction hardening expensive?

It is readily machinable, low cost, and due to a carbon content of 0.45% nominal, it may be induction hardened to 58 HRC +. It also has a relatively low risk of cracking during treatment.

Can you induction harden cast iron?

Induction Hardening A minimum combined carbon content of 0.40 to 0.50% C is recommended for cast iron to be hardened by induction, with the short heating cycles that are characteristic of this process.

How do you harden teeth with gears?

Depending on the size of the gear, the required hardness pattern, and tooth geometry, gears are induction hardened by encircling the whole gear (external or internal) with an induction coil (the so-called “spin hardening”) or, for larger gears, hardening them tooth-by-tooth with either gap-by-gap or tip-by-tip heat- …

What is device hardening?

Device hardening simply refers to the process of reducing vulnerabilities in your security devices. It is a necessary step that ought to be taken even before the devices are installed in the network, so that when they are finally in use, they do not have any potential loopholes which can be exploited by hackers.

What are the types of hardening?

Each metal hardening process includes three main steps: heating, soaking and cooling the metal. Some common types of hardening include strain hardening, solid solution strengthening, precipitation hardening, and quenching and tempering.

How does heat treating hardened metal?

Hardening: When a metal is hardened, it’s heated to a point where the elements in the material transform into a solution. Defects in the structure are then transformed by creating a reliable solution and strengthening the metal. This increases the hardness of the metal or alloy, making it less malleable.
