What is a finishing washer

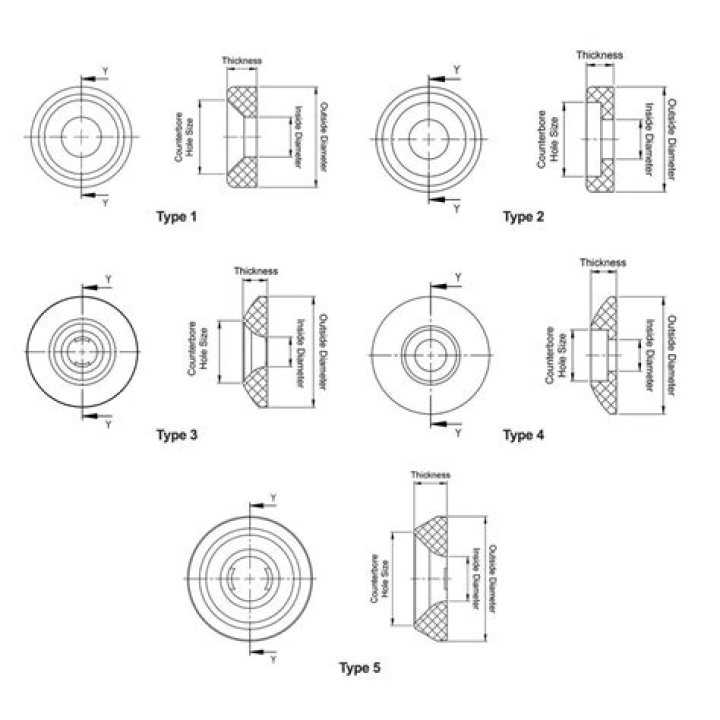

Finishing washers, also referred to as countersunk washers, provide a flush surface and are custom manufactured in several common styles including: 90 degree, angle, flanged, un-flanged and rolled flange. … Finishing washers assure a lasting bond that can be easily unfastened for repair without damage to the substrate.

What is a finishing cup washer?

Finishing Cup Washers are used to provide a finish and smooth look where the fastener head is flush with the top of the finishing cup washer. Used primarily for their aesthetic look, they are also used under the head of flat or oval head countersunk screws.

What are cup washers used for?

Standard cup washers are used to cover bolts or nuts for safety or anti-tampering requirements. Cup washers are also used to compress insulation and sealant materials. Additionally cup washers are also utilized as spring retainers.

What screws to use with finishing washers?

Finishing cup washers are commonly used with tapered head screws, such as flat head or oval head, to create a professional finish on the installation surface.

What are flat washers?

Plain washer (or “flat washer”) A flat annulus or ring, often of metal, used to spread the load of a screwed fastening. Additionally, a plain washer may be used when the hole is a larger diameter than the fixing nut.

What is C washer?

C-washers are designed to slide in and out of position on a bolt or shaft in a partially completed assembly. … They can also be used as a retention device on a grooved shaft to keep components in place.

What is screw cup washer?

Cup washers are used with countersunk head self-tapping screws and woodscrews. They help to distribute pressure evenly to avoid cracking and damage.

Why are washers called Belleville?

The Belleville spring is named after its founder, Julian F.Belleville, around the mid 19th century. They were designed to take on really heavy loads, with the steel that is used to make them. Belleville designed the washer to be a spring as well.

Which way do cup washers go?

Mount the washer so its cup points toward the connection (away from the bolt head or nut). Mounting it upside down (reversed), adds little clamping force to the connection.

What are fender washers?

A fender washer is a flat washer with a larger outer diameter in proportion to its center hole. They are made from a thinner gauge metal than most flat washers and are designed to spread the load on thin sheet metal. Interestingly, they are named after their use on automobile fenders.

Article first time published on

What is a flange washer?

Flange washers are washers with a raised up inside diameter with a flange base. This allows them to be used in applications where a large bearing surface is needed but the material it is resting on is soft and can be damaged easily. Our flange washers are made in the USA.

When should you use a flat washer?

Flat washers are used to increase the surface area in order to more evenly distribute the force applied with tightening the fastener. Lock washers are used as a means of creating tension during tightening in order to help keep the nut from working loose later.

What is M20 washer?

External Diameter (D) Tolerance+0/-0.62mmFor Use With Thread SizeM20 (20mm)Internal Diameter (B) Tolerance+0.33/-0mmInternal Diameter (ID)21mmManufacturing StandardDIN 125

What is the difference between a flat washer and a spring washer?

Plain and spring washers are both used to distribute the load of a fastener. The difference lies in their shape. Plain washers are flat, whereas spring washers are curved. … Spring washers are unique because they provide an axial load that counters vibrations and, thus, prevents fasteners from loosening.

What is cap screw?

n. A long-threaded bolt, usually with a square head, used in fastening machine parts.

What is a brass washer?

Brass washers are created from alloyed copper, which makes them a favorable choice for plumbing, heating and electronic applications. … Brass washers are also highly resistant to tarnishing and provide substantial tensile strength.

What is Panhead screw?

Pan head screws are a common head type of non-countersunk screw head used in wood screws, self-tapping screws, self-drilling screws, and machine screws. They have wide heads, a flat bearing surface, high vertical, chamfered, or curved sides, and a flat or slightly domed top surface with a recessed socket.

Are glass rinsers worth it?

You can buy and install glass rinsers in your kitchen pretty easily, and they’re good at removing dirt and residue that your dishwasher can’t. The same is true for glasses and mugs at a bar, so regardless of what you want one for, you’ll probably get a good value for your money.

How do you put a screw in a washing machine?

To use your washer and bolt properly, first insert the bolt into the washer. Next, slide the bolt and washer into the mounting hole. Once the bolt is threaded into the hole, begin turning the head of the bolt using the appropriate sized wrench. Tighten the bolt down to the washer until the head contacts the washer.

What is the function of Tenon in milling fixture?

The components of a milling fixture are: (i) frame to absorb vibration and chatter; (ii) jaws or clamps to impart ruggedness in gripping; (iii) tenons and T-bolts for clamping the fixture to the milling table; and (iv) setting block to identify and position the cutter accurately in relation to the workpiece.

What is the use of serrated washer?

Serrated lock washers increase the friction between the bolt head/nut and the mating surface. They do this by gripping into the mating surfaces. Serrated lock washers are installed between the bolt head/nut and the mating surface. The bolted joint is then tightened in the same way as an unsecured bolt.

Can you reuse a conical washer?

Yes, Belleville conical washers can be reused, repeatedly, as long as they are not damaged. Overloading and over-torquing these washers can wear them out over time. As long as they are used properly and checked before reuse, these fasteners can be used again and again to complete projects.

Can you stack spring washers?

Stacking. Multiple Belleville washers may be stacked to modify the spring constant (or spring rate) or the amount of deflection. Stacking in the same direction will add the spring constant in parallel, creating a stiffer joint (with the same deflection).

How do conical washers work?

Conical spring washers maintain a high degree of tension and act as shock absorbers on vibrating parts, which keeps assemblies tight. These Belleville washers also compensate for thermal expansion and contraction on bolted joints.

What is the difference between a fender washer and a regular washer?

A fender washer, though similar in shape to a standard washer, differs in that the outside diameter is traditionally much larger in proportion to the center hole. … With this design, a fender washer can be placed under the head of a bolt or nut to help distribute forces applied when tightening.

What is the difference between a flat washer and a fender washer?

Fender Washers have a larger outside diameter as compared to the inside diameter. Therefore fender washers distribute the load to a relatively larger area compared to flat washers. Fender Washers have applications in automobiles, plumbing, sheet metal, electrical applications, attaching signboards, panels, and drywall.

Are fender washers stainless?

MaterialStainless SteelOutside Diameter2 InchesExterior FinishStainless SteelFastener Size1/2″Size1/2″ x 2″ OD (100 pcs)

Do you need washers with flange nuts?

On a serrated flange nut, the serrations are angled such that they keep the nut from rotating in the direction that would loosen the nut. Because of the serrations they cannot be used with a washer or on surfaces that must not be scratched. … Flange nuts (and bolts) are widely used in automobiles and electronic products.

Do you need washers with flange bolts?

Addition of steel washers to a fastener system is recommended to improve translation of torque input into bolt preload. Washers provide a smooth bearing surface, reducing friction between nut and flange. This effect is greatest when washers are through-hardened.

Are flange bolts better than washers?

Standard washers are typically softer than the nuts and bolts that they are used with and can often plastically deform under the high compressive stress that they must sustain. … Flange headed nuts and bolts do not suffer from this effect since the washer face is as strong as the bolt/nut itself.

Do you use a lock washer with a flat washer?

In general, I use a flat washer under a split locking washer to protect the base material, plating, or coating from damage caused by the split washer action. I may also use the flat washer to distribute the fastener load or ensure the split washer does not fall or grind into a larger clearance hole feature.
