What is a driveway culvert

What is a Driveway Culvert? Driveway Culverts are used in vehicle access areas that tend to have problems with high water crossing. … When culvert pipes are installed properly, water will flow through the pipe and continue past the driveway so that access will no longer be affected.

What is the purpose of a culvert?

Culverts function primarily as hydraulic conduits, conveying water from one side of a roadway or similar traffic embankment to the other; therefore, culverts serve the dual purposes of functioning as hydraulic structures as well as acting as traffic load bearing structures.

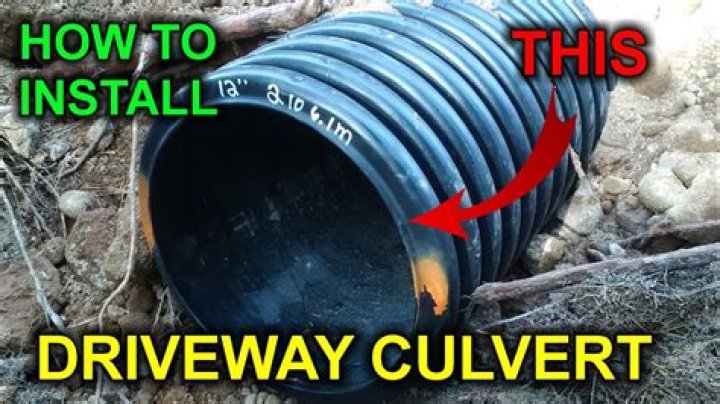

How do you make a driveway culvert?

1. Check with your local building code department to see if you need a permit to build a driveway culvert. In most municipalities you will need to get a driveway permit. …
2. Purchase your culvert pipe. …
3. Dig out the drainage ditch. …
4. Backfill the dirt over and around the pipe.

How much do culverts cost?

The cost of installing the driveway culvert can be between $800 to $8000, depending on the complexity of the installation and the driveway terrain.

How long should a driveway culvert be?

Culvert length should be at least 4 feet wider than the width of the driveway, but should not exceed a distance equal to 10 times the individual culvert diameter.

How long does a culvert last?

Methods to Estimate Service Life Culvert service life will vary significantly depending on environmental conditions, but the typical expected service life of metal culverts can be 25 years, 50 years, or longer, depending on wall thickness and site environmental condi- tions.

What does a culvert look like?

Pipe culverts are the most common, either circular or elliptical. … Pipe-arch culverts look like a half-circle and are useful in sites with low clearance. Box culverts are box-shaped and are popular in road design because the shape provides a rigid structure that is appropriate in areas with poor soil conditions.

How much weight can a culvert handle?

A standard plastic culvert pipe will hold a maximum weight of 40,000 lbs according to reports. Considering that the average car weighs around 4,000 lbs, that means roughly 12 cars can fit within one standard plastic culvert pipe.

What size culvert do I need?

We take the average depth multiplied by the average width to obtain the cross-sectional area and divide by four to determine the rough diameter of pipe needed to pass the average storm. The diameter of pipe(s) used must add up to the total diameter needed without using a pipe taller than the average depth.

What is culvert ditch?

A culvert is a closed conduit under a roadway or embankment used to maintain flow from a natural channel or drainage ditch. A culvert should convey flow without causing damaging backwater, excessive flow constriction, or excessive outlet velocities.

Article first time published on

Can you build over a culvert?

Buildings should not be sited over the top of new or existing culverts. Building regulations (Approved Document H) stipulate the distance from which a watercourse or sewer should be laid from new foundations.

Which is better plastic or metal culvert?

Plastic will probably last longer if it isn’t abraded or squished by jerks in 4X4s. Metal less likely to float away but gets squished ,too.

How do you keep a culvert from washing out?

If the soil around any culvert is weak or eroded away, inject Prime Resins grout resin around the culvert to fill in voids and stabilize the soil. Preserve your culverts so they can do the job they were designed to do – channel water safely from one place to another!

How deep is a culvert?

Cover the culvert with soil to a depth of at least 12 inches, or at least 1/2 of the diameter for larger culverts (Figure 6). For example, a 36-inch culvert should have a soil cover at least 18 inches in depth.

Where do culverts go?

hide Authority controlOtherMicrosoft Academic National Archives (US)

Why are culverts corrugated?

Corrugated pipes are used where flexibility is an important factor other than strength and durability, such as in storm drains and culverts. Flexibility makes corrugated pipes more useful and suitable for a wide variety of uses compared to rigid and non-corrugated pipes.

What material are culverts made of?

Culverts are primarily made with reinforced concrete, corrugated metal, and more recently, solid- wall, profile wall, and reinforced plastic. The strength and physical characteristics of the materials depend upon their chemistry and the interrelationship between the constituent materials.

How bad is a culvert?

Culverts limit the movements of migratory fish like the critically endangered European eel, disrupting their access to food and spawning areas. When fish are blocked from making these essential journeys, entire freshwater ecosystems suffer.

How long will a metal culvert last?

The conclusions of the study support the 75-year minimum service life for 16 gauge Aluminized Type 2 CMP in culvert applications. Culvert applications are significantly more aggressive than storm sewer applications because of bedload conditions.

How long will galvanized culvert pipe last?

Galvanized pipes have an average lifespan that ranges between 40 and 50 years. However, pipes that are well-built, well-installed, and well-maintained can easily exceed the typical lifespan. Read below to learn more about the life span of galvanized pipes.

What size does culvert pipe come in?

Culvert is available in either solid or perforated. Stock sizes available in 6″ to 24″ diameters; larger sizes to 96″ diameter available by special order.

What is a cross culvert?

Cross culvert means a culvert which crosses beneath the traveled way of street, such that its ends are exposed on the embankment of each side of the street.

How much water can an 18 inch culvert handle?

Carrying Capacity of Sewer Pipe (gallons per minute)Size of pipe (inches)Decline per 100 ft of pipe (ft)15740181818116828602423965874

How much fall should a culvert have?

Culverts should have a slope along its length of 1/2 to 1 inch per foot.

What does load capacity H25 mean?

H25/HS25 = 20,000-lb wheel load, 40,000-lb axle. Covers designed to meet the basic requirements for these loads need only be tested with a proof load to meet these minimums. If a specification requires H20/HS20 loading it simply requires a cover meet the design load of 16,000 pounds per wheel without a safety factor.

What is the pipe under a driveway called?

A driveway culvert pipe helps keep the flow of water moving along the drainage ditch near the roadway. If you’re installing a driveway culvert, check with your local building codes administrator for specific guidelines.

How deep should drain pipe be under driveway?

1 inch per 10 foot section of pipe is a handy number that works. Less steep, water does not flow well. More steep, any debris in the water tends to be left behind rather than carried along…and the pipe plugs eventually.

How wide should driveway be?

How Wide Are Residential Driveways? Primarily, most professionals recommend that you install a 10 feet to 12 feet wide driveway. The standard driveway width for an SUV or conventional pickup truck is 10 feet. Anything less than 10′ wide will likely present difficulties for drivers, even in smaller vehicles.

What is the pipe in my driveway?

5 Answers. It’s a cleanout for the sewer line. You can shorten it to grade level, but you cannot remove or pave over it. You’ll probably never need it, but if you do, you’ll want quick access to it.

What are the types of culverts?

• Pipe culvert (single or multiple)
• Pipe-Arch culvert (single or multiple)
• Box culvert (single or multiple)
• Arch culvert.
• Bridge culvert.
• Metal box culvert.

What is an open culvert?

Open-top box culverts are square or rectangular cross-section structures used to get the trail across water and to convey water from the trail onto the adjacent forest floor. They are usually constructed on site from dimensional treated lumber and placed at an angle to the trail.
