What is a double top plate

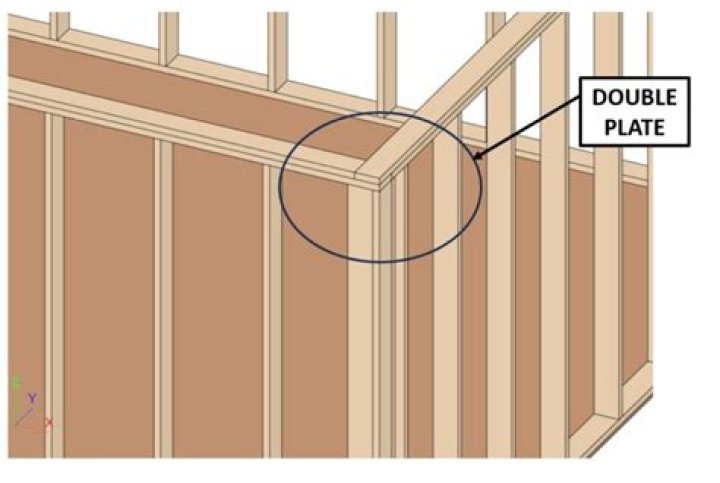

The top plate is the upper horizontal framing member of a stud wall. … A second top plate, also known as a “double plate” or “very top plate” is applied in the field to lock together intersecting walls.

Does double top plate mean load bearing?

I know a double top plate usually means it’s load bearing, but parallel with trusses means it’s usually not load bearing.

Do I need a double top plate for a shed?

A double top plate is a requirement when building larger garages or houses, but since most sheds don’t exceed 16 feet in any direction, you can skip the double top plate for a single, unbroken top plate. … Build your walls flat on the floor of the shed.

Do all walls need a double top plate?

Wood stud walls shall be capped with a double top plate installed to provide overlapping at corners and intersections with bearing partitions. … Joints in plates need not occur over studs. Plates shall be not less than 2-inches (51 mm) nominal thickness and have a width at least equal to the width of the studs.

What is a top plate?

A Top Plate is the continuous timber beam on top of the walls that supports the roof structure by carrying the vertical forces from the rafters to the wall studs. WIKIPEDIA ENTRY FOR WALL PLATE.

Is a top plate load bearing?

If a joist is running perpendicular to the wall, or happens to fall directly above/below the wall, it can be load bearing. If there’s a single top plate, the wall most likely isn’t load bearing, unless the wall uses deeper studs than 2×4 (such as 2×6). Expose the wall over a doorway or pass-through.

Why use a double top plate?

Bearing walls use the double top plates to transfer loads from joists above through the wall studs, through the sole plates, through the floor system to the beams, columns, foundations and footings. Joints in top plates have to be located over the studs. … Joints in the top plates should be offset by at least one stud.

Can you frame 24 on Center?

They are allowed for economy and insulation. Stud Spacing – In many cases, it is acceptable by code to in- crease stud spacing from 16 inches to 24 inches on-center. The 1995 International Code Council’s One- and Two-Family Dwell- ing Code allows studs up to 10 feet long to be spaced up to 24 inches on-center.

Is it cheaper to build your own shed?

If you’ve been wondering is it cheaper to build your own shed, you’ll discover that yes, it is less expensive to build your own shed than to purchase a pre-built shed. … Typically, it won’t take many specialty tools to build the shed.

Why does my shed wobble?

Sheds generally wobble due to the strength of material used to build it, the quality of craftsmanship, or damage. Damage can be caused by weathering, insects, or physical trauma.

Article first time published on

What is double plate?

The top plate is the upper horizontal framing member of a stud wall. … A second top plate, also known as a “double plate” or “very top plate” is applied in the field to lock together intersecting walls.

What is the top board on a wall called?

Timber framing Also called a wall plate, raising plate, or top plate, An exception to the use of the term plate for a large, load-bearing timber in a wall is the bressummer, a timber supporting a wall over a wall opening (see also: lintel).

Can you have a triple top plate?

RE: maximum number of top plates My supervisor approved, the contractors could not argue, and a triple top plate has been the norm ever since, for trusses spanning over 48′.

Do I need a header in a non load bearing wall?

A doorway in a non-load-bearing wall doesn’t need a structural header. You’ll place just one or two 2x pieces of lumber flat across the top of the opening. This framing lumber is used to support the finished wall material and provide solid nailing for any trim around the door.

What does header mean in construction?

A header in the construction and engineering world is a beam over an opening that disperses the structural load to the outside of the opening to keep structural integrity. Otherwise, the load from the roof, floor, or whatever is above the opening can lead to stress that can cause cracks, shifting, or even worse.

How thick are top plates?

End joints in top plates shall be offset not less than 24 inches (610 mm). Joints in plates need not occur over studs. Plates shall be not less than 2-inches (51 mm) nominal thickness and have a width not less than the width of the studs.

Do top plates need to be continuous?

It’s best to have one continuous top and tie plate, but that’s not possible on longer walls. When multiple plates are necessary, keep top plate end joints a minimum of 24 in. … from the end of the wall as well. If the two end joints are not kept apart, they create a hinge point, which weakens the wall.

How do you nail a top plate stud?

Lay the spacer on top of the sole plate and stand the next stud up against it. Drive two nails at approximately a 55-degree angle down through the stud and into the sole plate. Remove the spacer and drive in a single toenail from the other side. Repeat the process for the remaining studs.

How do you connect two bottom plates?

1. Join two bottom plates to create a long wall by lapping each over half of the bottom of a regular stud, so they butt tightly at the midpoint of the stud.
2. Hammer two 16d nails through each bottom plate into the stud with a hammer or framing nailer.

What is the purpose of headers?

The header describes the payload and its information to help devices know how the data should be handled. 2. A header or heading is text at the top of a page in an electronic document or hard copy. For example, in Microsoft Word, a header could be created in a document to display the page number of each page.

What are studs attached to?

Studs are attached to plates, and studs and plates combined form a wall panel.

What does it mean to put walls up?

Having a wall up means not letting your other half in at all, no matter what. Therefore, you don’t involve your partner in your decisions even in the most minimal way. When people are so used to being independent and doing things on their own, it’s hard to make that shift of entering a partnership.

Can you frame a wall in sections?

When you layout your studs, put a stud at each end of both 12′ sections. Once you raise the walls, nail the two studs in the center (at the end of the wall sections) to each other. Run the top top-plate at least 2 feet onto either wall.

Do you need a permit to build a shed?

This means that you do not need to get a permit from your Local Planning Authority in order to install a shed in your garden. Planning permission usually relates to constructing outbuildings yourself. … Storage sheds and hobby sheds count as Permitted Development structures, whereas sheds for residential use do not.

How much would it cost to build a 20x20 building?

The overall cost of adding a 20×20 room to your home depends entirely on what you plan to use the room for and what features it needs. Most homeowners pay a general contractor between $42,000 and $88,000 for the materials and labor required to build an addition of this size.

What size shed is most common?

• Small (10”x12” or 8”x12”): Do you have a green thumb — or have a spouse that thinks they do? …
• Medium (10”x16” or 8”x16”): It’s safe to say, this is the typical East Coast homeowner’s best size shed to build. …
• Large (12”x20” or 12”x24”): A shed so massive, you’ll sublet space to your neighbors!

Why are House studs spaced 16 on center?

When you put studs on sixteen inch on center four foot and eight foot material will break on the studs like it will with two foot on center and add an extra stud per four foot. What this accomplishes is to make the wall covering material more stable and less likely to warp and distort over time.

How far apart should a stud be?

The general spacing for wall studs is 16 inches on center, but they can be 24 inches.

How far apart should 2x6 studs be?

Studs in walls supporting a floor and roof above can be 2×6 spaced up to 24 inches on- center rather than 2×4 spaced up to 16 inches on-center. Total cost (material and labor) for framing with 2×6 studs spaced 24 inches on-center is similar to that for framing with 2×4 studs spaced 16 inches on-center.

How can I make my shed frame more sturdy?

Using nuts and bolts instead of the standard screws is always a good idea since the former is a lot more difficult to break. In addition to increasing the durability of your garden shed, these components will also make them more secure. You can strengthen these structures by adding extra connectors.

How can I make my shed stronger?

1. Start with a Solid Foundation. Whether you choose to build your own shed, hire a contractor to build one, or buy a prebuilt shed, the first thing you’ll have to determine is what type of foundation you’ll need to support it. …
2. Protect Against Pests. …
3. Design a Resilient Roof. …
4. Control Interior Temperatures.
