What is a DockPanel in WPF

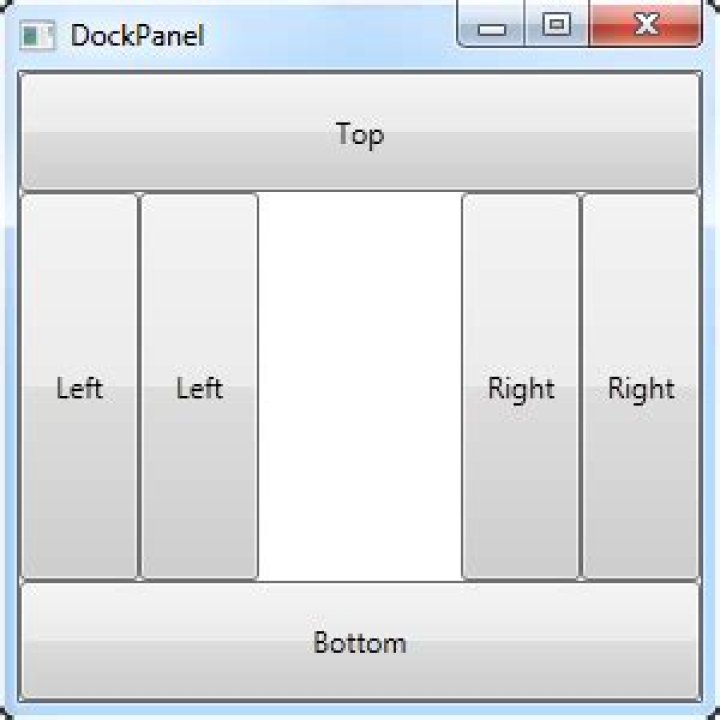

A DockPanel is a panel where each child element docks to one of the four edges. DockPanel enables docking of child elements to an entire side of the panel streching it to fill the entire height or width.

What is a DockPanel?

The DockPanel control defines an area where you can arrange child elements either horizontally or vertically, relative to each other. The DockPanel position child controls based on the child Dock property, you have 4 options to Dock, left (Default), right, top, bottom.

What does DockPanel LastChildFill false in DockPanel means?

Property Value true if the last child element stretches to fill the remaining space; otherwise false . The default value is true .

What is the difference between StackPanel and DockPanel?

StackPanel vs. For example, the order of child elements can affect their size in a DockPanel but not in a StackPanel. This is because StackPanel measures in the direction of stacking at PositiveInfinity, whereas DockPanel measures only the available size.

How can we dock an element to the center of the DockPanel?

The dock side of an element is defined by the attached property DockPanel. Dock . To dock an element to the center of the panel, it must be the last child of the panel and the LastChildFill property must be set to true.

Which is default docking in DockPanel?

By default, elements inside the DockPanel dock towards the left and the last element inside the panel expands to fill the remaining space inside the panel.

What is a viewbox in WPF?

A Viewbox resizes the control nested within it. With its Stretch attribute, we resize the element to fill the entire Viewbox. This is an easy way to provide a resizable, scalable interface. First, drag a Viewbox to your Window—it will be nested within the default Grid.

Can WPF applications be built without XAML?

But WPF without XAML is possible. You don’t even need Visual Studio installed for this, just the . NET CLI and the Developer Command Prompt. Drop these two files in a folder and run msbuild and then you can run the file in the Bin directory.

What is WPF ItemsControl?

ItemsControl with data binding Like pretty much any other control in WPF, the ItemsControl is made for data binding, where we use a template to define how our code-behind classes should be presented to the user.

What is the only difference between StackPanel and WrapPanel in WPF?

The only difference between StackPanel and WrapPanel is that it doesn’t stack all the child elements in a single line; it wraps the remaining elements to another line if there is no space left.

Article first time published on

What WPF means?

Windows Presentation Foundation (WPF) is a free and open-source graphical subsystem (similar to WinForms) originally developed by Microsoft for rendering user interfaces in Windows-based applications. WPF, previously known as “Avalon”, was initially released as part of . NET Framework 3.0 in 2006.

What is WPF canvas?

A Canvas panel is used to position child elements by using coordinates that are relative to the canvas area. … Child elements are placed on positions set by the Canvas Left, Top, Right, and Bottom properties. Margin does work partially. If Left property of Canvas is set, Right property does not work.

Is WPF platform independent technology?

WPF however is DPI independent. So if you have two monitors with different DPI settings, Hydrology Studio automatically adjusts itself to the hardware its running on. It’s built on top of DirectX, (commonly used in high-tech computer games) which can take advantage of new graphics cards as they come out.

Can WPF be targeted to Web browser?

WPF only runs on windows. You can make a type of wpf application called xbap which runs in a browser.

What is frame in WPF?

The Frame class in C# and the <Frame> element in XAML represent a Frame windows control at run-time and design-time respectively. … The WPF Frame control using XAML and C# supports content navigation within content. A Frame can be hosted within a Window, NavigationWindow, Page, UserControl, or a FlowDocument control.

What deployment modes are available with WPF?

XCopy Deployment. XCopy deployment refers to the use of the XCopy command-line program to copy files from one location to another. …
Windows Installer. …
ClickOnce Deployment. …
Deploying Standalone Applications. …
Deploying Markup-Only XAML Applications. …
Deploying XAML Browser Applications.

What is uniform grid?

The UniformGrid control is a responsive layout control which arranges items in a evenly-spaced set of rows or columns to fill the total available display space. … If no value for Rows and Columns are provided, the UniformGrid will create a square layout based on the total number of visible items.

What is DataTemplate WPF?

DataTemplate is about the presentation of data and is one of the many features provided by the WPF styling and templating model. For an introduction of the WPF styling and templating model, such as how to use a Style to set properties on controls, see the Styling and Templating topic.

What is ObservableCollection in C#?

An ObservableCollection is a dynamic collection of objects of a given type. Objects can be added, removed or be updated with an automatic notification of actions. When an object is added to or removed from an observable collection, the UI is automatically updated.

What is the full form of XAML?

Extended from. XML. Extensible Application Markup Language (XAML /ˈzæməl/ ( listen)) is a declarative XML-based language that Microsoft developed for initializing structured values and objects.

What is the parent XAML tag of WPF page?

The’UserConrol’ is the parent xaml tag of a Silverlight page. All other tags are authored under UserControl tag. Developers are given a facility to implement new custom controls and create re-usable user controls.

Which of the following layout is not available in WPF?

Table layout is not available in WPF.

How do you draw a rectangle in WPF?

To draw a rectangle, create a Rectangle element and specify its Width and Height. To paint the inside of the rectangle, set its Fill. To give the rectangle an outline, use its Stroke and StrokeThickness properties. To give the rectangle rounded corners, specify the optional RadiusX and RadiusY properties.

Which panel would be most appropriate to display child elements in a single line either horizontally or vertically?

StackPanel arranges its child elements into a single line that can be oriented horizontally or vertically. StackPanel is typically used to arrange a small subsection of the UI on a page. You can use the Orientation property to specify the direction of the child elements. The default orientation is Vertical.

What is the use of StackPanel in WPF?

A StackPanel allows you to stack elements in a specified direction. By using properties that are defined on StackPanel, content can flow both vertically, which is the default setting, or horizontally.

What is WPF .NET core?

Windows Presentation Foundation (WPF) is a user interface framework for building desktop applications. Implementing Extensible Application Markup Language (XAML) to define and script views, it has become the standard for Windows application user interfaces. NET Core. …

What is replacing WPF?

Both Windows Forms and WPF are old, and Microsoft is pointing developers towards its Universal Windows Platform (UWP) instead. UWP is an evolution of the new application platform introduced in Windows 8 in 2012.

Is WPF worth learning?

Yes WPF is worth learning. If you look at the use of WPF currently it is the preferred approach to develop desktop applications on windows. It is used by lot big enterprises ,so that itself demonstrates the popularity of WPF.

How do you draw a line in WPF?

To draw a line, create a Line element. Use its X1 and Y1 properties to set its start point; and use its X2 and Y2 properties to set its end point. Finally, set its Stroke and StrokeThickness because a line without a stroke is invisible. Setting the Fill element for a line has no effect, because a line has no interior.

How do I drag and drop in WPF?

Identify the element that will be a drag source. …
Create an event handler on the drag source that will initiate the drag-and-drop operation. …
In the drag source event handler, call the DoDragDrop method to initiate the drag-and-drop operation. …
Identify the element that will be a drop target.

What is a canvas in C#?

A Canvas contains a collection of UIElement objects, which are in the Children property. Canvas is the only panel element that has no inherent layout characteristics. A Canvas has default Height and Width properties of zero, unless it is the child of an element that automatically sizes its child elements.
