What is a diminished image

If the size of the image formed is smaller than the object, the image is said to be diminished.

Why is an image diminished?

If an image is smaller than the original object it is called diminished and if it is larger it is called magnified. Diminished Image: … If the image is formed on opposite side of the principle axis as the object it is said to be inverted. All real images formed by lenses or mirrors are inverted.

Which form of image is diminished?

The image formed by a convex mirror is always diminished and erect. Convex mirrors form real images when the object is right on the mirror surface.

How do you tell if an image is diminished?

so, if the height of the image so formed is less than that of the height of the object or value of m is less than 1, then the image is diminished and when the height of image is greater than height of the object or m>1 , then a magnified image is formed.

How do you know if an image is enlarged or diminished?

1. If the height of the image is more than that of the object,the image is enlarged.
2. If the height of the image is same as that of the object,the image is of same size.
3. If the height of the image is smaller that that of the object,the is diminished.

Which lens always produces a diminished image?

Answer: The concave lens always produces the diminished image.

What do you mean by diminished?

transitive verb. 1 : to make less or cause to appear less diminish an army’s strength His role in the company was diminished. 2 : to lessen the authority, dignity, or reputation of : belittle diminish a rival’s accomplishments. 3 architecture : to cause to taper (see taper entry 1 sense 1) a diminished column.

Is magnification enlarged or diminished?

The numerical value of magnification is greater than 1 indicating that the image formed is bigger than the object, i.e., enlarged.

What is the difference between highly diminished and diminished?

diminished means decreased in size , etc so highly diminished means an object which is highly decreased in size. hope it helps!!!

How do you know if its magnified or reduced?

A magnification of 1 (plus or minus) means that the image is the same size as the object. If m has a magnitude greater than 1 the image is larger than the object, and an m with a magnitude less than 1 means the image is smaller than the object.

Article first time published on

What is diminished image and mirror?

A concave mirror gives a magnified and erect image of a nearby object whereas a convex mirror gives an erect and diminished image.

Do convex lenses form diminished images?

c) Concave, |f|=2m. d) Convex, |f|=2m. Hint: A convex lens can form both real and virtual images which are magnified in size and inverted compared to the object. … The images formed are virtual, erect and diminished.

Are real images always diminished?

The image formed by a concave lens is always virtual, erect and diminished. The image formed by a concave mirror can be real or virtual, enlarged or diminished, and erect or inverted, depending upon the distance of the object from the mirror. The image that can be obtained on a screen is called a real image.

What is the difference between magnified and enlarged?

As nouns the difference between enlargement and magnification. is that enlargement is the act of making something larger while magnification is the act of magnifying; enlargement; exaggeration.

What does it mean if M is negative?

To sum up, a negative M means that our Y value decreases as X increases.

What is the meaning of inverted and erect?

If the image formed is upside down w.r.t the object , it is said to be inverted. Real images are always inverted. If the image is upright (not upside down) w.r.t. the object, it is said to be erect.

What is an example of diminish?

Diminish is defined as to make something seem smaller or less important. An example of diminish is to downplay the achievement of receiving a law degree from Harvard.

How do you use the word diminish?

1. The medicine caused my headache to diminish.
2. They didn’t want to diminish my work, but they had decided to publish another article in the paper.
3. My bank account began to diminish when I made several large purchases. …
4. As the rain began to diminish, we headed out to the park.

Is diminished is a size?

Explanation: Diminished image’s size is smaller than the size of the object, whereas the size of a magnified image is larger than the object. … The diminished image is usually formed in front of the mirror and the magnified image is usually formed behind the mirror. 3.

Which lens always produces virtual and diminished images?

A concave lens always forms a virtual, erect and diminished image between the F and 2F of the lens.

Which lens produces virtual diminished images?

Answer: A Concave lens always produce a virtual and diminished image.

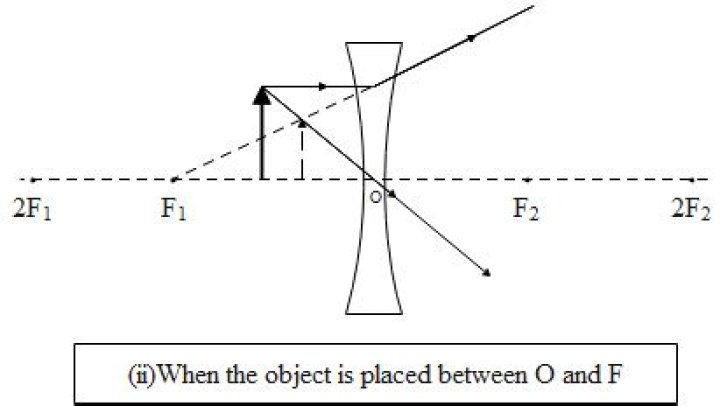

What kind of lens would form an erect and diminished image of an object?

The concave lens always forms a virtual, erect, and diminished image as we can observe in the ray diagram which is provided below.

What is enlarged image?

Enlarged image: An enlarged image is the image greater in size than the actual one. We know that the image formed by the plane mirror is of the same size. Convex mirrors form virtual and smaller size images. … When the concave mirror is placed very close to the object, a magnified and virtual image is obtained.

What does erect mean in physics?

The word erect means upright or straight. Hence, an image formed by a mirror or a lens is said to be an erect image if it is upright, ie, not inverted. For example, image formed by a plane mirror is always erect.

What is highly diminished?

highly diminished means an object which is highly decresased in size.

Which mirror can give an erect and enlarged image of the object?

The images formed by a convex mirror are always erect and enlarged.

How can you tell if a mirror is magnifying?

1. If the magnification is equal to 1 then the image is of same size as the object.
2. If the magnification is more than 1 then the image is magnified.
3. If the magnification is less than 1 then the object is diminished.
4. The positive sign of magnification states the image is virtual while a negative one states a real image.

How do you tell if an image is real or virtual?

A real image occurs when light rays actually intersect at the image, and is inverted, or upside down. A virtual image occurs when light rays do not actually meet at the image. Instead, you “see” the image because your eye projects light rays backward. A virtual image is right side up (upright).

What is difference between concave and convex mirror?

A concave mirror is a spherical mirror with an inwardly curved reflection surface, whereas a convex mirror is a spherical mirror with an outwardly bulged reflecting surface.

Is U positive in concave mirror?

Since as object is always placed to the left side of a mirror, therefore, the object distance (u) is always negative. The images formed by a concave mirror can be either behind the mirror (virtual) or in front of the mirror (real).

How do you tell if a mirror is concave or convex?

If the inner side of the spherical mirror is reflecting, it is called a concave mirror. If the outer side of the spherical mirror is reflecting, it is called a convex mirror. Concave mirrors can form inverted and real images and also virtual and erect images.
