What is a countersunk bolt

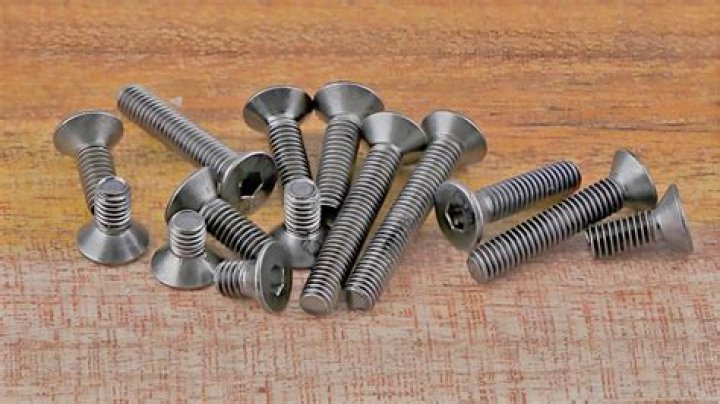

Countersunk Bolts are flat headed bolt fasteners with hex sockert drive into the head. Countersunk bolts have a cone type neck with flat head. Flat Head Hex Socket Bolts, Flat Head Socket Cap Bolts are other alias of hex head bolts.

What is the difference between countersunk and dome headed bolts?

A domed head has a round top with a flat underside. Unlike a countersunk screw, a domed head screw sits above the work surface and is used when a more decorative finish is required.

What is the difference between countersink and countersunk?

What is the difference between countersink and countersunk? – Quora. Countersunk is a inverted conical shape head of bolt, screw or rivet. This type of head is used when we need flush surfaces in assemblies. A Countersink is a conical hole cut into a manufactured object, or the cutter used to cut such a hole.

How can you tell if a screw is countersunk?

A countersunk screw head is characterized by its ability to rest flush with the surface into which it’s installed. The head essentially “sinks” into the workpiece’s surface. If you inspect a countersunk screw head, you’ll notice that it tapers towards the shank.

What is a screw with round head called?

Button Head – Rounded head most often used in socket driven screws. Becoming more common with Torx / Six-lobe drives as well. Fillister Head – Smaller diameter and higher profile than round or pan heads allows for deeper slot. Flat Head (82 degrees) – Standard countersunk flat head screw.

Why is it called countersink?

3 Answers. Etymology: counter- prefix, apparently in a sense akin to 8 b, the hole being the counterpart of that which is to be sunk in it. Thanks. So the screw is sunk into the countersink.

Why are countersunk screws used?

Why Countersunk Screws Are Used With traditional screws, the screw head will protrude out. And if you close a door that’s secured with protruding screw heads, it will stress both the door and the frame. Countersunk screws solve this problem by allowing the door to sit flush against the frame.

How do I know what size countersink to get?

You will want to choose a countersink that is larger than the bolt size of the hole. Countersink diameter = 1.5 x Bolt Size Hole Diameter. Example: 1/4″-20 Bolt – Multiple the diameter (. 250) x 1.5 = 0.375.

Can you countersink MDF?

When fastening any type of MDF, drill and countersink pilot holes to prevent mushrooming [Photos right]. Even with a pilot hole, driving a screw into MDF will raise fibers around the screwhead and blow out chips on the bottom face.

What does double countersunk mean?

DOUBLE COUNTERSUNK SCREW HEAD Improved design on the countersunk head to give additional head strength and assist countersinking.

Article first time published on

Why are holes countersunk?

Countersinking is done to insure that flat head screws sit flush to the work piece. A countersink produces a conical hole matching the angle of the screw so that when the screw is fully engaged the head will sit flush or slightly below the surface. … Countersinks have a greater range of applications and angles.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

What is a screw without a point called?

Machine screws have no points and are intended to use in holes that are already tapped or with a nut. They are threaded along the entire shaft are sold in threads per inch.

What is a screw with a flat bottom called?

If it’s got a nut, with a flat bottom at the end of the shank, it’s not a screw – it’s a bolt! … Oval-head screws, also called “pan heads”, can be seen on the surface, but are not as highly visible as round-head screws, used in decorative applications, such as furniture design.

Do you need a countersink?

For soft woods, like pine, a countersink may not be needed, as you can usually just drill a wee bit longer to get the head flush. But for hardwoods, countersinks are a must if you want the screw head flush, or to hide it completely below the surface by placing wood filler or a plug above it.

What are the two main reasons to use a countersink?

The Screw is Hard to Turn. The vee section of the wood screw pushes away the wood as it is turned. …
Want to Hide Screw. …
Do Not Want Protruding Screw Hole. …
Want to Avoid Cracking the Wood. …
Want Project to Look Nicer. …
Want to Avoid Gouging Wood. …
Want to Help Position Screw.

What angle are countersunk screws?

Countersinks have a countersink angle of 90° (and for US standard 82°) for countersinking screws, e.g. the countersink angle for rivets is 120°. For the flat countersink, the countersink angle is 180°.

What are 60 degree countersinks used for?

60-degree countersinks cut conical holes featuring 60-degree angles at their front tip into workpieces, allowing countersunk bolts, screws, or rivets with 60-degree angles to be fastened in them.

What is countersink operation?

COUNTERSINKING, COUNTERBORING, AND SPOTFACING are three machining operations used to enlarge the opening of a hole. In countersinking, a conical, reamerlike tool is used to cut a tapered enlargement at the opening of a hole for receiving the head of a fastener, for receiving a center, or for deburring.

Is MDF stronger than plywood?

MDF is ideal for cutting, machining and drilling as it does not chip easily. On the other hand, plywood is a much stronger material, which can be used for doors, floors, staircases and outdoor furniture. It is easier to create curved surfaces with plywood since it bends easily.

Can you screw into plywood?

Plywood is used in most construction projects. … Putting screws into plywood is not difficult but care should be taken not to split the wood. There are many different types of plywood and screws. This procedure can be used with most combinations.

Can you countersink with normal drill bit?

Instead of using a drill bit that both drills the pilot hole and creates a countersink divot, you can opt to make a pilot hole with a regular drill bit and then swap your bit for a countersink drill bit to create the countersink. Once that’s done, switch the drill bit for a screw bit and screw in your screw.

How many flutes does a countersink have?

All Drill Countersinks have 4 flutes. Plain Type High Speed Steel Combined Drill and Countersinks are designed to produce accurate center holes in components which require machining between centers.

How do you countersink without a bit?

If you are out on the job and find yourself without a countersink bit, this method will work in a pinch. Take your Philips Head bit and place it in the spot where the screw will go. Start the drill and move it around in a circular motion, widening the hole as you go until you get the desired size.

What does self countersunk mean?

ST: Self Tapping; Allows screwing into the material without having to drill a pilot hole, although one can be used if necessary. CSK: Countersunk. SCT: Single Thread, Course Thread.

What is the difference between single and twin thread screws?

The key difference is that a single start thread has a singular continuous thread that spans along the whole body of the screw. Alternatively, twin start threads have two threads that run the length of the screws body.

What are spax screws made of?

304 Series Stainless Steel: SPAX® construction screws made of 304 series stainless steel provide a premium level of corrosion resistance against red rust over SPAX® HCR® and HCR-X™ coatings and other applied coatings on threaded fasteners.

Is standard for countersunk screw?

This Indian Standard ( First Revision ) which is identical with ISO 2010:1994 ‘Countersunk slotted raised head screws (common head style )— Product grade A’ issued by the International Organization for Standardization ( ISO ) was adopted by the Bureau of Indian Standards on the recommendations of the Bolts, Nuts and …

What is screw tapping?

Tapping screws are considered externally threaded fasteners that “tap” their own mating threads in metallic and non-metallic (such as plastic) materials. Some screws require a hole (exact hole size is often important), while others drill their own hole (“self drilling”).

What are Brad point bits used for?

The Brad Point Drill Bit offers precise drilling in soft and hard wood and can be used for through-holes and pocket holes. Its extremely sharp drill bit with a centring tip allows for exact hole positioning. Tear-free holes are produced by high-quality shoulder cutters with precise edges.

What are small screws called?

Hex bolts have small threads and a smooth shank, and may be plain steel for interior projects or stainless steel or galvanized for exterior use. Wood screws have a threaded shaft and are used to attach wood to wood. These screws can have a few different times of thread.
