What is a concrete Groover

Look inside tooled joints or sawcuts and you will see the concrete is cracked—The joint did its job and controlled where the concrete cracked. … Joints are most often hand-tooled into sidewalks, driveways and patios and sawcut into floors, highways, and city streets.

When should you groove concrete?

Timing is very important. Joints should be sawed as soon as the concrete will withstand the energy of sawing without raveling or dislodging aggregate particles. For most concrete mixtures, this means sawing should be completed within the first six to 18 hours and never delayed more than 24 hours.

How deep should a concrete groove be?

Joints should be spaced about 10 feet and a maximum of 15 feet. When using joint groove for contraction joints, the joint should be a minimum depth of 1/4 thickness of the slab. Saw-cut joints should be done within four to 12 hours after the concrete has been finished.

Why are grooves in a concrete slab?

In inclement weather, the grooving allows for the displacement of water between the concrete surface and the vehicles’ tire tread. This improves water drainage, reduces the risk of hydroplaning, and increases vehicle control under adverse weather conditions.

What is a hand Groover?

MARSHALLTOWN Control Joint Hand Groovers are lightweight concrete tools that cut long straight joints ideal for grooving concrete projects both inside and outside the home. … This concrete tool is Made in the USA with Global Materials.

How long after pouring concrete should you cut it?

For most concrete work, cutting should take place within the first 6 to 18 hours and never beyond 24 hours. Smaller early-entry saws are available, which may allow cutting to begin within a few hours after placement.

What happens if you don't cut concrete?

Cutting too early can mark the pavement surface as well as cause joint raveling. Late sawing can result in random concrete cracks. Shallow cracks aren’t sufficient to prevent uncontrolled cracking while deep cuts are excessively labor intensive and undermine the aggregate interlock in the concrete.

Are concrete expansion joints necessary?

Expansion joints are virtually never needed with interior slabs, because the concrete doesn’t expand that much—it never gets that hot. Expansion joints in concrete pavement are also seldom needed, since the contraction joints open enough (from drying shrinkage) to account for temperature expansion.

What makes concrete crack?

A piece of concrete in the open air usually shrinks during hardening. This shrinkage is due to the evaporation of part of the water contained in the concrete. Cracking occurs when shrinkage forces become greater than the strength of the concrete.

Why do they put lines in concrete driveway?

To prevent sidewalks from cracking in random spots and breaking apart, builders make lines in sidewalks. … The technical term for sidewalk lines is contraction joints. Contraction joints are placed in fresh concrete before the concrete dries and has a chance to create its own joints, which we call cracks.

Article first time published on

When should you float concrete?

Float the concrete when you’re done grooving and edging (Photo 6). Floating removes the marks left by edging and brings the surface one step closer to a final finish. You may have to bear down on the float if the concrete is starting to harden.

Why we do groove cutting?

The purpose of the Groove Cutting is to weaken the slab along the approved line so that the slab cracks there instead of somewhere else. … Their purpose is to distribute the load evenly between slabs thereby protecting the concrete along the joints.

What is the difference between expansion joints and control joints?

In building materials, a control joint is used to control cracking while an expansion joint is designed to handle structural movement. … A control joint can be formed during placement of the building material or cut after the material is placed.

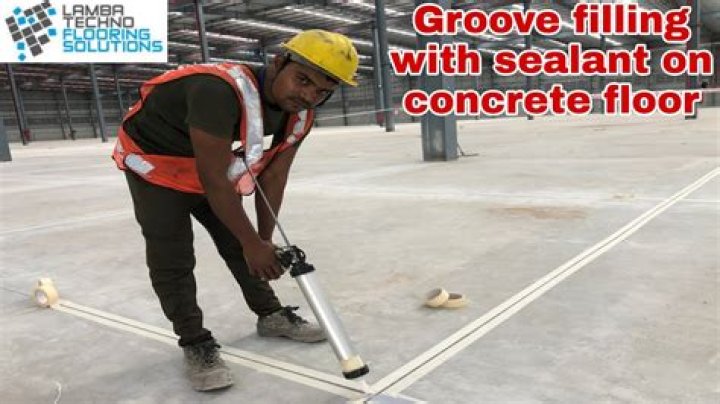

What can you put between concrete joints?

Expansion joints must be sealed with a flexible sealant, like QUIKRETE® Self-Leveling Polyurethane Sealant or QUIKRETE® Non-Sag Polyurethane Sealant…or an expansion joint strip, to prevent water from penetrating the joint and deteriorating the sub-base.

What material is used for expansion joints in concrete?

Expansion joints are used to allow the slab to move and not put stress on whatever it abuts. These joint are placed where a slab meets a building, where a slab meets another slab, and where a pool deck meets the coping. A pliable material is used (asphalt coated, cork, plastic) to construct these types of joints.

What is concrete control joint?

Control joints are planned cracks which allow for movements caused by temperature changes and drying shrinkage. In other words, if the concrete does crack-you want to have an active role in deciding where it will crack and that it will crack in a straight line instead of randomly.

What is a concrete trowel?

Trowel Finishing Concrete A power trowel consists of one or multiple rotating blades enclosed by a safety cage. This type of concrete finishing equipment is used to create a polished, level finish on a variety of concrete surfaces. Floating, finishing, and combination blades are used to create the desired end result.

How do you cut concrete without cracking it?

Make sure there are no electrical or plumbing lines under the area. Next, connect your concrete saw to a running supply of water and power it up. Make sure you wear the necessary safety gear and clothing before you begin cutting. Finally, position the saw on one of the edges of the marked area and start cutting slowly.

How often should you put expansion joints in concrete?

Usually, expansion joints should be no farther apart than 2 to 3 times (in feet) the total width of the concrete (in inches).

Should concrete control joints be caulked?

Caulking Concrete Cracks and Expansion Joints Stopping water from flowing under your concrete is probably the most important thing you can do to keep your driveway from sinking and becoming out of level. … Even expansion joints in your concrete driveway should be caulked.

How deep can a concrete saw cut?

They can cut through 12 to 14-inches of concrete. It is wise to use a strong power source for cut-off machines to increase their speed. They also become simpler to use and are less noisy. This is even more so if the main focus is on the depth of the cut as opposed to the noise created when in an enclosed environment.

Are concrete cracks normal?

Hairline cracks in a concrete slab are rarely a cause for concern. They can be controlled, but not eliminated. A crack in a slab of 1/8 inch or less is typically a normal shrinkage crack and not a cause for concern.

What is the most common cause of cracking in concrete?

Shrinkage is a main cause of cracking. As concrete hardens and dries it shrinks. This is due to the evaporation of excess mixing water. The wetter or soupier the concrete mix, the greater the shrinkage will be.

How thick does concrete need to be to not crack?

To prevent load-stress cracking, make sure a slab is built over a uniformly compacted, well-drained subgrade, and is thick enough to withstand the kind of use it will get. In residential concrete, 4 inches is the minimum thickness for walkways and patios.

What should I put between concrete slabs?

An expansion joint is a material placed in the cracks (or joints) between concrete slabs to protect the slabs from cracking when they contract and expand as the temperature changes. This material acts as a shock absorber, absorbing the stress from the slab’s movement.

What happens if you don't put expansion joints in concrete?

If you have a concrete floor in your commercial building, you know expansion joints are necessary to allow for the natural expansion and contraction that occurs from temperature changes. Without these joints, large cracks can travel across your floor, creating costly damage.

Does concrete expand when wet?

Introduction. Hardened concrete absorbs moisture and expands if it is laid into a humid environment or water, and the volume expansion deformation via the increase of moisture is called wet expansion deformation [[1], [2]].

Why are sidewalks concrete and not asphalt?

While more expensive than asphalt, concrete is still affordable and certainly less expensive than interlocking tiles or pavement. Concrete paving is generally also more durable and able to withstand high usage and regular wear and tear with little to no effects.

Why do they cut concrete slabs?

Saw cuts are a used to create control joints in concrete, which help control where cracking occurs due to shrinkage. The cuts should be made at a predetermined spacing and only after the concrete has obtained sufficient strength but before internal cracking begins.

Is asphalt better than concrete?

Concrete is more durable than asphalt. Because it is a less flexible material, it cracks in freezing temperatures, and many people turn to concrete patching products. … Though it is more durable overall, when damages do occur, concrete repair is harder and costlier than asphalt repair.

What is the difference between a float and a trowel?

A float has a thicker base than a trowel and is usually made of plastic, sponge, rubber, wood or magnesium – a lightweight pale grey metal. It’s used to even up the surface on plaster or concrete, make it firmer and give whatever texture is required. The finish will depend on the float chosen.
