What is a closed end rivet

Closed end blind rivets are a type of tubular rivet with a mandrel through the center. To install a closed end rivet, the entire fastener is inserted through drilled holes in the parts being joined, and a special tool is used to draw the mandrel into the rivet.

What is the difference between open and closed rivets?

Most blind rivets are open end, which means that the rivet body is completely hollow. When vapor and liquid tight fastening is required, use a closed end rivet (its blind end is solid and remains closed even after setting).

Whats a sealed rivet?

Description. The sealed rivets are break mandrel blind rivets that guarantee a solid and high quality fastening. The joints are completely sealed to fluids, avoiding leakage of liquids or vapours due to the locking of the mandrel inside the rivet body.

How do Closed End pop rivets work?

Closed end “CUP” rivets differ from open end “Standard” rivets because they provide 100% mandrel retention. The head of the mandrel stays inside the set rivet, thereby sealing it and blocking the passage of fluids or gases. … Once the “CUP” rivet is set, it prevents vapor or liquids from entering the work piece.

How do Sealed rivets work?

The mandrel is pulled through the body of the rivet using a riveter, or rivet gun. Closing the handles of the riveter pulls the mandrel head into the body of the rivet with great force, causing the part of the body on the “blind” side of the joint to bulge outwards, effectively locking the rivet in place.

What is an open rivet?

Open end blind rivets are tubular rivets with a mandrel through the center. The entire rivet assembly is inserted into a hole drilled through the parts to be joined, and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and snaps off the mandrel.

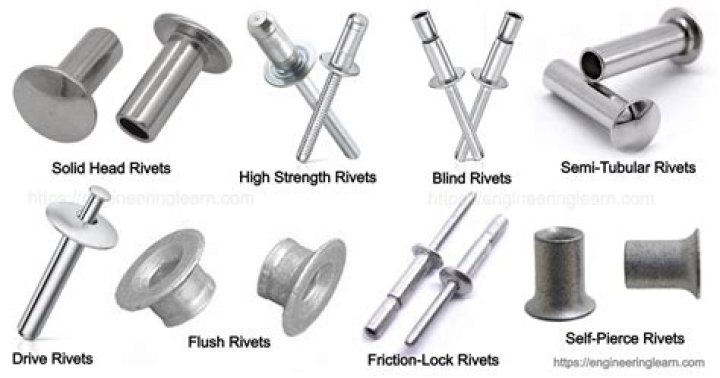

What are the different types of rivets?

There are four basic types of rivets; tubular, blind, solid and split.

Is a rivet watertight?

Standard: The most common and the least expensive, these blind rivets are not watertight and aren’t as strong as other types of fasteners. Sealed: Similar to standard rivets, the mandrel on this rivet is completely enclosed, making it watertight.

What is the difference between a rivet and a blind rivet?

Blind rivets, a.k.a. break stem rivets, are tubular fasteners with a mandrel through the center. … The blind end expands, and the mandrel is snapped off. Unlike solid rivets, blind rivets can be installed in joints from only one side of the part—making them “blind” to the opposite side.

What are tubular rivets?

Semi-tubular rivets (also known as tubular rivets) are essentially the same as solid rivets, but with a shallow hole at the tip, opposite the head. This hole causes the tubular portion of the rivet (around the hole) to roll outward when force is applied.

Article first time published on

What is the strongest rivet?

Multi-Grip Rivets. The multi-grip rivet is our strongest standard rivet choice, for many customers this rivet helps reduce stock options as one multi-grip rivet replaces a few different size open end rivets.

Do rivets leak?

Rivets leak because wear and tear eventually loosens them, causing gaps where water can get through. There are a couple of ways to find leaking rivets. … Place it over a rivet, and pull a vacuum with it. If the rivet holds the vacuum seal, it’s good; if it doesn’t hold the seal, it will leak.

What is a blind fastener?

The blind fastener is placed in a pre-drilled hole and is installed by using an installation tool to pull the mandrel or pin head into the rivet body, expanding the rivet body and causing it to flare on the blind side of the joint material creating a permanent and vibration resistant fastening.

What is a buck rivet?

A bucked rivet is a round fastener that attaches two or more pieces of metal together. The rivet is driven by a pneumatic rivet gun with an attached rivet set shaped according to the shape of the manufactured head of the rivet.

Which type of rivet is used for applications?

A flush rivet takes advantage of a countersink hole; they are also commonly referred to as countersunk rivets. Countersunk or flush rivets are used extensively on the exterior of aircraft for aerodynamic reasons such as reduced drag and turbulence.

What is a split rivet?

Split rivets, also known as bifurcated rivets, are a type of self-piercing rivet that are most often used to join softer materials such as textiles, leather, plastic, or wood. … Common uses for split rivets include the production of leather goods, clothing, cloth or soft-sided carrying cases, and similar applications.

Can I use aluminum rivets on steel?

For example, never place an aluminum rivet in a large piece of steel. When connecting two pieces of the same material, use a fastener/bolt made of the same material. For example, use an aluminum fastener when connecting two pieces of aluminum.

Can you use aluminum rivets on stainless steel?

They are incompatible; the stainless steel will cause the aluminum to galvanically corrode.

When would you use a rivet?

Pop rivets can be used to connect wood, metals, or even plastics, and they can be made of specific materials for specialty applications such as when additional strength or corrosion resistance is needed. Lightweight manual pop rivet tools are ideal for simple tasks such as joining metal sheets or thin materials.

What type of rivets are used on aircraft?

Two of the major types of rivets used in the aircraft are the common solid shank type, which must be driven using a bucking bar, and the special (blind) rivets, which may be installed where it is impossible to use a bucking bar. Solid shank rivets are generally used in repair work.

Which type of rivet is used in aircraft industry?

The universal head rivet and the 100 degree countersunk head rivet (MS20426) are the most widely used within our industry. See Figure 3. These MS numbers are also interchangeable with AN numbers AN470—MS20470 and AN426—MS20426. Additionally, two types of material are available within these designations.

Can blind rivets be self piercing?

There are several proprietary processes for self-piercing riveting, typically using a semi-tubular rivet, although solid rivets are also sometimes used. … Blind rivets, for example, are used for car body assembly where access constraints mean that the joint can only be accessed from a single side.

How do you use closed end rivets?

To install a closed end rivet, the entire fastener is inserted through drilled holes in the parts being joined, and a special tool is used to draw the mandrel into the rivet. The blind end of the rivet expands to secure the workpieces, and the mandrel snaps off.

Are Closed End rivets waterproof?

Closed-end rivets are a type of tubular rivet with a mandrel through the center and a unique, cup-shaped end configuration that is designed for watertight applications or when stem retention is vital. These rivets can be used in blind or non-blind applications.

What are blind rivet nuts?

A rivet nut, also known as a blind nut or nut-sert, is a one-piece internally threaded and counterbored tubular rivet that can be anchored entirely from one side. There are two types: one is designed to form a bulge on the back side of the panel as a screw is tightened in its threads.

What is a punch rivet?

In punch riveting, the necessary hole is punched out by the rivet itself. The riveting presses are pneumatically, hydraulically or electrically driven, whereby the pressing systems can not be equipped with a force-path monitoring for process control.

How do you size semi tubular rivets?

The rivet shank diameter can be determined by comparing it to the thickness of the material stack up. Optimally, the ratio between the shank diameter and part thickness should between 1:1 and 1:3 for metal parts (closer to 1:1 for plastic parts).

Are rivets or screws stronger?

Screws (wood and sheet metal) are stronger than rivets of the same diameter because they have more cross section, but they have little backing area. Machine screws with washers and nuts are not only extremely strong, they also have a large backing area. Rivets can also be used with washers.

Is rivet stronger than welding?

No matter what you do, your rivets will be in plain sight. … Last, but not least, generally, riveting is not as strong as welding. If you need the two parts to be capable of withstanding forces that draw the pieces apart, riveted joints will be more likely to fail compared to a properly welded joint.

Are stainless steel rivets stronger than aluminum rivets?

Stainless steel has a tensile strength of 505 MPa and a density of 8 gcm-3. Stainless steel is, therefore, stronger than aluminum.

Are pop rivets and blind rivets the same?

Blind rivets, also commonly referred to as POP Rivets, are mainly used in applications where there is no access to the rear (blind side) of the joint. Rivets have a two-piece construction; one is called the rivet body, shell, or hat and another is called the stem or mandrel.
