What is a cleat in roofing

What it is: Cleats are the clips used to anchor down a metal wall system. … Cleats are also used throughout metal roof (valley detail) and flat roof metal trim installations.

What is cleat trim?

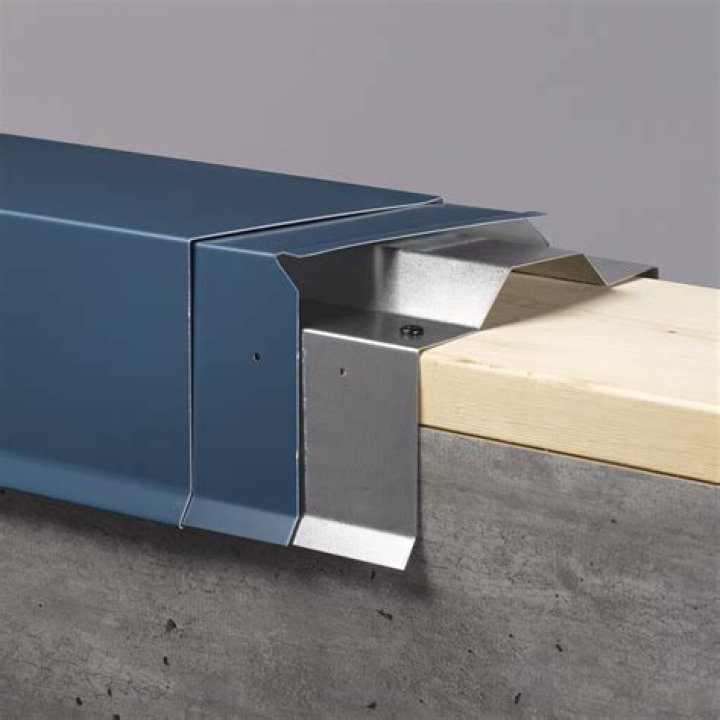

Trim Cleat – # WS-513 Trim cleat is a continuous piece of metal that’s designed to hold the ends of the parapet cap in place. The hem at the drip edge of the parapet cap will hook into the trim cleat.

Are plywood clips required on roofs?

For the most common roof sheathing in our area, which is 1/2” nominal (7/16” actual) sheathing over trusses or rafters at 24” on center, there is no requirement for H-clips. … One or two H-clips will often allow a longer span between roof trusses/rafters.

What are roof clips for?

H-clips, also called panel-edge clips, are small steel devices that fit snugly between wood panels in order to provide them with edge support. They are often used with roof sheathing to keep it from feeling spongy or soft at its edges.

What is the purpose of plywood clips?

A panel edge clip (often called an “H-clip” or “plywood clip”) is typically a small piece of galvanized metal that is placed between adjacent wood structural sheathing panels at a location between supporting joists or trusses and/or rafters to provide support to panel edges.

Are H clips required for 5/8 roof sheathing?

5/8” thick panels having a span rating of 40/20 can have an unsupported edge up to 32”. This means that 1/2” and 5/8” thick roofing panels that are supported by roof framing (rafters or trusses) spaced at the typical 16” or 24” o.c. do not require edge support (H-clips).

Where do you put plywood clips?

The clips are inserted over the edges of the adjacent plywood panels to reduce deflection of the panel edges between the framing members and are most commonly used for roof sheathing. Plywood clips are inserted by hand and the procedure is done in conjunction with installation of the sheathing.

Does roof sheathing need to be spaced?

The panels should be spaced 1/8-inch apart at the ends and edges. The panel ends must be joined over a support. The panel joints should rest along the center line of the support framing with at least 1/2-inch of bearing. Tongue-and-groove edges or solid blocking may provide support at the edges.

How many plywood clips do I need?

Answer: You need 1 clip per a rafter bay/cavity. If the rafters are 16 inches O.C. and the plywood sheet is 8 foot long, then you get 6 bays/cavities.

What is the minimum thickness of roof sheathing?

Sheathing must be a minimum of 19/32-inch thick. Never affix roof sheathing with staples; 8d ring-shank nails need to be used instead. The normal thickness range for sheathing is 3/8 to 3/4 inch.

Article first time published on

What kind of sheathing is used for roofs?

Typical types of wood used for roof sheathing are oriented strand board, known as OSB, and plywood, the most popular being OSB. Sheets of 7/16-inch thick, with no edge support, can be used in an area where the snow load is 30 pounds per square foot. With edge support and the same snow load, 3/8-inch OSB can be used.

How do roof tile clips work?

A highly versatile mechanical fixing for small roof tile cuts, for example at hips and valleys. The rigid clip is secured to the roof tile using a hammer and the attached wire is then wound around a nail which itself is secured to a convenient structural timber fixing point.

What are Valley clips?

Roofers use a variety of methods to secure valley cuts or gable end cuts. It’s common to find the cuts secured with silicon and flexible pointing – even tile chips jammed under the cuts. All these methods fail over time allowing the cut to slide out of position.

How many sheets of plywood do I need for my roof?

Divide the total roof area by 32 to get the number of sheets you will need to cover the roof. A typical 4 foot by 8 foot sheet of plywood covers 32 square feet. If your roof area is 1,600 square feet, 1,600 divided by 32 will mean you need about 50 sheets to cover the roof.

What is the difference between sheeting and sheathing?

As nouns the difference between sheathing and sheeting is that sheathing is something that wraps around or surrounds something, as a sheath encases its blade while sheeting is fabric used to make sheets (bedding).

Is OSB or plywood better for roof sheathing?

Plywood Holds the Moisture Advantage Over OSB When plywood gets wet, it tends to swell. … OSB takes longer than plywood to get saturated, but also takes much longer to dry out. When used as roof sheathing, this tendency to hold moisture means it will degrade faster than plywood when exposed to chronic leaks.

How far should roof sheathing overhang fascia?

The best installation method is to leave a gap between the drip edge and the fascia board, about the width of a finger. The shingles should also overhang the drip edge 3⁄8 to 1/2 an inch.

How are standing seam metal roofs attached?

Standing seam metal roofing doesn’t rely on exposed screws or nails to attached to a home or building but rather uses a clip that fits over the top of the male leg of the standing seam metal. The clip gets screwed down to the roof, holding the metal roofing panel in place.

What is a roof truss in construction?

A roof truss is best described as a structural framework of timbers that’s designed to provide support for a roof. They’re also used to bridge the space above a room. They typically occur at regular intervals, and they’re linked by horizontal beams known as purlins.

What are hurricane clips?

Hurricane Ties, also known as rafter ties, truss ties, or hurricane clips, are used for deck or roof framing to secure rafters, trusses, or joists to the wood framework. This is done to resist uplift and lateral forces, like those that come from a hurricane or severe storm.

Is it better to nail or screw roof sheathing?

Now, however, experts almost universally recommend using 8D common nails. “Your roof will be more resistant to heavy winds if you use the right nails to secure the sheathing,” according to James Bedford of Fort Collins Roofing in Fort Collins, Colo.

Should I nail or screw roof sheathing?

If 8d “common” nails are specified, the nail diameter must be at least 0.131 inch (wider than typical 8d pneumatic nails). Screws can be used for even greater withdrawal strength, but should be sized by the building designer. Staples are not recommended for roof sheathing attachment in high-wind areas.

Can I use screws on roof shingles?

You cannot use screws for roofing shingles, only roofing nails are approved fasteners. Screws leave small gaps in the material they are driven into, and this may be enough to allow for a leak.
