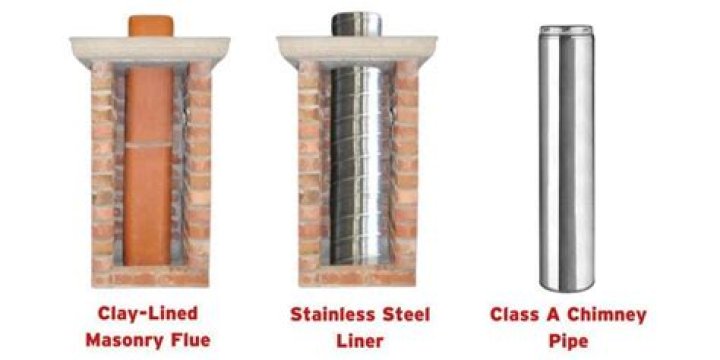

What is a Class A chimney

Class A chimneys are insulated to prevent the outside of the chimney from becoming excessively hot. There are two types of insulation used: packed pipes and air insulated pipes. Packed pipes have a double wall with insulation between the layers to help absorb the heat.

What is a Class A chimney system?

Class A chimney is a complete chimney system. The Class A chimney system does not require any masonry. … Class A chimney is designed for residential use and can be installed on the exterior or the interior of the home. Class A chimney pipe is a double wall pipe that is designed to vent any fuel.

How long does a Class A chimney last?

If a chimney has been correctly built and cared for, it can be expected to last for 50 to 100 years!

What is Type A chimney pipe?

Class A chimney pipe has many names, often referred to as double-wall chimney pipe, triple-wall chimney pipe, all-fuel pipe, or insulated chimney pipe. Class A pipe is used to vent high-temperature exhaust released from wood, coal, and oil-burning appliances such as fireplaces, stoves, boilers, and furnaces.

How hot does Class A chimney get?

This standard, which is known as UL 103 mandates that Class A chimneys be designed to operate at a continuous temperature of 1,000 degrees Fahrenheit.

How long does Class A stove pipe last?

Average Lifespan of Chimney Liners The average lifespan of a chimney liner is 15 to 20 years. After two decades you will probably need to get the entire liner replaced to make sure it’s still up to code and not a serious fire risk.

What is a Class B chimney made of?

Type B Vents are factory built double wall vent pipes that are only used to for venting gas. They are always made with a galvanized exterior and an aluminum interior. The air space between walls is fairly small.

What is a Class B flue?

Type B-vents are double-walled metal chimneys/flues and can be used only with listed, draft-hood equipped gas appliances. … B-vents are not permitted for use with incinerators and are not intended for use with appliances burning anything other than LP or natural gas.

Which pipe is best for chimney?

The best chimney pipe is made of stainless steel, a material that’s known for being durable, corrosion-resistant, and offers excellent heat resistance. In the case of heavy-duty or industrial purposes, galvanized iron sheets are a more affordable alternative. Other popular options include aluminum and PVC materials.

Do I need double or triple-wall chimney pipe?

Triple-Wall Stove Pipe Installation Inside buildings, chimney pipes have to be enclosed if they pass through living spaces. According to building codes, there must be a 2-inch clearance around your double- or triple-wall chimney pipe. In mobile homes, you must use a triple-wall chimney pipe.

Article first time published on

Do you need to waterproof your chimney?

As a result, chimney masonry should be protected from exposure to water. That’s why many chimney professionals recommend homeowners apply a waterproof sealer to protect the chimney from water damage. … So for optimum performance, waterproofing should be re-applied every five years.

How much does it cost to rebuild a brick chimney?

Most homeowners spend between $175 and $1,000 on repairing a brick chimney. Repairing 10 or fewer bricks is $175 to $500; more than bricks will cost $750 to $1,500. The most common repair needed for a chimney is cleaning the creosote buildup. Chimney sweeping averages $250.

How much does it cost to have a stainless steel chimney liner installed?

The average cost of a stainless steel chimney liner is around $1,980 when installed by a local chimney professional. For do-it-yourself homeowners, expect to pay around $625 for a ready to install, 6″ x 25′ foot flue liner kit and DIY installation.

Can you use double wall stove pipe outside?

To do this requires that the pipe remain cool on the outside by having an internal design that creates a fire-safe venting system. … The goal is to minimize the outside diameter of the pipe and the allowable distance from combustibles. This can be 2 inches for double-wall pipe and 1 ½ inches for triple-wall pipe.

How hot does black stove pipe get?

For safety reasons, UL specifies that manufactured chimneys must be able to sustain a continuous flue gas temperature of 1000ºF. That would correspond to about a 500-600º external temp on single-wall black stove pipe.

Can fiberglass insulation touch chimney?

Fiberglass insulation can’t and should not touch your stove’s vent pipe. While fiberglass is not flammable, it can melt, causing fire risks. To get around this issue, you need to install a barrier of aluminum flashing between the vent and the insulation.

Is B Vent double wall?

AmeriVent Type B gas vent uses a double wall of metal pipe for insulation and safety. The inner pipe of reflecting aluminum heats quickly, containing the warm flue gases inside. The airspace between the inner and the outer pipes provides insulation against heat loss to keep the warmer flue gases on the rise.

Can you install B vent through wall?

Any portion of your B vent system that passes through the occupied area must be enclosed to protect against any emergency, such as the system’s burning. But we will not recommend installing the B vent pipe on the outside wall of the building, especially when the outside weather is cold.

Can B vent touch wood?

Type B Vent shall not be used to vent flue products from incinerators, combination gas/ oil appliances, oil-fired, or wood-burning appliances.

How often should you change wood stove pipe?

Growing up the pipe going to teh chimney would get changed out every 5-6 years. They rust out after a while.

How high should my chimney be?

The most common of these being the 2 foot, 10 foot, 3-foot rule. Roughly this means that a chimney should be 3 feet higher than the point it passes through a roof, while also being at least 2 feet taller than any part of a building that’s within 10 feet of the chimney.

What kind of chimney do I need for a wood stove?

A prefabricated metal chimney unit may be the best choice for wood stoves or fireplaces in these homes. Prefabricated chimneys are easier to erect than masonry units, and although materials cost more, total unit cost will be nearly the same.

Is auto clean chimney better?

Simply put, an auto-clean kitchen chimney is better than a manual one. Ultimately, the auto-clean option saves time, is more reliable, and will last longer with less maintenance. This does not mean no maintenance, but compared to a manual kitchen chimney, an auto-clean one is less work and better for the long run.

Which pipe is best for chimney PVC or Aluminium?

While Aluminum pipes can withstand high temperatures, PVC pipes can start to melt and burn when exposed to high heat releasing toxic gases. Kitchen chimneys are a great way of channeling out the smoke, heat, and odorous gases out of the kitchen, especially when cooking high temp Indian cuisines.

Can PVC pipe be used for kitchen chimney?

Materials like PVC and aluminium are also used for the chimney ducts. It is not advisable to go for more than two bends in the chimney duct, because a short pipe with fewer bends is more effective than a long pipe with more bends.

What is a Category 1 Vent?

Category I: The vent relies on gravity to get the flue gases out, and it’s not a condensing appliance. If you poke a hole in the vent, air will go into the vent; flue gas won’t leak out. Because of this, the joints don’t need to be airtight.

What is the difference between Type A and Type B vent pipe?

Definition of Vent or chimney vent or flu vent: A metal chimney which is “thin walled” – either a single wall of metal or a thin double wall in some areas is called a “vent”. A double-walled metal flue used for venting gas fired appliances in the U.S. and Canada is a Type-B vent.

Is all B vent compatible?

Type B-vents are double-walled metal chimneys/flues and can be used only with listed, draft-hood equipped gas appliances. … B-vents are not permitted for use with incinerators and are not intended for use with appliances burning anything other than LP or natural gas.

How hot can a woodstove get?

It’s not unusual for this appliance to generate internal temperatures in excess of 1,000 degrees Fahrenheit and exterior temperatures greater than 400 F, according to Colorado State University’s National Ag Safety Database.

How far from walls should a wood stove be?

Wood frame walls covered with dry wall are considered combustible. If no wall protection is used, the common radiant-type stove or heater must be spaced out at least 36 inches from the wall.

How long does chimney pipe last?

The answer to this question depends on the type of chimney liner you have. Clay tile liners and cast-in-place liners typically last around 50 years. Stainless steel flue liners generally last for 15 to 20 years (though low quality liners may not even last for five).
