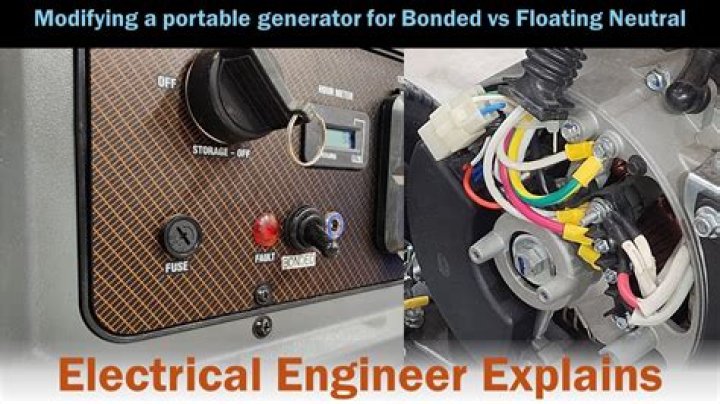

What is a bonded generator

With a bonded neutral generator, the neutral is connected to the frame of the generator. … This ensures that electricity will flow properly through the neutral conductors and is delivered to one bonded location — eliminating unpredictable stray voltages caused by connecting to the ground twice.

Are Generac generators bonded?

All Generac permanent residential air-cooled generators are floating neutral generators. The neutral conductor is not bonded to the equipment grounding conductor or to the generator frame. … The neutral conductor is not switched upon transfer from the utility to the generator source.

Should I bond my generator?

A portable generator should never be attached directly to the electrical system of a structure, like a house or trailer, unless the generator has a properly installed open-transition transfer switch. This is key to proper and safe use, as proper grounding and bonding prevent shocks and electrocutions.

What happens if you don't ground a generator?

If your generator isn’t grounded, that path of least resistance could allow electricity to flow in places it shouldn’t be – which can cause electrocution, spark a fire, or cause other dangerous situations. Grounding provides a backup path of least resistance for electricity to flow.

Why are neutral and ground tied together?

If you touch the casing, and some real ground (like a water pipe) at the same time, you will close the circuit and carry all of the current. So, connecting the ground to neutral totally defeats the purpose of having a ground, and actually makes it more dangerous than not having the ground at all.

What is the difference between floating neutral and bonded neutral?

With a bonded neutral generator, the neutral is connected to the frame of the generator. … A floating neutral generator’s neutral circuit is not connected to the generator’s frame or the ground, meaning it is required to connect the neutral to your existing panel neutral.

Can I connect my generator to house ground?

Do NOT separately ground your generator. It should tie in to your house’ ground the same way any appliance would. Using a separate ground at the generator can actually be dangerous if there is a nearby lightning strike or a failure of the local electrical utility’s infrastructure.

Does a generator need a separate ground rod?

The short answer is, probably not. The NEC requires a conductor that provides a fault return path to be installed with the generator feeders.

Do I need to ground my generator when camping?

It is not always necessary to ground your generator. Most manufacturers bond the components to the generator’s frame which acts as a ground wire for you. You will need to ground the generator if you are plugging it into a wired circuit system or if you want to plug electrical appliances directly into the generator.

Do you have to drive a ground rod for a generator?

Portable generators are useful for when temporary or remote power is needed. … Thus, rather than connect to a grounding electrode system, such as a driven ground rod, the generator’s frame replaces the grounding electrode. If these conditions do not exist, then a grounding electrode, such as a ground rod, is required.

Article first time published on

Does a home generator need a ground rod?

If the portable generator is providing electric power to a structure by connection via a transfer switch to a structure (home, office, shop, trailer, or similar) it must be connected to a grounding electrode system, such as a driven ground rod.

Why is earthing required for a generator?

The neutral point of a generator is usually earthed to facilitate protection of the stator winding and associated system. Earthing also prevents damaging transient overvoltages in the event of an arcing earth fault or ferroresonance.

Can a portable generator run in the rain?

Instructions for a portable generator warn you not to run it in the rain. To protect it from moisture, the Consumer Product Safety Commission recommends operating it on a dry surface under an open, canopy-like structure. Overusing extension cords.

How are generators grounded?

When connecting to an electrical panel (building electrical system, manual transfer switch, RV, etc.) you need to connect your generator to a ground rod. Ground rods must be pounded into the earth, then connected to the ground lug on the generator via a ground cable.

Are portable generators bonded?

Portable generators used on job sites have the neutral and ground bonded in order to meet OSHA regulations. When connected to a switched-neutral transfer switch, the generator’s neutral-ground bond will have to be removed, which then requires the addition of a grounding electrode and a bond at the transfer switch.

What is a floating neutral on a generator?

Most Champion Power Equipment generators have a “floating neutral”, meaning that the neutral circuit is not connected to the frame or to earth ground. … In electrical systems where the neutral is bonded to ground, the voltage will be zero and correct polarity will be indicated.

Can the neutral wire shock you?

So even the current returns through neutral (only from a connected load that completes the current flow circuit) you touching the neutral with a 0V cant get you a shock. But its not safe to touch neutral wire! It is possible that the path to ground on neutral is not very good.

Can neutral and ground be on same bus bar?

If the main service panel happens to be the same place that the grounded (neutral) conductor is bonded to the grounding electrode, then there is no problem mixing grounds and neutrals on the same bus bar (as long as there is an appropriate number of conductors terminated under each lug).

What happens if earth and neutral wires touch?

In Short if neutral wire touches a earth wire, An earth wire carrying load current is a risk of electric shock because a person touching this earth may present an alternative path for the load current and thus the risk of electric shock.

Can you hook up two generators to a house?

Yes, generators can be run in parallel. However, in reality it requires more control over the prime mover (motor) than typical consumer gensets provide. You need to be able to adjust both frequency and voltage on the generators and get the phase in sync as the connection is being made.

What size wire do I need to ground a generator?

The gauge of the grounding wire is important. The electric code specifies at least #6 or #8 copper wire for a domestic grounding rod. Though, for most portable generators this could be overkill.

Is a portable generator a separately derived system?

Separately Derived System (SDS) – A building wiring system whose power is derived from a source of electrical energy or equipment other than a service. … A generator is only considered to be a separately derived system, when the grounded (neutral) conductor in the transfer switch is switched.

What is a separately derived system generator?

Separately Derived System: An electrical source, other than a service, having no direct connection(s) to circuit conductors of any other electrical source other than those established by grounding and bonding connections.

What happens if neutral is not grounded?

Hazard of Open Service Neutral If the grounded (neutral) service conductor is opened or not provided at all, objectionable neutral current will flow on metal parts of the electrical system and dangerous voltage will be present on the metal parts providing the potential for electric shock.

Can you ground a generator to a trailer?

You DO NOT need to use an earth “grounding rod” for any portable generator that’s powering a single RV. However, if you’re using a large generator to distribute power to a number of RVs for a rally, that’s an entirely different thing which will require a grounding rod.

Can I plug my RV into a generator?

Generators are rated in watts rather than amps. A 1000-watt generator is about right for a small RV or if you don’t need to run major systems like air conditioning. A 3500-watt generator is usually the next step up and can run most RV systems on most RVs.

Where is the predator generator made?

As is typical with many modern day small engine generators Predators are generally manufactured in mainland China at one of several possible locations.

What earthing system is a generator?

Earthing or Grounding of Diesel Generator Plant is important to ensure correct operation of the plant and safety of the people who work over there. Generator neutral (star point) is to be connected by insulated earthing conductor through the neutral earthing link or device to main earthing bar.

Do generators run on gas?

Standby generators use one of two fuel sources: propane or natural gas. Natural gas units can keep running indefinitely, because their fuel will almost certainly outlast the outage.

How much is a ground rod?

8′ ground rods cost about $11 apiece – 10′ if required in your area about $15 each. The grounding wire, assuming #4 bare copper wire, about $1.20/LF, 4 clamps at $5 ea – so assuming about 10′ run to each rod, then about $66-74 materials – say maybe $80-90 with markup.

How deep should a grounding rod be?

In general, grounding rods put in vertically need to be about 8 feet deep into the soil, or, if in a very rocky area, about 2.5 feet deep when installed horizontally.
