What is a binnacle compass

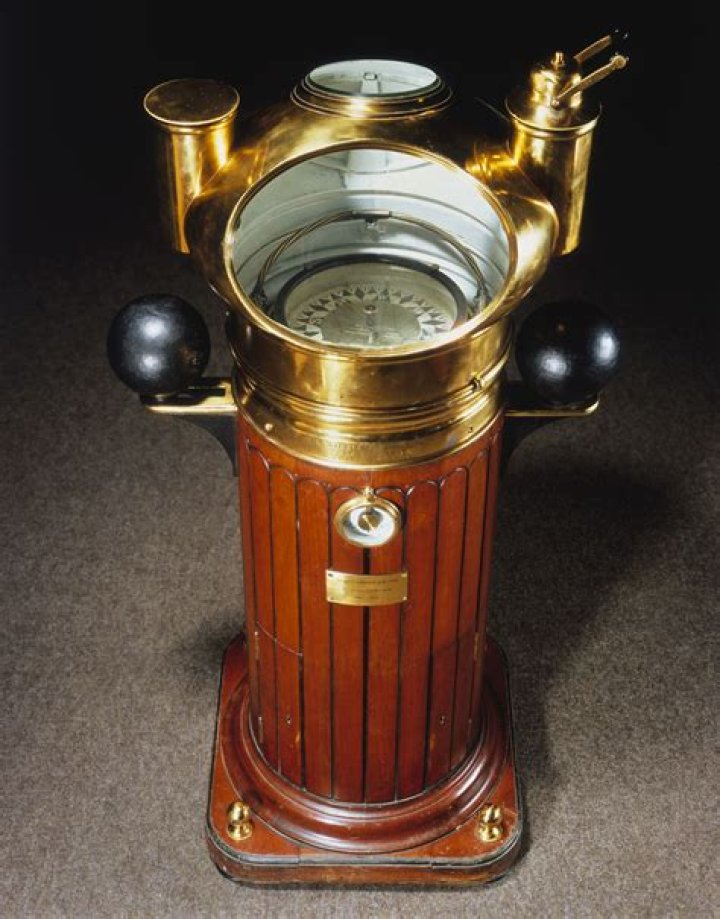

A binnacle is the housing for a ship’s compass. The idea behind a binnacle is to counter the magnetic deviation caused by the ship being made of iron so that the compass can point to magnetic north. Metals that were used to construct binnacles were required to be non-ferrous (containing no iron) such as brass.

Why is it called a binnacle?

Its delightful name Binnacle derives from Latin habitaculum meaning “little dwelling place”. This “little house” helps to protect the delicate compass from the elements. They usually contain a gimbal arrangement to hold the compass card horizontal despite the motion of the ship.

What is the difference between a nautical compass and a regular compass?

The card compass, or marine compass, commonly used on ships and boats, differs from most other compasses because it uses a fixed needle, relying on a moving compass card for directional readings.

What does binnacle mount mean?

A binnacle is a waist-high case or stand on the deck of a ship, generally mounted in front of the helmsman, in which navigational instruments are placed for easy and quick reference as well as to protect the delicate instruments.

What is a sea compass called?

The gyroscopic compass (or gyro compass) was introduced in 1907. The primary benefit of the gyro compass over a magnetic compass is that the gyro is unaffected by the Earth’s, or the ship’s, magnetic field, and always points to true north.

What are the spheres on a binnacle?

Have you ever seen a ship’s binnacle, and wondered what those spheres on either side are for? It’s all about magnetism! Unlike the gyrocompass we featured last week, the compass in a binnacle is a magnetic compass, and is designed to point to the magnetic north pole.

How does the compass Bowl is supported in the binnacle?

The length of the bar may be changed during adjustment of the compass. The Quadrantal Correctors are two soft iron spheres fitted in brackets on either side of the binnacle. … This is in place to protect the compass bowl from the weather and harsh conditions.

How many corrector magnets are installed in the binnacle of a compass?

There are two soft iron spheres carried on brackets fitted on port & starboard side of the binnacle. These are called quadrantal correctors. They can be moved on slots on the brackets and fixed at a specified distance during compass adjustment.

What is a binnacle lamp?

noun On a vessel, the small lamp which fits into the binnacle-hood and lights up the compass-card.

When was the binnacle invented?

This is an early example of a compass and binnacle patented in 1876 by Sir William Thomson (later Lord Kelvin) to overcome one of the main navigational problems of the 19th century.

Article first time published on

What kind of compass does the military use?

A lensatic compass is often referred to as a military compass, and is typically used by the U.S. Military. The lensatic compass is comprised of different parts compared to a baseplate compass.

What is nautical compass?

compass, in navigation or surveying, the primary device for direction-finding on the surface of the Earth. Compasses may operate on magnetic or gyroscopic principles or by determining the direction of the Sun or a star. magnetic compass.

What compass is used as standard compass?

The magnetic compass is the most familiar compass type. It functions as a pointer to “magnetic north”, the local magnetic meridian, because the magnetized needle at its heart aligns itself with the horizontal component of the Earth’s magnetic field.

What is a binnacle list Navy?

Binnacle is defined as the stand or housing for the ship’s compass located on the bridge. The term binnacle list, in lieu of sick list, originated years ago when ships’ corpsmen used to place a list of the sick on the binnacle each morning to inform the captain about the crew’s health.

Do ships still use compasses?

Despite advancements with GPS, the compass is still a valuable tool. Many airplanes and ships still use highly advanced compasses as navigational instruments.

What is a steering compass?

[′stir·iŋ ‚käm·pəs] (navigation) A compass by which a craft is steered; it sometimes refers to a gyro repeater, which is used for the same purpose as the steering compass; the term steering repeater is preferable.

What is the function of compass Bowl?

Traditionally the card is divided into thirty-two points (known as rhumbs), although modern compasses are marked in degrees rather than cardinal points. The glass-covered box (or bowl) contains a suspended gimbal within a binnacle. This preserves the horizontal position.

What is the difference between the true north and the compass north?

True north is a fixed point on the globe. … Magnetic north is the direction that a compass needle points to as it aligns with the Earth’s magnetic field.

What is the basic purpose of the soft iron spheres mounted horizontally on the binnacle of the magnetic compass?

The purpose of the soft iron spheres mounted on arms on the binnacle is to compensate for induced magnetism in the horizontal soft iron (of a vessel) and are used to remove deviation which is maximum on intercardinal (NE, SE, SW, NW) compass headings.

What is Athwartship magnet?

3) The heeling or athwartships magnets are magnetic compass corrector(s) that: a. can be set while the vessel is on a heading of magnetic north or magnetic south.

What is the purpose of a heeling magnet?

The heeling magnet is the only corrector that corrects for both permanent and induced effects, and consequently must be readjusted occasionally with radical changes in the latitude of the ship. (It must be noted, however, that any movement of the heeling magnet will require readjustment of other correctors.)

Why is the casing on compasses made of brass?

The casing of a magnetic compass is made of aluminium because aluminium is a non magnetic metal. Hence, it will not effect the working of compass as any other magnetic material, like iron will attract the magnetic needle and can cause the compass to show a wrong direction.

Where is a magnetic compass mounted?

The binnacle, formerly called the bittacle, is the receptacle in which the compass is mounted. Originally constructed in the form of a cupboard, it is now usually a cylindrical pedestal with provision for illuminating the compass card, usually from below.

What is the difference between the master gyro compass and the gyro compass repeater?

The master gyrocompass is usually installed in a compartment that will not be affected by the outside environment. Repeaters of its indication are mounted on the bridge and elsewhere as needed. The course recorder keeps a permanent record of the ship’s heading.

What is Gyro Compass in ship?

A Gyro compass is a form of gyroscope, used widely on ships employing an electrically powered, fast-spinning gyroscope wheel and frictional forces among other factors utilizing the basic physical laws, influences of gravity and the Earth’s rotation to find the true north.

What is the main purpose of magnetic compass correctors in a magnetic compass?

The aim of the compass adjuster is to nullify the effect of the unwanted magnetic fields by placing correctors (magnets and soft iron) adjacent to the compass. These create equal but opposing magnetic fields, thus eliminating the deviating fields around the compass, enabling it to align correctly.

What are the only magnetic compass correctors that correct for both permanent and induced effects of magnetism?

The heeling magnet is the only corrector that corrects for both permanent and induced effects, and consequently must be readjusted occasionally with radical changes in latitude of the ship. (It must be noted, however, that any movement of the heeling magnet will require readjustment of other correctors.)

How many times you must check the magnetic compass onboard?

The performance of the magnetic compass should be monitored and deviations to be recorded in a compass deviation book at regular intervals (Ref: IMO Resolution A. 382(X)), ideally at least once every watch and also shortly after a large alteration of course.

Why is it that bubbles forms in magnetic compass?

When the ambient temperature decreases, the volume of liquid is reduced considerably more than the material of the compass capsule. This can lead to the formation of an air bubble in the compass. If a small bubble forms in the liquid-filled capsule, it has no influence on the accuracy of the compass.

What do you call the deck at the top which bears maximum exposure to weather?

Boat Deck: The deck at the top, which bears maximum exposure to weather, is the main deck or weather deck. Based on the position of a ship’s deck, decks are of six main types; main deck, poop deck, upper deck, lowers deck, weather deck and foredeck.

Why does the military use lensatic compass?

It is the current US military compass used. Compared to other kinds of compasses, a lensatic compass allows you to read the bearings while sighting the objects all at the same time, without changing eye position. It also has the sighting wire, which helps in determining the azimuth more accurately.
