What is a Baro VNAV system

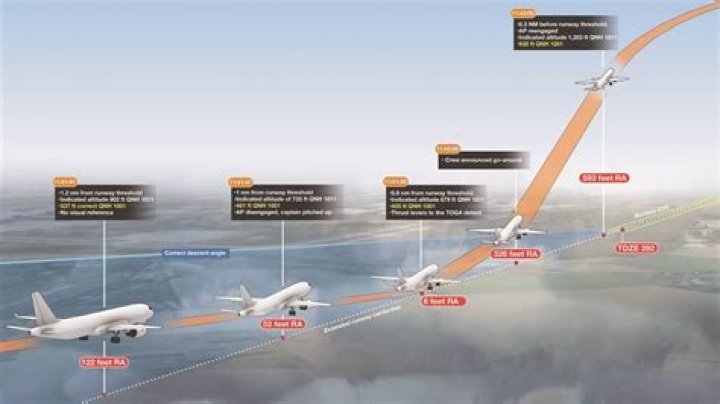

A Baro-VNAV is an RNAV system which uses the aircraft altimeter to compute and display a vertical guidance path. The path is either geometric between two waypoints, or based on an angle from a single waypoint. Baro-VNAV procedures include a minimum and maximum temperature limitation.

What does Baro-VNAV not authorized mean?

Baro-VNAV. Baro-VNAV is an RNAV system function that uses barometric altitude information from the aircraft’s altimeter to compute and present a vertical guidance path to the pilot. … Baro−VNAV may not be authorized on some approaches due to other factors, such as no local altimeter source being available.

How does Baro-VNAV provide vertical guidance?

Barometric vertical navigation, aka baro-VNAV — Uses approach-certified barometric altitude info from the pitot-static system and air data computer to compute vertical guidance (large aircraft). May be restricted by temperature.

Does a G1000 have Baro-VNAV?

Non-WAAS G1000 will NOT support LNAV/VNAV approaches (often called Baro-VNAV approaches) but will support LNAV+V approaches.

In what circumstances would a Baro-VNAV approach not be authorized?

In what circumstances would a Baro-VNAV approach not be authorized? in areas of hazardous terrain or when a remote altimeter setting is required.

Why is there a note stating a temperature limitation for executing this approach with Baro-VNAV equipment?

Why is there a note stating a temperature limitation for executing this approach with Baro-VNAV equipment? The decision altitude and final approach segment height above obstacles or terrain is unsafe when temperatures are lower than charted.

What will be the effect of temperature on a Baro-VNAV approach?

Effects of Cold Temperature on Baro-vertical Navigation (VNAV) Vertical Guidance Non-standard temperatures can result in a change to effective vertical paths and actual descent rates when using aircraft baro-VNAV equipment for vertical guidance on final approach segments.

What is a Baro-aiding altimeter?

Baro-aiding is a type of GPS integrity augmentation that basically allows your GPS to use your static system to provide a vertical reference and reduce the number of satellites required. … If your GPS unit prompts you for current altimeter setting, be sure to enter it each time when relying on baro-aiding.

Does Lnav have vertical guidance?

GPS NPA (LNAV) refers to a Non-Precision Approach (NPA) procedure which uses GPS and/or SBAS for Lateral Navigation (LNAV). On an LNAV approach, the pilot flies the final approach lateral course, but does not receive vertical guidance for a controlled descent to the runway.

How does a WAAS work?

How it Works. WAAS consists of multiple ground reference stations positioned across the U.S. that monitor GPS satellite data. Two master stations, located on either coast, collect data from the reference stations and create a GPS correction message.

Article first time published on

What is barometric altitude?

The altitude determined by a barometric altimeter by reference to a pressure level and calculated according to the standard atmosphere laws.

When can I descend on an approach?

“Maintain 3000 until established on the localizer.” Or, “Cross FIXXX at or above 3000.” Once you meet those conditions, you’re safely in TERPS-designed territory and can descend on the approach profile.

When can you descend on an ILS approach?

If you can see the white approach light system and nothing else, you can descend down to 100′ above touchdown zone elevation, regardless of the type of approach you’re flying (even if it’s a non-precision approach). But at the 100′ point, you need other visual references to descend lower.

When can you descend on an RNAV approach?

As long as you hear the magic words “cleared approach,” you can begin your descent as soon as you cross the IAF the first time (while beginning your teardrop maneuver) and continue to descend to the minimum altitude while in the circuit, which is at or above 2000 for this particular procedure.

How do you apply cold temperature altitude corrections?

Calculate correction by taking FAF/PFAF altitude and subtracting the airport elevation. This number will be used to enter the height above airport in the ICAO table until reaching the reported temperature. Round this number as applicable and then add to FAF altitude and all step−down altitudes.

What are the 5 types of altitude?

• 1) Indicated Altitude. Let’s start with the easiest altitude first. …
• 2) Pressure Altitude. When you set your altimeter to 29.92, you’re flying at standard pressure altitude. …
• 3) Density Altitude. …
• 4) True Altitude. …
• 5) Absolute Altitude.

What is density altitude used for?

In aviation, the density altitude is used to assess an aircraft’s aerodynamic performance under certain weather conditions. The lift generated by the aircraft’s airfoils, and the relation between its indicated airspeed (IAS) and its true airspeed (TAS), are also subject to air-density changes.

What is RNP approach?

Required Navigation Performance (RNP) is a family of navigation specifications under Performance Based Navigation (PBN) which permit the operation of aircraft along a precise flight path with a high level of accuracy and the ability to determine aircraft position with both accuracy and integrity.

Can you descend on a feeder route?

If you are assigned a feeder route and an altitude until “established on the approach” you do not descend to the minimum alitude for the feeder route.

What is required for LNAV VNAV approach?

LNAV approaches are the most basic of RNAV approaches and as such they usually have the highest minimums. They require no special avionics except a IFR certified installed GPS receiver. … Think of LNAV-only approach minima as the equivalent to a Localizer or VOR approach.

Is LNAV VNAV WAAS?

LNAV/VNAV: Lateral Navigation/Vertical Navigation The second type of GPS based APV approach is LNAV/VNAV. … They were originally designed for baro-aided GPS units, but most WAAS receivers can use them today as well.

Why is LNAV VNAV lower than Lpv?

The FAA Order has a lot of formulae to work it all out, but apparently the result is that if the calculations come out in a certain way and there’s an obstacle close to the runway, it can penetrate the LPV OCS but not the LNAV/VNAV OCS. That means the LPV DA then has to be made higher.

Does Garmin 430 have Baro aiding?

Garmin 430/530/1000 receivers without WAAS have Baro-Aiding, which uses your altitude in place of the GPS altitude of the position solution.

Can you fly a GPS approach without RAIM?

If there is no RAIM available during part of your flight, you can’t rely on GPS during that part. The GPS may still work fine, but there is no way to check its integrity. A single fault in a GPS satellite or, more likely, a corruption in the downlinked GPS satellite almanac will cause the position fix to be off.

What happens if you lose RAIM?

Loss of the required number of satellites in view, or the detection of a position error, cannot be displayed to the pilot by such receivers. In receivers with no RAIM capability, no alert would be provided to the pilot that the navigation solution had deteriorated, and an undetected navigation error could occur.

What are the benefits of WAAS?

WAAS improves safety due to a WAAS LPV stabilized approach. WAAS provides runway backup and situational awareness during all final approach to runway operations. WAAS increases the margin of safety for pilots during low visibility, instrument meteorological conditions ( IMC ) weather.

Where are WAAS satellites?

The system, which was declared operational in July 2003:, currently supports thousands of aircraft instrument approaches in more than one thousand airports in USA and Canada. WAAS service area includes CONUS, Alaska, Canada and Mexico.

What is WAAS capable?

Wide Area Augmentation System (WAAS), Defined More and more aircraft are WAAS-capable, allowing them to fly more precise GPS instrument approaches. In fact, WAAS-capable receivers can give you a position accuracy of better than 3 meters, 95 percent of the time.

How do you fix barometric pressure?

We know the true uncorrected barometric pressure (TUBP) is 727.5 mm Hg. Determine the correction factor to adjust maximum O2 saturation to the actual pressure: Correction Factor = [TUBP ÷ 760] = (727.5 ÷ 760)

How accurate are GPS altimeters?

With the Auto Calibration feature turned on, the altimeter accuracy can range from +/- 50 to 125 feet (same as GPS elevation). With a strong GPS connection with WAAS, it’s possible to obtain an accuracy of +/- 25 to 50 feet.

What is alsf2?

The ALSF-2 is an approach lighting system (ALS), which provides the basic means to transition from instrument flight to visual flight for landing. … The ALSF-2 provides visual information on runway alignment, height perception, roll guidance, and horizontal references for Category II/III instrument approaches.
