What is a 5/15 P plug type

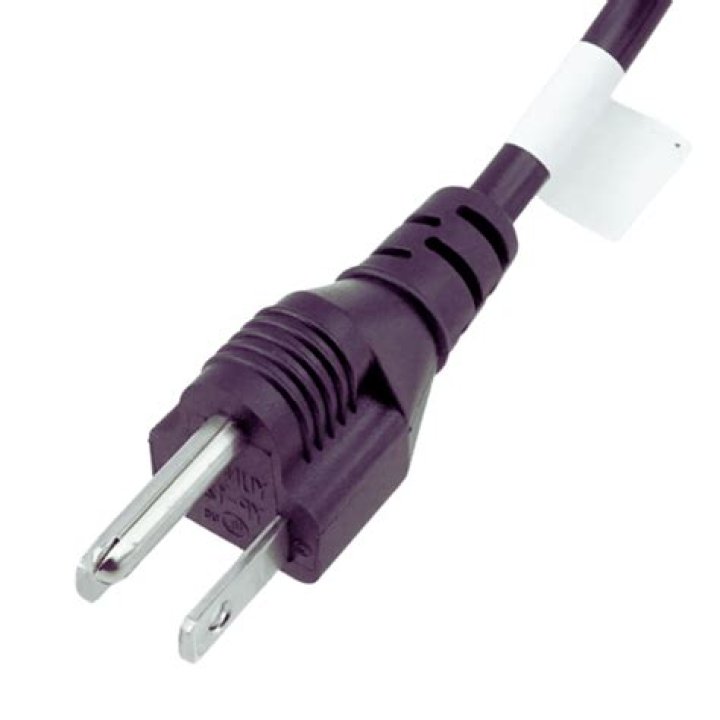

5-15P is your standard household plug used for to connect small appliances such as TV’s, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.

What is a NEMA 14 30 plug?

The NEMA L14-30 twist lock receptacle is the type you usually find on portable generators that provide 240-volt electricity. The plug is rated by the National Electrical Manufacturer Association to supply 240-volt electricity at a maximum current of 30 amps.

What are 5-20P plugs used for?

Use a 5-20P pigtail power adapter to plug an electronic device with a 5-15P or 5-20P power plug on its power cord into a standard 5-20R power strip or outlet. Made with industrial industrial grade plugs and connectors and heavy-duty SJT jacket.

What is a straight blade plug used for?

Bryant Electric straight blade plugs, connectors and receptacles are used to terminate wiring for easy connection/disconnection. Made with impact- and chemical-resistant nylon housings, these devices accept copper wire and are available in a variety of blade styles and voltage/amperage ratings up to 30A.

What does NEMA 5/20 mean?

A 5-20R is a straight blade, 125 volt, 20 amp, receptacle or outlet. In the case of the equipment in our problem, we would need a NEMA 6-15 configuration.

Can you plug a 20 amp appliance into a 15 amp outlet?

It is not possible to fit 20-amp electrical plugs into 15-amp outlets. A 15-amp circuit is usually protected by a 15-amp circuit breaker.

What is a NEMA 5/20 plug?

NEMA 5-20 power cords. Male plug inserts into a 125 Volt receptacle with one blade turned perpendicular to the other. Capable of 20 Amps with 12 AWG or 15 Amps with 14 AWG cord and appropriate female connector.

What is L5 30R used for?

NEMA L5. NEMA L5 connectors are a series of two-pole and ground locking connectors rated for 125 V. L5-30R receptacles are common at marinas that provide power to docked boats. They are also found on some RVs for connecting to shore power.

What is a L14 20 plug?

NEMA Locking L14-20 male Plug power cords. Capable of 20 Amps with 12 AWG cord and appropriate female connector. Locking plugs have the pins arrayed in a circular manner and operate at 125/250 Volts. The plug offers the option of two Hot Lines, Neutral, Ground.

When would you use a locking plug?

These locking plugs and connectors are primarily used by welders, construction workers, contractors, and industrial job sites. In many of these cases, they are using machinery or tools that vibrate a lot, and the workers don’t want to risk having their heavy machinery come unplugged.

Article first time published on

What is straight blade receptacles?

Straight-blade receptacles allow matching straight-blade plugs to be connected to an electrical supply. They are used in settings such as office buildings, factories, and manufacturing plants.

What type of receptacle is used almost exclusively in Denmark and Greenland?

Type K. Used almost exclusively in Denmark & Greenland. Socket compatible with plug types C & K.

What is a 20 amp plug?

20-amp receptacles have a horizontal slot branching off one of the vertical slots. Appliances, such as microwaves, often have 20-amp plugs and must be plugged into a 20-amp outlet. Electrical plugs designated as 20-amp will not fit into 15-amp outlets.

What is a TT 30r outlet?

The best way to identify your connections is with the NEMA code imprinted on the plug or outlet. … Now, let’s look at the NEMA TT-30. This connection is typically used for RVs that require 30 amps, as the connection itself is named “travel trailer.” You will see this connection at campgrounds and on portable generators.

Do I need 20 amp outlets?

Large consumers, especially kitchen appliances, such as microwaves, blenders and toasters, need a dedicated 20 amp circuit, to ensure a constant energy flow, which means they cannot share the circuit with other devices.

What is a NEMA 6 20 plug used for?

NEMA 6-20P Plug The 6-20P has a horizontal and vertical blade to prevent attachment to lower ampere rated receptacles. However, the 6-20R (receptacle) offers a “T” slot allowing connection of both a 6-20P and a 6-15P. Common applications are commercial ovens and large air condition units.

What does NEMA 6 50P mean?

NEMA 6-50P molded heavy duty three prong power cord plug with cUL approval and rated up to 50A 250V. Built to the NEMA 6-50P standard, these NEMA 6-50 power cords are most commonly used for electric welder applications.

Do you need a 20 amp outlet for a 20 amp breaker?

The amperage of the outlet must never exceed the amperage of the circuit. According to National Electrical Code, only a 15–amp or 20-amp electrical receptacle can be installed to a 20-amp circuit.

What happens if you put a 20 amp outlet on a 15 amp circuit?

If your question is “can I connect a receptacle rated for 20 amps to a circuit designed for 15 amps?”, the answer is yes, because the receptacle can handle more current than the circuit is rated for. If you exceed 15 amps, the breaker will blow, and protect the receptacle.

Do I need 20 amp outlets in kitchen?

Kitchens must have at least two 20-amp outlets. These outlets are used to power high voltage appliances such as toasters, blenders, and microwave ovens. … The necessary power supply to operate common kitchenware appliances typically is 20 Amps.

How many sockets can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

What is the difference between L14 30 and L15 30?

L14-30 is for 125/250 VAC single-phase and is commonly called a “generator plug”, found on gensets that serve both 125 and 250 volts. Hot-hot-neutral-ground. L15-30 is 3-phase 250 VAC.

What does L5-30P plug into?

Use an L5-30P pigtail power adapter to plug a device with a 5-15P or 5-20P into a device with an L5-30R power strip receptacle or wall outlet. Uses heavy-duty commercial grade cord ends, and SJOOW water and oil resistant cord. NEMA L5-30P plug to the following connectors: 5-15/20R.

What is L5 cable?

NEMA Locking L5-30 male Plug power cords. Capable of 30 Amps with 10 AWG cord and appropriate female connector. The plug offers the option of two Hot Lines, Neutral, Ground. … The plug is inserted and twisted to lock in place.

What is the difference between L5-30R and L14 30R?

The NEMA L5-30P is a 30 Amp, 125 Volt, 3-prong male plug. The NEMA L14-30R is a 30 Amp, 125/250 Volt, 4-prong female connector. It features nickel-plated terminals and plugs to prevent rusting and has a maximum operating power of 3750W.

Which prong on a plug is positive?

Because we use A/C current, prongs don’t have have a positive and negative. Instead, the two prongs have a ‘hot’ and ‘neutral’ side. The wider prong connects to the neutral wire and the smaller prong smaller prong is the hot side of the circuit.

Which prong is hot on a 3 prong plug?

Some three-prong plugs are also polarized, and when they are, the same rule applies: the larger prong connects to neutral. On a polarized, grounded cord, the smaller prong connects to hot and the semi-rounded pin underneath the two prongs connects to ground.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means.

What is an Edison plug?

An ordinary household electrical plug in the United States. Characterized by having two flat blades and a semi-round ground pin. There are several different variations on this theme: A plug rated at 20 amps will generally have one blade perpindicular to the other.

What voltage is a twist lock plug?

240 volt – Twist Lock – Electrical Plugs & Connectors – Wiring Devices & Light Controls – The Home Depot.

What is Hubbell twist lock?

Twist-Lock® Edge Series with Screwless Terminations It’s the market’s fastest-terminating receptacle, letting installers get more done in less time. Instead of using screws at termination points, a strong levered spring within the device continues to apply pressure as strands relax over time, keeping wires tight.
