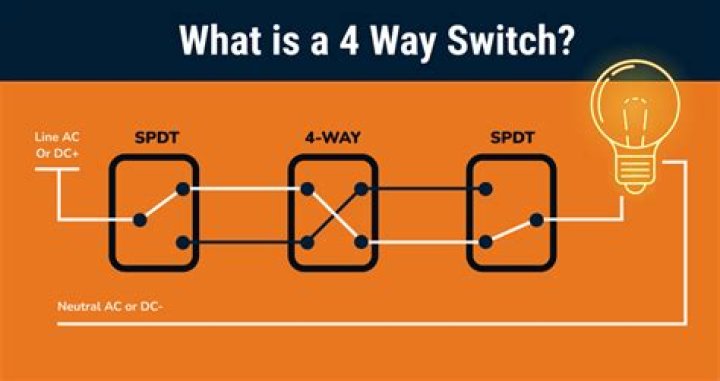

What is a 4 way switching

Four-way switches are used to control lighting from three or more locations. … There are four terminals that provide two sets of toggle positions on a four-way switch. Each set of terminals is one of the toggle positions. When the switch is in the up position, the current can flow through two terminals.

Why is it called a 4 way switch?

Your particular switch is most probably a Double Pole Double Throw (DPDT) switch which has been internally connected to 4 terminals so that it can transpose (or swap) the pair of wires connected to it, each time it is switched. American electricians often call this a “four-way switch”.

What is 4 way switch wiring?

When wiring in the 4 way switch it is most simply described as simply cutting the two traveler wires (the two wires that go between the two 3 way switches and terminate on each switch) and putting two wires from one switch on the top two terminals of the 4 way switch while putting the other two wires from the other …

How do you identify a 4 way switch?

4-way switches have four terminals each with two pairs of travelers (one set usually black and one set usually brass color). A four switch configuration will have two 3-way switches, one on each end and two 4-way switches in the middle.

What are the 4 types of switches?

SPST (Single Pole Single throw)
SPDT (single pole double throw)
DPST (double pole, single throw)
DPDT (double pole double throw)

How can you tell if a switch is 4 way or 3 way?

A three-way switch has three terminals; a four-way has four. These control a light from two or three switch locations, such as at the top and bottom of a stairwell, at either end of a hallway, or in a large room with multiple entrances.

What is another name for a 4 way switch?

A “4-way” (intermediate) switch is a purpose built double pole, double throw (DPDT) switch, internally wired in manufacture to reverse the connections between the input and output and having only four external terminals.

How can we identify a 4 way switch from a double pole switch?

The four-way switch looks similar to a double-pole switch but without markings. It has four terminals plus a ground terminal. The four terminals are usually brass-colored. There is no “COM” or “common” terminal, as is found on a three-way switch.

Can you use a 4 way switch as a single pole?

There are two different types of switches: the single pole and the double pole switch. Double pole light switches, also known as a four-way switch, are two single pole switches put together. … It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.

Does it matter which wire goes where on a 4 way switch?

More videos on YouTube The traveler wires from the two 3-way switches attach to the screws on the four-way switch. Connect the two travelers from one 3-way switch to the bottom two screws on the 4-way switch. It doesn’t matter which traveler wire goes on which bottom screw.

Article first time published on

Can you use a 4 way switch as a 3 way switch?

3 Answers. Sure, a 4-way is essentially two 3-ways in one device. Usually a 4 way switch has 2 (IN) screws and 2 (OUT) screws. Using one of the (IN) terminals is the same as the common terminal on a 3 way.

How does a 4-way stop work?

When two vehicles arrive at a 4-way stop at the same time side-by-side, the vehicle furthest to the right has the right of way. If three vehicles arrive at the same time, the car furthest left should continue to yield until both of the other cars to the right of them have passed.

What are the 3 types of switches?

The three types of mechanical switches are linear, tactile, and clicky.

What is a 3-way switch?

A 3-way switch is larger than a single pole switch and has three screw terminals for wiring connections, plus a ground. Two of these take traveler wires that go from one switch to the other. For the third terminal, one switch is connected to the hot supply wire while the other switch is joined to the light.

What are the different types of switch?

ONE-WAY (SINGLE-POLE) ELECTRICAL SWITCH. A one-way or single-pole electrical switch is the most common one in use. …
TWO-WAY (DOUBLE-POLE) ELECTRICAL SWITCH. …
DO NOT DISTURB SWITCH. …
LIGHT DIMMER / STEPLESS REGULATOR. …
BELL PUSH SWITCH.

Is there a 5 way switch?

The 5-way Strat switch is the most common switch you’ll find in Stratocaster guitars. … Finally, in 1977 Fender made the 5-way Strat switch a standard feature in their guitars. Both 3-way and 5-way switches are wired the same. The only difference is the 5-way has a few more indents (Fig 4).

Why is it called a three way switch?

Circuits controlled by two (single pole, double throw) switches are called three-way by convention to distinguish them from circuits controlled by one (single pole, single throw) switch, which may be considered two-way (on, off). Clearly, three-way switches also arguably have only two functional states (on, off).

Can you install a dimmer on a 4 way switch?

Anyway, in a 4-way circuit (or more-way), you can replace either 3-way on/off switch (which will either be the first or last switch) with a 3-way dimmer. But it must be a 3-way dimmer, not a basic dimmer.

What is in and out on a 4-way switch?

A 4-way switch has four terminals (do not confuse with and purchase a 2-pole switch by mistake). The 4-way terminals are labeled “In” and “Out” (two of each). The mechanics of this switch are simple, in that they either switch the travellers straight through, or criss-cross them.

What are the black terminals on a 4-way switch?

The Anatomy a 4-Way Switch The right side black terminal connects to the right side brass terminal. When the toggle is in the other position, the left side black terminal connects to the right side brass terminal. The right side black terminal connects to the left side brass terminal.

What color wire goes to the black screw on a 4 way switch?

The white wire from the power source will attach to the light’s white wire. The light’s black wire should be attached to the black wire running to the first switch. At the switch the white wire (hot) coming from the light, will be connected to the dark colored screw.

How do you hook up a 4 way switch?

Take the existing wires that are now connected to the other 2 traveller terminals, and connect them to the “in” or the “out” terminals of the new 4-way switch. Connect the returning travellers from the new switch box location (red and white), and connect them to the “in” or the “out” terminals on the new 4-way switch.

What are the 4 wires in a light fixture?

A four-wire electrical line has a red hot wire, a black hot wire, a white common wire and a ground wire. A two-wire line is usually a black hot wire and a white common wire. The ground may be there, but it may not be connected.

Why do some light switches have 4 wires?

2 Answers. Vivek, as you said in your answer, the other black wire feeds the remaining devices on the circuit. When you switched the connections around, you changed it so the additional devices in the circuit would be interrupted.
