What is a 170 degree hinge

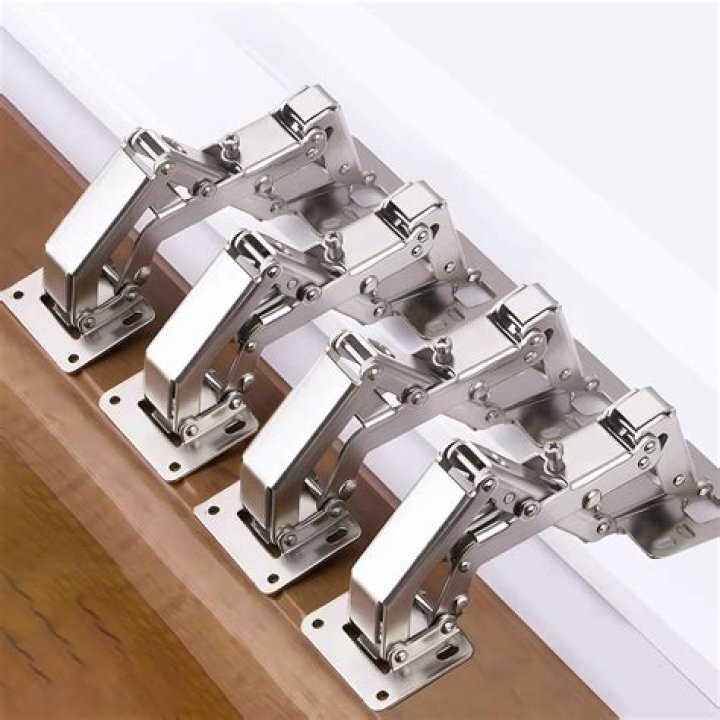

Blum 170 Degree Hinge – Cabinet Door Hinges. This wide angle clip top hinge allows the cabinet door to open 170 degrees enabling full access to the stored contents within. The hinges are metal alloy with a durable nickel coating and are compatible with all mounting plates in Blum’s Clip Top range.

What is a 170 degree hinge used for?

Blum 170 Degree Hinge – Cabinet Door Hinges. This wide angle clip top hinge allows the cabinet door to open 170 degrees enabling full access to the stored contents within. The hinges are metal alloy with a durable nickel coating and are compatible with all mounting plates in Blum’s Clip Top range.

What is a 165 degree hinge for?

This Titus clip on, 165 degree hinge is ideal for standard kitchen cabinet doors. For an added bonus these hinges are soft close, so you can say goodbye to slamming kitchen cabinet doors.

What does the degrees mean on cabinet hinges?

One element of these hinges that’s always specified but rarely explained is degree of opening. Think of the degree of opening as the cabinet door’s range of travel from a closed position (0°) to a fully open position (anywhere from 90° to 170°), and then choose based on the application.

How do I know what hinges to buy?

You should check the diameter of the hole in the door that your current hinge sits in – these are usually 26mm, 35mm or 40mm for larger hinges. It’s important to measure the hole in the door and not the hinge itself as the hinge may be slightly smaller.

How do you adjust a 165 degree hinge?

To adjust door up and down, turn the screw in the centre of the hinge (located on the plate)
To adjust door in and out, turn the screw at the rear of the hinge.
To adjust the door from side to side, turn the screw to the front of the hinge arm.

How do you adjust a 170 degree cabinet hinge?

Mount the doors by clipping the hinge arms onto the mounting plates. All measurements are in millimeters. Turning this screw clockwise adjusts the door down; counterclockwise, up. Turning this screw clockwise adjusts the door inward; counterclockwise, outward.

What is a full overlay cabinet hinge?

For inset doors, the most common hinges are butt hinge or surface mount, and inset European. Full Overlay: Also simply called overlay, a full overlay door covers the entire cabinet opening when closed, and the inside wood edge of the cabinet box is exposed when the door is open.

Can a door open 180 degrees?

When doors are open, they often take up some of the interior space and are in the way. When doors open 180 degrees, they are out of the way and the rest of the room can function as normal because there is no door to watch out for!

How do you identify Blum hinges?

Distinguishing feature of BLUMOTION for doors You will find the Blum logo embossed on the housing of clip-on BLUMOTION.

Article first time published on

What is a 1/2 inch overlay hinge?

1/2″ overlay hinges are the most common overlay of cabinet hinge. These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door. … These are used in face frame cabinets where the door covers a 1/2″ of the face frame all the way around the cabinet door.

How do you measure for kitchen hinges?

If the door has three hinge holes, measure from the top edge of the door to the centre of the hinge in the middle. …
If the door has four hinge holes, measure the two top hinges from the top edge of the door to the centre of each hinge.

Which door hinge is best?

The butt hinge is one of the most popular types of plain bearing door hinges that are good for heavy doors. The butt hinge gets its name because both leaves are mortised into the door, allowing them to butt up against each other when the door is closed.

How do you adjust old cabinet hinges?

Cabinet Doors Rubbing Against Each Other You can correct the problem by adjusting the hinges on each of the doors. Look for two screws on the hinge. Loosen the screw nearest to the cabinet door a bit — enough to allow you to adjust the hinge to the left or to the right. You’ll have to try one direction per time.

How much adjustment do Blum hinges have?

There are 3 adjustments, in/out, up/down, and right/left. This allows for a perfect fit and alignment.

How do I know what cabinet hinges I have?

The construction of your cabinet – most notably, the overlay of the face frame and the cabinet door – determines which cabinet hinge you need. Similarly, where your drawer slides need to be mounted dictates what type of drawer slide you need.

What size hinges for kitchen cabinets?

Concealed hinges come in many versions but only two sizes, these are 26mm and 35mm. Concealed hinges are the hinges most commonly used on kitchen cabinet doors. 26mm concealed hinges are used in light units like bathroom cabinets and were oten used on budget kitchen cabinets to keep the price down.

What kind of hinge opens 180 degrees?

Wide throw hinges are used when you need extra clearance behind a door – typically a door that opens 180 degrees.

What is hinge clearance?

Hinge/open leaf width – This is the overall width of the opened hinge, measured perpendicular to the hinge pin. … This is the distance the edge of the hinge is set back from the door face. Clearance – Clearance is best described as the gap between the door and the frame or jamb with the door in the fully open position.

What are 180 degree hinges?

180 Degree Hinge – A projection hinge or parliament hinge projects doors clear of obstructions and the parliament hinges allow doors to fold back 180 degrees.

What is a full wrap hinge?

Add Visible Function to Your Cabinets with Wrap Hinges In addition to helping your cabinets function, hinges also come in a variety of different styles. … Full wrap hinges wrap around both sides of the frame, while partial wrap hinges are less visible and only wrap the back portion of the frame.

What is a demountable hinge?

Demountable Hinges These hinges allow you to remove the door if you want to do so for cleaning or for other reasons. There are both single and double demountable hinges. Single demountable hinges install with screws to the face of the cabinet frame, and the hinge slips into a slot on the edge of the door.

What is a flush mount hinge?

A flush hinge is a type of specialty hardware used to hang a door. Unlike standard butt hinges, flush hinges are designed to fit within a pocket cut into the door and frame, which allows the surface of the hinge plates to sit flush with the surface of the door or frame.

What is Blum mounting plate spacing?

Blum CLIP Cruciform Cabinet Mounting Plate – Screw On – 3mm Spacing – Pressed Steel – Pair.

What are the types of hinges?

Ball Bearing Hinge. The ball bearing hinge has lubricated bearings between the hinge’s knuckles to reduce friction caused by heavy doors. …
Spring-Loaded Butt Hinge. …
Barrel Hinge. …
Concealed Hinge. …
Overlay Hinge. …
Offset Hinge. …
Piano Hinge. …
Strap Hinge.

What is a Modul hinge?

Blum MODUL hinges have been tried and tested over many years. The hinge delivers easy slide-on and screw-fix feature to cabinet assembly. Blum MODUL hinges 3-dimensional adjustment feature guarantees perfect gap alignment.

How do you measure hinges UK?

Know Your Way Around A Hinge: Hinges are measured from top to bottom and side to side. This bit is pretty straightforward. You’ll then need to be able to discern radius corners from square corners. A square corner has that sharp angle like a square.

Are soft close hinges adjustable?

TEC Soft-close hinges are more convenient than ever. Each hinge is adjustable to fit any door, and close to any pressure. Side Adjustment Rotate cam adjustment screw.

Why is my soft close cabinet slams shut?

The cabinet door might overlap the neighboring door, be crooked or sit too far out from the cabinet face. … If your soft close cabinet slams shut, it could be because the door is overlapping the neighboring door and hitting it before the soft-closing mechanism has a chance to fully engage.

Can I change my cabinet hinges to soft close?

The soft close hinge helps to reduce the force of how you close your cabinet doors. It reduces the speed at which the door closes so it does not shut with a bang. You can get a conversion kit to do your soft close. These kits typically come with a damper, screws, and spacer.
