What gauge is magnet wire

Magnet wire is copper wire with a thin layer of insulation, and is used in a variety of applications including transformers, wound coils, motors, solenoids, and instruments.

How do I choose a magnet wire?

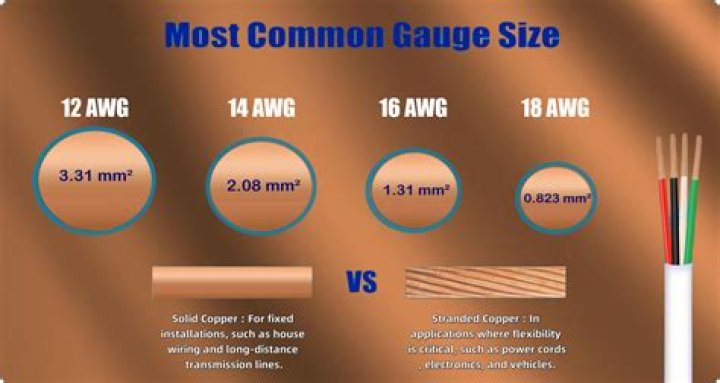

1. Select the gauge. The lower the number, the thicker the wire.
2. Select wire color and insulation.
3. Select spool size. See the available increments below.
4. 8 AWG. (Diameter: 0.132 in) …
5. 9 AWG. (Diameter: 0.1174 in) …
6. 10 AWG. (Diameter: 0.1054 in) …
7. 11 AWG. (Diameter: 0.0942 in) …
8. 12 AWG. (Diameter: 0.0842 in)

What is special about magnet wire?

Magnet wire types can be quite varied but will include the following features: (a) uniformity of insulation, (b) good electrical properties like dielectric strength and insulation resistance, (c) resistance to mechanical stress, (d) resistance to chemicals, solvents, and encapsulating varnishes, (e) thermal resistance, …

Is copper wire and magnet wire the same?

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. … The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors.

How thick is magnet wire insulation?

Single insulation thickness for a 24 gauge wire can be 0.0010 inches, and 0.0019 inches for a heavy build. For 40 gauge wire, single build can be 0.0002 inches, and 0.0006 inches for heavy build. Larger insulation builds are used to make the wire stronger or to offer more protection.

What is heavy build magnet wire?

Magnet wire is bare copper wire coated with insulation to prevent shorting of wound coils. … Single build is a standard, where as heavy build adds double the amount of insulation to further protect the wire from shorting out.

Does magnet wire get hot?

Unlike ordinary magnets, electromagnets heat up. … Basically, electromagnets are coils of wire wrapped around a metal core, which in turn are connected to a battery. Although they are easy to make, they can have a problem with overheating if given more voltage than their wires can withstand.

What is magnet wire insulation?

What is magnet wire? It is an insulated copper or aluminum conductor typically used to wind electromagnetic devices such as motors and transformers. The insulation may be a thin film of varnish called enamel; a fibrous polyester or fiberglass yarn; or a combination of both enamel and fibrous insulations.

What is enamel coated magnet wire?

Magnet wire, also known as winding wire or enameled wire, is a copper or aluminum wire coated with a thin insulation and is a principal component of transformers, inductors, motors, and other electrical devices. The enamel is typically a polymer film that provides a tough continuous layer of insulation.

What is the difference between magnet wire and regular wire?

Magnet wire is coated with an enamel insulation vs a plastic or rubber coating. Magnet wire also comes in thinner gauges and is solid wire vs regular wire which has larger sizes and also comes in a stranded version. Magnet wire is copper wire with thin enamel insulation, instead of the usual thicker plastic.

Article first time published on

What happens when you wrap copper wire around a magnet?

When the electric current moves through a wire, it makes a magnetic field. If you coil the wire around and around, it will make the magnetic force stronger, but it will still be pretty weak. Putting a piece of iron or steel inside the coil makes the magnet strong enough to attract objects.

What type of wire is best for an electromagnet?

Solid copper wire is better because it can usually carry more current. It is best to have a large amount of copper to keep the resistance down. It is also good to have a lot of turns to make better use of the available current. Copper has the lowest resistance at room temperature, so its a great choice.

How is magnet wire made?

Magnet wire is a thinly insulated wire made of either purified and fully-annealed copper or aluminum. When coiled and energized by an electrical power source the wire will produce an electromagnetic field.

Why copper wire is coated?

To prevent accelerated corrosion, tinned copper conductors can be used as an added layer of protection. … The tin coating on the copper protects the wire from corrosion and premature cable failure.

Is all copper wire the same?

And the use of copper wire in modern power and communication grids and electronic items creates an abundance of copper wire scrap as these systems and products get updated. However, not all copper wire is the same. It’s important to know which types of copper wire scrap you have because copper wires vary in value.

What is SWG in mm?

1 Swg = 0.300” / 7.620mm16 Swg = 0.064” / 1.626mm5 Swg = 0.212” / 5.385mm20 Swg = 0.036” / 0.914mm6 Swg = 0.192” / 4.877mm21 Swg = 0.032” / 0.813mm7 Swg = 0.176” / 4.470mm22 Swg = 0.028” / 0.711mm8 Swg = 0.160” / 4.064mm23 Swg = 0.024” / 0.610mm

What is copper wire?

Copper is the electrical conductor in many categories of electrical wiring. Copper wire is used in power generation, power transmission, power distribution, telecommunications, electronics circuitry, and countless types of electrical equipment. Copper and its alloys are also used to make electrical contacts.

How can you make an electromagnet repel?

Take your magnet away from the metal and turn it around so the opposite end (the opposite pole) is now facing the metal that you just magnetized. Push the magnet toward the metal and, because the metal was magnetized by the opposite pole, the magnet should now repel the metal.

Why do coils of wire get hot?

The resistance caused by the outer coiled wire creates heat and magnetism. Electrical energy passes from the outer coil to the inner coil and in doing so the voltage reduces. If you roll up wire into a coil, such as an extension lead and then plug in an appliance, you will find the wire starts to get hot to the touch.

Why do magnets heat up?

Even a single bar magnet of ordinary dimensions will slightly heat up as it gradually loses its magnetism. The reason is this. Having its magnetic domains lined up raises its magnetic field energy. That energy can be lowered if the domains lose alignment.

What is Litz wire used for?

Litz wire is a particular type of multistrand wire or cable used in electronics to carry alternating current (AC) at radio frequencies. The wire is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz.

What are stranded wires?

What is Stranded Wire? These thin, bundled wires are compressed and insulated with non-conductive materials. Stranded wire is more flexible, making it ideal for connecting electronic components in cramped spaces or for twisting and bending to fit intricate geometries.

Where does wire come from?

A wire is a single usually cylindrical, flexible strand or rod of metal. Wires are used to bear mechanical loads or electricity and telecommunications signals. Wire is commonly formed by drawing the metal through a hole in a die or draw plate.

Is enameled copper wire conductive?

Copper’s highly conductive properties make it the perfect metal for electrical applications, and it can be fully annealed and electrolytically refined to allow for closer winding for electromagnetic coils. …

What is the meaning of enamelled in English?

Definition of enamel (Entry 1 of 2) transitive verb. 1 : to cover, inlay, or decorate with enamel. 2 : to beautify with a colorful surface. 3 : to form a glossy surface on (a material, such as paper, leather, or cloth)

What type of wiring is used in new homes?

The most common type of wiring in modern homes is in the form of nonmetallic (NM) cable, which consists of two or more individual wires wrapped inside a protective plastic sheathing. NM cable usually contains one or more “hot” (current-carrying) wires, a neutral wire, and a ground wire.

What type of wiring device is outlet?

Electrical receptacles are also known as sockets or outlets. These are wiring devices that connect electrical devices to an electricity supply and allow for the proper flow of current in order for the devices to run.

Can a magnet power a light bulb?

Lighting a bulb with just a magnet is not possible but if you have a conductor besides a magnetic field and if you can create a flux linkage to produce a dc current, you can surely light a bulb.

How can you make a magnet stronger at home?

If you can find a very strong magnet, repeatedly rub it across your weakened magnet. The strong magnet will realign the magnetic domains inside the weakened magnet [source: Luminaltech]. Magnet stacking One way to make weak magnets stronger is by stacking more of them together.

How long does it take for a magnet to lose its strength?

The answer depends on the magnet. A temporary magnet can lose its magnetization in less than 1 hour. Neodymium magnets lose less than 1% of their strength over 10 years. Permanent magnets such as sintered Nd-Fe-B magnets remain magnetized indefinitely.

Does wire gauge affect electromagnet?

The strength of an electromagnet can be affected by various factors such as no. of coils, the specific resistance of the wire used to coil the core, the thickness of the wire, etc. Thus, it is true that the thickness of the wire affects the strength of the electromagnet.
