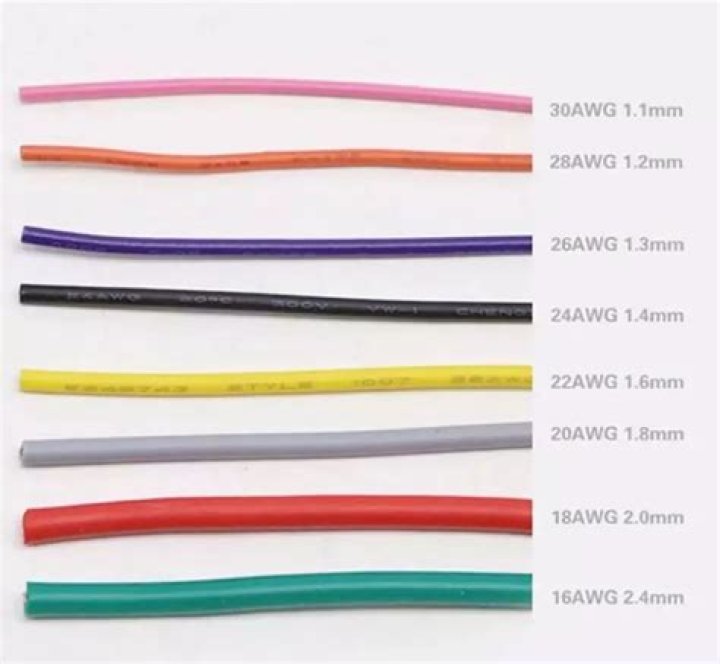

What gauge is bell wire

Doorbells are typically wired with 18 gauge wire, also referred to as “bell” wire. Terminals on the buzzer/bell are commonly labeled “F”, “R”, and “C”.

Can I use 22 gauge wire for a doorbell?

22-Gauge Wire (Unusable) A 22-gauge wire is a bit on the thin side and may not provide all the power that the Ring Video Doorbell Pro needs. To determine if your wire is 22-gauge, unfold a standard paper clip.

What gauge is housing wire?

Wire Gauge The most common sizes you’ll find in residential work are 14-gauge and 12-gauge. Larger appliances such as electric stoves, electric water heaters, electric dryers and central air units will often use 10-, 8- or even 6-gauge wire.

What is Bell wire rated for?

Commonly used for low-voltage battery or transformer circuits, including connecting call bells, buzzer systems, door chimes, and furnace controls. Bell Wire conductor is rated for use up to 60°C.

Can Bell wire take 24v?

I added the wirewound resistor to one leg and connected it to the 24v output and read perfectly fine this time on the door bell wires and works fine now. Thank you for your time.

Is Bell wire stranded or solid?

A: Yes, this wire is a solid core wire, two strands.

Can you use CAT5 for doorbell wire?

CAT5 cables are generally designed for communication and not for power — but that works well when a doorbell is concerned.

What size is 16g wire?

GAUGESWG DIAMETER (Inches)AWG DIAMETER (Millimeters)12 Gauge Wire0.1040 in2.052 mm14 Gauge Wire0.0800 in1.626 mm16 Gauge Wire0.0640 in1.290 mm18 Gauge Wire0.0480 in1.024 mm

How many volts can bell wire carry?

Bell wire, often used for bell circuits or for wiring loudspeakers, is in most cases, only suitable for extra-low voltage (50 V or less).

How far can you run bell wire?

The resistance of #12 copper wire is 1.6 ohms/1000 feet. So the maximum length of wire = (. 4/1.6) x 1000 = 250 feet, out plus back. Maximum run is 125 feet.

Article first time published on

How do I know if my wire is 12 or 14 gauge?

Here’s a simple visual. Twelve gauge is about the thickness of a nickel, and 14-gauge is about the thickness of a dime. Also, look at the breaker for the circuit in question to see if it’s a 15-amp or a 20-amp breaker. A 20-amp circuit requires wire that’s 12-gauge or larger.

How do I know what gauge wire to use?

To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.

Can you use 14 gauge wire for outlets?

Yes you may use No. 14 AWG Cu wire for outlets but the Circuit Breaker to protect the circuit should be only 15A. Do not use 20A Circuit Breaker for this circuit. Also, use only 15A receptacles.

What is a 18 gauge wire?

An 18 awg solid bare copper wire is the most basic because it doesn’t even have insulation at all. It’s a solid piece of copper used as a ground wire for most electrical applications. … It’s manufactured with a PTFE insulation and silver plated copper strands rating it as high as 200°C.

Does ring doorbell work on 12v?

It works with a 12v battery. The battery is DC hence wiring it with dc current it should work.

Can you use stranded wire for doorbell?

If you purchase the different pieces of a doorbell a la carte, be sure to buy a length of two-stranded and three-stranded wire, as your bell will not sound without these. Begin with the two-stranded wire: you will wire this so that it goes from the transformer down to the doorbell button on your home’s exterior.

Is ring doorbell a PoE?

Ring Video Doorbell ProRing Video Doorbell ElitePower OptionsHardwire to existing doorbell kit onlyPower over Ethernet (PoE)Battery Lifen/an/a

How does ring PoE work?

PoE allows you to supply power to a networking device using the same cable that transmits the data. If you have such a device it will automatically detect when it is connected to a PoE-capable device such as a Ring Stick Up Cam Elite and provide the device with power.

What gauge is garage door wire?

041A0323 is a 2 conductor, 22 gauge bell wiring set (red/white) that is used to wire the wall mounted door controls and operation terminals on various garage door openers. Check the manual for your specific model number before ordering to ensure compatibility.

What gauge is speaker wire?

Speaker wires that are anywhere between 12 to 16 gauge are most commonly used for connecting speakers to an amplifier or an Audio/Video (A/V) receiver. A lower-gauge number indicates a thicker wire, while a higher-gauge number indicates a thinner wire.

How many mm is 16 gauge?

Wire Number (Gauge)A.W.G. or B&S (Inches)A.W.G. Metric (MM)140.0641″1.628mm150.0571″1.45mm160.0508″1.291mm170.0453″1.15mm

Where would you use SWA cable?

What is an SWA Armoured Cable? Commonly known as SWA cable, the steel wire armoured cable is a power and auxiliary control cable, designed for use in mains supply electricity. Used for underground systems, cable networks, power networks, outdoor and indoor applications, and cable ducting.

What is zip cord wire used for?

Zip cord is an electrical wire notable for having two or more conductors that are parallel bonded. Their insulated jackets can be easily separated from one another by being pulled apart. This cable is an economical alternative to jacketed cable. It is ideal for low voltage lights, trailer lights, and DC circuits.

What is electrical pressure called?

The term to describe pressure in electricity terms is ‘voltage‘. It’s measured in volts using a voltmeter.

Which is thicker 12 or 14 gauge wire?

A 12 gauge low voltage wire has a diameter of roughly 0.0808 inches (2.053 mm), whereas 14 AWG wire has a diameter of around 0.0641 inches (1.628 mm). It is thus 26 percent thicker and 59 percent larger in a cross-sectional area compared to 14 gauge wire.

Which is thicker 10 gauge or 12 gauge wire?

The general rule of thumb is that the smaller the gauge number, the thicker the cable.

Which is thicker 20 or 24 gauge wire?

“Gauge” refers to the thickness of wire. The higher the gauge number, the thinner the metal. For example, 10 gauge would be much thicker than 15 gauge. Most of our earrings have a post, or part of the earring that slips through the ear, between 19 gauge (thickest) to 24 gauge (thinnest).

Is 14 AWG the same as 14 gauge?

In effect, 14AWG will be heavier than something labeled 14 gauge, the 14 gauge being equivalent to perhaps 16AWG or 17AWG. Do you find this helpful? AWG is American Wire Gauge. So no, there’s no difference.

Is 12 gauge wire always yellow?

Yellow color-coded cable sheathing encloses 12-gauge wires. Yellow 12-gauge cable is typically used for 20-amp circuits that power general household outlets used for a variety of plug-in appliances. Dedicated appliance circuits also call for 20-amp circuits in most cases.

Is 14 gauge wire always white?

The size of the wire is denoted by its gauge (in the US, at least): #14, for example. The color of the insulation is sometimes an indication of its purpose, although that’s not always the case. Black is usually hot, white is usually neutral, red is switched-hot or traveller – but again, these are standards, not rules.

What gauge wire do I need 12v?

American Wire Gauge (#AWG)Length (feet)Maximum Current (amps)301264012650104
