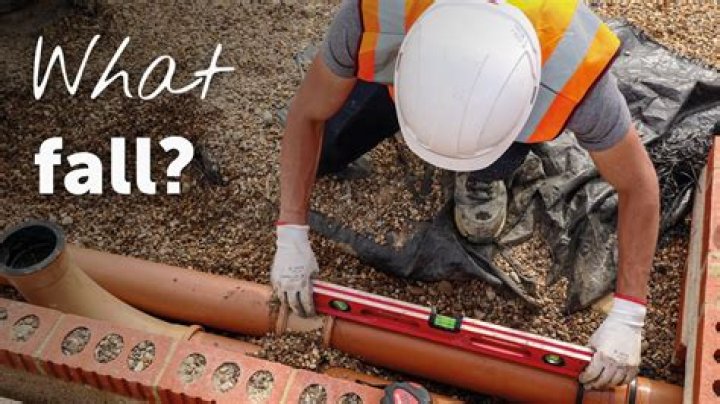

What fall should a waste pipe have

PIPE DIAMETERMINIMUM SLOPE2 1/2″ or smaller1/4″ per foot3″ to 6″1/8″ per foot8″ or larger1/16″ per foot

What is the typical slope of a waste pipe?

Improper drain slope You probably know that drains need to flow downhill into your sewer. But do you know the proper slope? The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically.

What is the correct fall for 40mm waste pipe?

Soil and waste pipe system design and installation The “fall” or “drop” should be between 1/40 (1cm down for every 40cm across) and 1/110. Too steep (1/10) then the water runs quicker than the solids so doesn’t wash them away (ugh!).

What drop should a waste pipe have?

A gradient of 1 in 80 is suitable for commencing calculations for pipe schemes. If the gradient is less than 1 in 110, then the pipe could still block if the solids slow down and become stranded.

How much should a drain line drop?

Pipes must slope slightly downhill to drain properly. The standard slope is anywhere from ¼ inch to 3 inches per foot depending on the use.

What is the fall on a 4 inch sewer pipe?

For 4-inch PVC piping and a building sewer less than 50 feet long, the minimum slope is 1 inch in 8 feet, or 1/8-inch per foot, and the maximum is 1/4-inch per foot. For sewers longer than 50 feet, the slope should be 1/4-inch per foot.

What is a 1% slope for drainage?

All of your drain pipe (with one exception) must slope slightly downhill. Usually 1/8″ per foot is plenty for drainage, this is the same as the commonly recommended 1% slope.

What is the minimum slope for water flow?

Generally, minimum slope for water to run off is 1% (1/8″ per 1′).

What is a 1 40 fall?

What is a 1 in 40 fall? A 1 in 40 pipe fall means that for every 40 units of length, the pipe will drop by 1 unit. For example, in a 40 metre run of pipe, the vertical drop of that pipe run will be 1 metre.

Can a toilet drain drop straight down?

When the toilet drain reaches a vertical wall, it drops straight down between wall studs. Although this is a vertical drop, don’t use standard 90-degree plumbing elbows, called “hard 90s,” to connect the pipes. The sharp corners on these elbow fittings can increase the risk of clogs.

Article first time published on

How far can you run 50mm waste pipe?

The wetroom waste pipe should be 40mm minimum diameter solvent weld, with a maximum horizontal run of 3m or 50mm diameter can be 4m. If you need a longer run then an air admittance valve should be added to the pipework making runs up to 10m possible.

Do waste pipes need to be vented?

Waste is produced at fixtures such as toilets, sinks, and showers. As the water runs down, proper venting is required to avoid a vacuum from being created. As the water runs down air must be allowed into the waste pipe either through a roof vent, or the “drain waste vent” (DWV).

How many bends can a soil pipe have?

Bends. Bends at the base of stacks should be of long radius. Two 45° bends may be used as an alternative.

What is the minimum depth of a sewer line?

On average, trenches should be around 12-24 inches-deep, and wide enough to house your pipe comfortably before filling it in with soil and sod. As we’ve mentioned, in cold weather regions, this will need to be deeper or you’ll have problems with your sewage freezing.

What is the minimum diameter of pipes used for drainage of waste water?

Explanation: Normally a minimum of 75 mm diameter pipes are used for drainage of waste water.

How deep should a drain pipe be?

Maintaining a depth of 12 to 18 inches is best for drain pipes, but the depth of the pipe may vary in order to maintain a downward slope, which is critical for proper drain functioning.

What is the maximum slope for sewer pipe?

What is the maximum slope allowed? The “no” zone is anything between: 1/2″ per foot and a 45 degree angle.

What is the minimum slope for a 4 inch horizontal drainage pipe?

Horizontal drainage piping shall be run in practical alignment and a uniform slope of not less than 1/4 inch per foot (20.8 mm/m) or 2 percent toward the point of disposal provided that, where it is impractical due to the depth of the street sewer, to the structural features, or to the arrangement of a building or …

How do you calculate fall in a pipe?

Multiply the length of the pipe (x) by the inches needed to slope the line (y) This equals height difference (z) between the beginning and end of the pipe (x) ⋅ (y)=(z) Example: If your pipe is 10 feet, and it needs to slope ½ an inch per foot, the equation would be 10 ⋅ ½ = 5 inches.

What is the minimum gradient for a 100mm sewage pipe?

Be laid at a minimum gradient of 1:60 for 100 ∅ and 1:100 for 150 ∅ pipes.

How do you determine the slope of a sewer line?

b) To determine the pipe slope, subtract the two manhole inverts and divide the difference by the pipe distance and multiply by one hundred (100) to obtain the percent grade of the pipe.

How deep is a toilet drain?

12 inches is the most common toilet rough-in size. However, it’s useful to know that toilet’s also come in: 10-inch rough-in. 14-inch rough-in.

How deep is a toilet sewer line?

If your home has one or two toilets, the standard toilet sewer pipe size is 3 inches. The sewer pipe connects to the toilet flange beneath the toilet, and this flange is a standard 3 inches.

How far away can vent be from toilet?

According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.

What size should a bath waste pipe be?

Plastic waste pipe is available in 4 basic sizes (external diameter) for different plumbing uses: 21.5mm – for overflows such as cold water tank, cisterns etc. 32mm – for hand basin waste pipe. 40mm – for sink and bath waste pipe.

What is 50mm waste pipe used for?

x 3mtr Black. Waste pipes are used to convey waste water, often referred to as foul drainage, to the above or below ground drainage system.

How long can a waste pipe be?

The limits can be very restrictive and are as little as 1.7m for a 32mm waste pipe to a wash hand basin. By increasing the size of the pipe, you can place the fitting further away – typically between 3 and 4m away for a 50mm pipe.

Can you connect sink waste to toilet waste?

Yes, but the sink must empty into the toilet drain. Toilets have the largest drainpipe, so plumbers empty the bathroom sink drain, which is smaller in diameter, into the toilet drain line. They install a common vent that allows water and waste to drain without forming an airlock.

How high should a stink pipe be?

The International Plumbing Code (IPC), requires plumbing vent pipes to extend vertically at least 152 mm (6 in.) above a roof, per Section 905.5, “Vent Connections and Grades.” Additionally, vent pipes must be at least 305 mm (12 in.) away from a vertical surface.

Why does my stink pipe smell?

Causes of Plumbing Vent Odors: You get odors in plumbing from what’s inside the pipes, so if you have a clog, the sludge inside the pipe can be causing the foul odor. It doesn’t have to be human waste, it can come from hair, soap, skin cells, body washes and other stuff that makes its way into the drain.

Does a waste stack have to be straight?

Vent pipes must be installed so they stay dry. This means that they should emerge from the top of the drainpipe, either straight vertically or at no less than a 45-degree angle from horizontal, so that water cannot back up into them.
