What does the Txv valve do

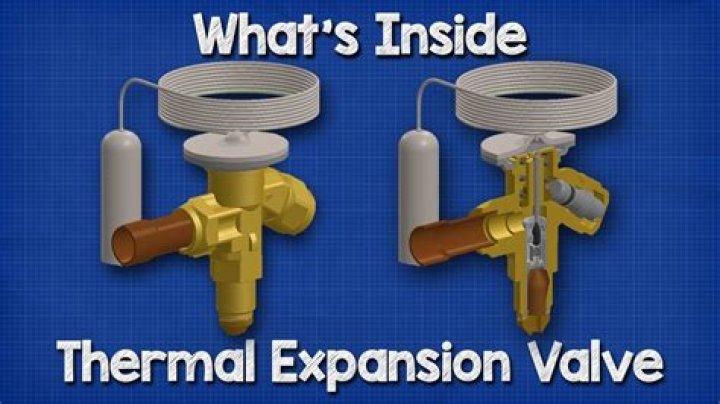

A thermostatic expansion valve (TXV) (see Figure 1) is a refrigeration and air conditioning throttling device that controls the amount of refrigerant liquid injected into a system’s evaporator—based on the evaporator outlet temperature and pressure—called the superheat.

What happens when TXV valve goes bad?

The symptoms are low suction, normal subcooling, and high superheat when a TXV fails “shut,” but there are some other issues to watch for that can actually result in overfeeding the coil.…

What happens when you adjust a TXV valve?

The TXV cannot be adjusted open or closed, it is a modulating valve. Turning the adjustment stem clockwise will only increase spring pressure causing a higher superheat. Turning the adjustment stem counterclockwise will decrease spring pressure reducing superheat.

Is a TXV valve necessary?

The Thermal Expansion Valve (TXV) is an important piece of equipment in the HVAC industry. The valve is used to control the amount of refrigerant released to the evaporator section. In this way it controls the difference between superheat and the current refrigerant temperature at the evaporator outlet.

How do you diagnose a failed TXV?

Check the subcooling, superheat and pressures again. If there’s no change, that’s a further indication of a TXV problem. Another test is to put the sensing bulb in ice water and checking the pressures superheat, and subcooling again. If they don’t change, it’s a bad TXV.

Can you unstick a TXV valve?

Opening of the valve should be relatively quick. Even holding he bulb in your hand should provide enough heat to open the valve. Next, place the TXV bulb into cold water. … In some instances where the TXV is stuck, a lubricant additive like A/C ReNew may be added to the refrigerant system to help free the valve.

How much does it cost to replace a TXV valve?

A TXV (Thermal Expansion Valve) is a necessary component used in HVAC systems to help adjust the boiling point of the refrigerant. If it needs to be replaced, the cost will vary on replacement parts, labor, and location. The average total cost of replacing a TXV Valve is $750-$1200.

Do you need a TXV for a heat pump?

A TXV with a low superheat range is needed. The capillary tube used on the indoor coil keeps down expense. On some “deluxe” units, the cap tube will be replaced with a standard air conditioning TXV.

Do all HVAC systems have a TXV?

Today, an indoor TXV is included with most gas furnaces and air conditioning systems on the market — although it should be noted that these do typically have to be installed separately. If you have a system that did not come with a TXV, it is also possible to buy one separately and install it yourself.

Does 410a need TXV?

The TXV determines which refrigerant can be used with a coil. Most new coils can be used with either R22 or R410A providing that the correct TXV is used. … You may not achieve 13 SEER with the old coil but you will improve efficiency. When adding a TXV to a piston type coil, an equalizer line must be added.

Article first time published on

Do you check superheat or subcooling for TXV?

If the metering device is a fixed orifice such as a piston or capillary tube, the refrigerant charge of the system can be checked with Total Superheat. If the metering device is a TXV then the refrigerant charge can be checked with Subcooling.

Will a bad TXV cause coil to freeze?

Bad Thermal Expansion Valve Another reason for frozen lines in an AC unit is due to a faulty thermal expansion valve, also known as a TXV. This controls the flow of refrigerant through your AC unit. If this malfunctions then not enough refrigerant will pass through the system and the coils. That will cause a freeze up.

What does low superheat and high subcooling mean?

While superheat indicates how much refrigerant is in the evaporator (high superheat indicates not enough, low superheat indicates too much), subcooling gives an indication of how much refrigerant is in the condenser. … Higher subcooling indicates excess refrigerant backing up in the condenser.

How long does it take to replace TXV valve?

Most times an HVAC technician will install a universal/third-party replacement TXV valve. Most jobs take 1-3 hours for a professional HVAC technician to replace the valve and test it to make sure everything is working properly.

What causes TXV failure?

Do TXVs Ever Fail They can fail internally but most often they fail because of a blocked inlet screen (if they have one), contaminants entering the valve, loss of charge from the power head, bulb location, and positioning issues and overheating of the valve.

How much is a expansion valve cost?

Usually, replacing your car’s A/C expansion valve will cost you around $150 to $350. The valve itself will set you back between $50 to $150 in most cases while the labor will run about $100 to $200, so it’s important to get a couple quotes first.

What would cause a low suction pressure?

Many reasons can cause low refrigerant suction pressure, i.e.: low indoor temperature, dirty filters, restricted ducts, undersized ducts, closed dampers, frosted coils, restricted refrigerant line, restricted piston, incorrect piston, restricted strainer, bad indoor blower motor ect.

What happens when AC clutch goes out?

With the clutch broken, the compressor could remain activated, making it impossible to turn off the air conditioning. This isn’t good for the other AC components and could lead to bigger problems. However, it’s much more common for the clutch to break and make it impossible to turn on the air instead.

Why would a TXV freezing up?

If clogged debris is reducing pressure and flow within the TXV, the temperature will drop and cause ice to form on your evaporator coil. And when you see ice, you need to call in the pros to help.

Where does a TXV sensing bulb go?

Sensing Bulb Location — What is the correct position for the TXV sensing bulb? The sensing bulb should be attached at 12 o’clock on any suction line of 7/8-inch diameter or smaller. On lines larger than 7/8-inch diameter, the bulb should be placed at either 4 or 8 o’clock.

Where does a TXV go?

The TXV is located near the indoor evaporator unit of your air conditioner. The main part of the valve is installed on the liquid line, while a capillary tube and bulb sensor are connected to the suction line.

How many Txv valves does a heat pump have?

Many variations and matches of expansion devices have been used to regulate flow to the evaporator coils of a heat pump system. Optimum control is achieved by employing two thermostatic expansion valves, one to feed each coil as shown in Figure 1.

When should an externally equalized Txv be used?

An externally equalized TXV is required whenever the pressure drop in the evaporator exceeds 3 psig (a/c applications); 2 psig (commercial refrigeration applications); or 1 psig (low-temp applications).

What happens if Txv is too big?

Here you can experience both starving and flooding symptoms, but also load problems, varying pressure inside the device, and inappropriate amounts of refrigerant into the evaporator. Hunting may be caused by: Oversized valve, causing hunting due to a larger size than expected.

Why is automatic expansion valve not used?

When the load on the evaporator is high it won’t allow more flow of the refrigerant as per the requirement. … Thus the automatic expansion valve does not allow the control of the flow of the refrigerant through it which is very important for the efficient operation of the refrigeration plant.

Which is better TXV or orifice?

Compared to a fixed orifice, a TXV operates more efficiently in varying environmental conditions (theoretically, at least). To operate, the TXV has a needle and seat that restricts the flow of refrigerant and acts as the orifice. … A spring inside the bottom of the TXV exerts pressure to close the valve.

What is a good subcooling for 410A?

Most heating and cooling systems should operate at a superheat of 10F at the evaporator and between 20F to 25F at the compressor. if your HVAC system has a thermostatic expansion valve (TXV), the subcooling should be between 10F and 18F.

What is a good superheat for 410A?

For most systems, 20F to 25F should be measured near the compressor and 10F at the evaporator.

Why are externally equalized valves needed on some evaporators?

Why are externally equalized valves needed on some evaporators? Because of the high pressure drop in the distributors. … The capacity decreases because of less pressure drop across the valve. What happens to the capacity of a TEV as the liquid temperature decreases?

Can a bad expansion valve cause high pressure?

If the expansion valve is stuck open or clogged, the AC system will not cool properly. A clogged valve will lead to too little refrigerant, increasing the pressure in the system and causing the AC compressor to overheat.

What would happen if a TXV bulb loses its charge?

Usually when a TXV bulb looses its bulb charge, it looses it slowly. … When the bulb pressure pushes down on the head of the TXV, it opens the orifice inside the TXV a bit and allows more refrigerant into the evaporator.
