What does ESC do in drone

This is all down to a little device called an ESC, or Electronic Speed Controller. This is what translates a pilot’s controls into precise instructions sent to the motors to control movement.

How does a ESC work?

Electronic stability control (ESC) helps prevent a vehicle from skidding – and the driver from losing control of his or her vehicle – when turning a corner, braking sharply or making a sudden manoeuvre. ESC technology automatically activates the brakes to help steer the vehicle in the right direction.

Can I use different ESC on quadcopter?

Can we use a different brand ESC in that quadcopter or multicopter? The answer is, it might work, but not recommended. If you are desperate to fly, then by all means, you can try mixing any combination of ESCs and props that have somewhat similar characteristics.

How is an ESC controlled?

An electronic speed control follows a speed reference signal (derived from a throttle lever, joystick, or other manual input) and varies the switching rate of a network of field effect transistors (FETs). By adjusting the duty cycle or switching frequency of the transistors, the speed of the motor is changed.

How many volts is a drone?

A 4 cell/4S (14.8v) pack is the most common voltage for flying almost any size drone (apart from micro >120mm frames) at the moment. This voltage is very versatile and provides great performance for racing and freestyle on almost any quad using 2.5” props and over.

How does a drone motor work?

By delivering a three-phase current at a given frequency, the motor will spin at a speed equal to the frequency of that signal. The throttle on a drone’s controller is used for changing the motor’s speed, with a higher throttle input sending a higher frequency signal to the drone.

How do I choose a drone ESC?

The first thing to look at when choosing ESC is the current rating, which is measured in Amps. Motors draw current when they spin, if you draw more Amps than your ESC can handle, it will start to overheat and eventually fail. A catastrophic failure can even end up with your ESC in flames!

How does BLDC ESC work?

An ESC or electronic speed control mainly follows a speed reference signal to change the speed of a switching network of field-effect transistors. … For BLDC motors, different kinds of speed controls are necessary because this motor speed can be controlled by changing the voltage on its armature.

Can I use any ESC with any motor?

Short answer is no. Not all brushless esc’s are compatible with all brushless motors.

Why do drone motors have 3 wires?

The three wires give the brushless motors more pulling power. Understanding this helps understand stepper motors below. The two wires of the brushed dc motor can be thought of as forward and reverse. The three wires of brushless can be thought of as 1, 2 and 3.

Article first time published on

How does ESC control speed?

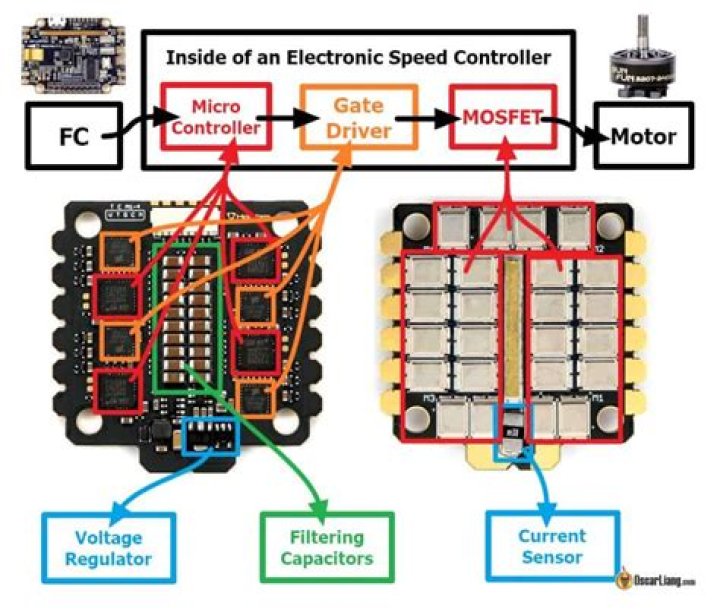

An ESC or an Electronic Speed Controller controls the brushless motor movement or speed by activating the appropriate MOSFETs to create the rotating magnetic field so that the motor rotates. The higher the frequency or the quicker the ESC goes through the 6 intervals, the higher the speed of the motor will be.

What is IMU drone?

An Inertial Measurement Unit (IMU) is an electronic device that measures acceleration and rotation using accelerometers and gyroscopes.

How is brushless motor ESC calculated?

Choose it according to how much amps your motor draws. For example, if your motor draws 20 amps, then you should get an ESC that is higher than 20 amps. For maximum performance, efficiency and safety, take an ESC that is at least 10 amps higher than your motor.

What is ESC BEC?

What are ESC, BEC, UBEC? ESC stands for Electronic Speed Controller. … BEC stands for Battery Elimination Circuit. It’s just a fancy name for voltage regulator, which converts main LiPo battery pack voltage to a lower voltage (e.g. 2S 7.4V, 3S 11.1V or 4S 14.8V to 5V).

What are drone batteries?

Drone batteries come in many different energy storage chemistries such as hydrogen fuel cells, lithium ion, lithium polymer and nickel metal hydride. … Lithium Ion is useful because they have high energy densities that are great for smaller endurance drones and fixed wing designs.

What are drone batteries called?

For drones, drone batteries are usually made of lithium batteries, which we call lithium polymer batteries every day, in LiPo. The voltage of each LiPo battery is typically 3.7v to 4.2v, which means that the nominal voltage for each lithium battery is 3.7 and the full voltage is 4.2v.

What voltage is needed to stop flying a drone?

LiPo Cell Voltage Any lower than 3.2v and the battery may be permanently damaged. Any higher than 4.2v and you significantly increase the risk of a battery bursting into flames.

Is ESC necessary for drone?

Due to the differences in motor technology, different ESCs are required for drones with brushed motors and those with brushless motors. Multirotor drones may have an ESC for each rotor, or an integrated device that handles all the rotors with one system.

What is ESC size?

The standard range of ESC sizes is 12A-40A ESCs for quadcopters and other multi-rotors but you can get smaller and larger ones. To choose the right ESC for your needs, you have to also consider what motors you are going to use, and what propellers.

How many amps is an ESC?

Most ESCs will have ratings such as ‘30 amps‘ or ’25 amps’. These numbers generally represent the sustained current the ESC can handle. For short periods of time, generally less than 10 seconds, ESCs can handle slightly more current. It is common to see an ESC labeled a ’30 amps’ ESC that is capable of a 40 amp ‘burst.

What voltage are drone motors?

Usually, drones use Li-Po battery of 3 to 6 cells. The voltage of this battery is dependent on the number of cells. So, voltage lies between 11.1 to 22.2 V. KV rating is an important factor in the way of determination of the motor type for a particular Drone, Racing drone, Quadcopter, FPV engines, etc.

How do drones maneuver?

There are four primary movements that a drone employs and they’re controlled by each of the four propellers. Propellers 1 and 4 move in clockwise, while propellers 2 and 3 move counterclockwise. Yaw is the clockwise or counterclockwise spin of a drone.

Are drone motors AC or DC?

There are two types of brushless motors suitable for use on drones: DC brushless motors (BLDC) and AC brushless motors (BLAC), also known as permanent magnet synchronous motors (PMSM).

Can you run a brushless motor without an ESC?

You can’t even run a brushless DC motor without the ESC, let alone control it. The ESC, which actually is an inverter converting DC into three phase AC, is a necessary part of the motor.

How do you control BLDC?

The most common way to control a BLDC motor is to use Hall sensors to determine the rotor position. The control system senses the rotor position and the proper voltage pattern is applied to the motor.

What is a brushed ESC?

A brushed motor is DC (Direct Current) and only required an ESC to have one “bank” (sometimes paralleled to multiply current capacity) of FETs. These simply chop up the flow of electricity to throttle the motor.

Can you use a brushed motor with a brushless ESC?

You cannot use a brushless ESC with a brushed motor.

Can a brushless motor have 2 wires?

So tiny brushless motors do exist with 2 wires because they have an internal ESC . They can get away with this because of their low power demands.

Can brushless motor have two wires?

Brushed DC motors have two wires because they require DC current (+VCC and Ground), while brushless motors require more complex driving circuitry which controls the AC current required to drive them.

What does pole mean on brushless motors?

The pole represents the number of permanent magnet poles for the rotating rotor, and a motor with one pair of N pole/S poles is called a two-pole motor.

Why speed control is needed?

In mechanical system, speed varies with number of task so speed control is necessary to do mechanical work in a proper way. It makes motor to operate easily. Shunt motor is a special type of DC motor which runs at a constant speed. But using field and armature rheostat control method we can make it more versatile.
