What does DC generator do

A direct-current (DC) generator is a rotating machine that supplies an electrical output with unidirectional voltage and current. The basic principles of operation are the same as those for synchronous generators.

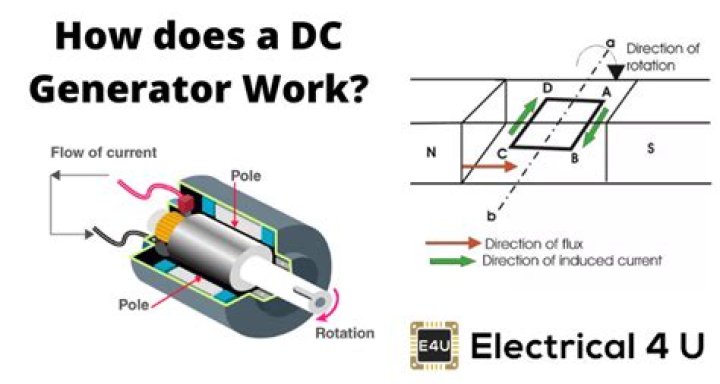

How does a simple DC generator works?

A simple dc generator consists of a coil of wire rotating in a magnetic field. However, it uses a split ring commutator rather than the two slip rings found in alternating current (ac) generators. Some bike lights use a type of dc generator called a dynamo to run the lamps while the wheels are turning.

What is working principle of DC?

A DC motor is an electrical machine which converts electrical energy into mechanical energy. The basic working principle of the DC motor is that whenever a current carrying conductor places in the magnetic field, it experiences a mechanical force.

What is the working of generator?

Electric generators work on the principle of electromagnetic induction. A conductor coil (a copper coil tightly wound onto a metal core) is rotated rapidly between the poles of a horseshoe type magnet. The conductor coil along with its core is known as an armature.

What is difference between AC and DC generator?

AC generator is a mechanical device that converts mechanical energy into AC electrical power. DC generator is a mechanical device that converts mechanical energy into DC electrical power. In an AC generator, the electrical current reverses direction periodically.

How does a DC generator start?

Working principle of a DC generator: In a DC generator, field coils produce an electromagnetic field and the armature conductors are rotated into the field. Thus, an electromagnetically induced emf is generated in the armature conductors. The direction of induced current is given by Fleming’s right hand rule.

What is DC motor principle?

Working principle of DC motor When kept in a magnetic field, a current-carrying conductor gains torque and develops a tendency to move. In short, when electric fields and magnetic fields interact, a mechanical force arises. This is the principle on which the DC motors work.

What is DC generator Class 10?

A DC generator is an electrical machine whose main function is to convert mechanical energy into electricity. When conductor slashes magnetic flux, an emf will be generated based on the electromagnetic induction principle of Faraday’s Laws.

What are types of DC generators?

• Permanent Magnet DC Generators – Field coils excited by permanent magnets.
• Separately Excited DC Generators – Field coils excited by some external source.
• Self Excited DC Generators – Field coils excited by the generator itself.

What is kVA on a generator?

kVA stands for Kilo-volt-amperes – a term used for the rating of an electrical circuit. kVA is the product of the circuits maximum current and voltage rating. It is also known as Apparent Power. There are three factors that we need to look at: Apparent Power, Actual Power and the Power Factor.

Article first time published on

What is EMF equation of DC generator?

As the armature rotates, a voltage is generated in its coils. In the case of a generator, the emf of rotation is called the Generated emf or Armature emf and is denoted as Er = Eg. In the case of a motor, the emf of rotation is known as Back emf or Counter emf and represented as Er = Eb.

Where are DC generators used?

Applications of DC Generators They are used in DC motors where speed control is necessary. They are used as portable generators where low power supply is required. They are used in motorcycles as dynamos, in toys such as remote control cars and in appliances such as electric shavers.

Is power generated in AC or DC?

Batteries produce DC: A steady stream of electrons flows in one direction only, from the negative to the positive terminal of the battery. AC has at least three advantages over DC in a power distribution grid: Large electrical generators happen to generate AC naturally, so conversion to DC would involve an extra step.

Is a battery AC or DC?

All batteries use DC, not AC. Realizing AC batteries expands more flexibility, especially when combining with the Cockcroft-Walton Multiplier, [a circuit that generates DC voltage from an input of alternating current].

How is DC power generated?

Direct current is produced by batteries, fuel cells, rectifiers, and generators with commutators. Direct current was supplanted by alternating current (AC) for common commercial power in the late 1880s because it was then uneconomical to transform it to the high voltages needed for long-distance transmission.

What are the 2 types of generator?

There are two fundamental types of generators known as AC (alternating current) and DC (direct current) generators. While the technique of producing electricity is the same in both types, AC and DC power become different in terms of their applications – the way in which loads receive electric power.

What is a DC series generator?

It is a machine that works on the principle of electromagnetic Induction and it converts the mechanical input given to electrical energy. The field winding is attached in series with the armature winding of this type of machine.

What are the six essential parts of a DC generator?

The key parts of DC generators are yoke, poles, pole shoes, armature core, armature winding, commutator, brushes, magnetic field system, commutator, end housings, bearings, and Shafts.

How does a DC and AC generator work?

An AC generator creates an alternating current that periodically reverses direction. But in a DC generator, a direct current flows in one direction. … The two ends of the coil are attached to the commutator, which balances the charges to and from the generator, thus resulting in a current that does not alter direction.

Is kVA real power?

kVA: apparent power kVA is a measure of apparent power: it tells you the total amount of power in use in a system. In a 100% efficient system kW = kVA. However electrical systems are never 100% efficient and therefore not all of the systems apparent power is being used for useful work output.

What kW means?

The Kilowatt A kilowatt is simply a measure of how much power an electric appliance consumes—it’s 1,000 watts to be exact. You can quickly convert watts (W) to kilowatts (kW) by diving your wattage by 1,000: 1,000W 1,000 = 1 kW.

What is kVA and kW?

What is the difference between kW and kVa? The primary difference between kW (kilowatt) and kVA (kilovolt-ampere) is the power factor. kW is the unit of real power and kVA is a unit of apparent power (or real power plus re-active power).

What is lap and wave winding?

The lap winding can be defined as a coil which can be lap back toward the succeeding coil. The wave winding can be defined as the loop of the winding can form the signal shape. … The connection of the wave winding is, the armature coil end is connected to commutator sections at some distance apart.

What is EMF full form?

Electromotive force (EMF) is equal to the terminal potential difference when no current flows. EMF and terminal potential difference (V) are both measured in volts, however they are not the same thing. EMF (ϵ) is the amount of energy (E) provided by the battery to each coulomb of charge (Q) passing through.

How do you calculate Z in DC generator?

Z = Total number of armature conductors. N = Armature rotation in revolution per minute (rpm). P = Number of poles. A = Number of parallel paths in armature.

What are the application of DC?

What are common DC applications? This form of power is most commonly produced by sources such as solar cells, batteries, and thermocouples. DC power is widely used in low voltage applications such as charging batteries, automotive applications, aircraft applications and other low voltage, low current applications.

Is DC a battery power?

Your typical battery is powered by DC power, which is produced by a reaction of chemicals occurring inside the battery. DC power can also be produced and converted from AC power by a commutator, which is a device found in AC generators.

Which is better DC or AC?

DC power is significantly more energy efficient than AC power. DC motors and appliances have higher efficiency and power to size characteristics. … The greater efficiency resulting from recent developments in DC converter technology allows improvements in electricity delivery over long distances.

What is the range of DC voltage?

There are a variety of DC voltage levels, typical values are 1.2, 1.5, 3, 3.3, 3.6, 5, 6, 10, 12, 15, 18, 18.5, 19, 20, 24, and 48 Volts. An ideal DC supply should provide a constant voltage and adequate current throughout the operation of the equipment.
