What does Cielab stand for

The CIE 1976 L*a*b* color space (also referred to as CIELAB) is one of the most popular color spaces for measuring object colors. It was defined by CIE in 1976 for color communication and is widely adopted today in many industries for color control and management.

What is the meaning of Cielab?

CIELAB or CIE L*a*b* is a device-independent, 3D color space that enables accurate measurement and comparison of all perceivable colors using three color values. In this color space, numerical differences between values roughly correspond to the amount of change humans see between colors.

Why is Cielab important in the printing industry?

CIELab is the color space model used to measure the lightness, hue and chromacity of any given color. … It’s values are used to control and manage color reproduction on a printing press.

What does Lab color space stand for?

The color space CIE L, a, b – where CIE means International Commission on Illumination – or simply LAB, is the basic mode used by the ICC profiles.

What is CIE value?

The CIE color model is a mapping system that uses tristimulus (a combination of 3 color values that are close to red/green/blue) values, which are plotted on a 3D space. When these values are combined, they can reproduce any color that a human eye can perceive.

What are lab values in printing?

LAB Color Values Like geographic coordinates – longitude, latitude, and altitude – L*a*b* color values give us a way to locate and communicate colors.

What is lab vs RGB?

RGB operates on three channels: red, green and blue. Lab is a conversion of the same information to a lightness component L*, and two color components – a* and b*. Lightness is kept separate from color, so that you can adjust one without affecting the other.

What is cyan and magenta?

CMYK is a scheme for combining primary pigments. The C stands for cyan (aqua), M stands for magenta (pink), Y for yellow, and K for Key. … The CMYK pigment model works like an “upside-down”version of the RGB (red, green, and blue) color model. Many paint and draw programs can make use of either the RGB or the CMYK model.

How do you read Cielab?

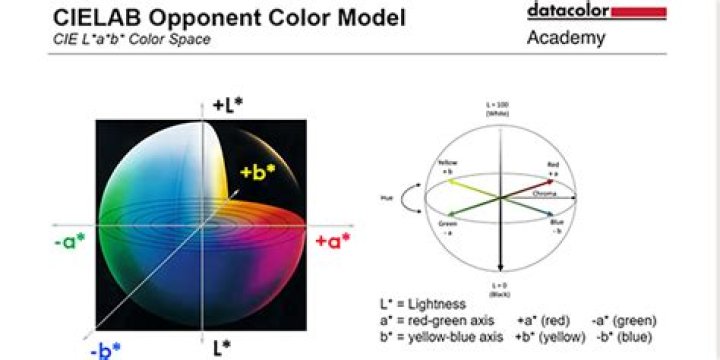

The three coordinates of CIELAB represent the lightness of the color (L* = 0 yields black and L* = 100 indicates diffuse white; specular white may be higher), its position between red and green (a*, where negative values indicate green and positive values indicate red) and its position between yellow and blue (b*, …

What is the meaning of s in HSB Colour model?

The saturation (S) is the amount of white added, and the brightness (B) the amount of black. Both S and B are measured from 0 to 100% or from 0 to 1. HSB and HSL. HSB and HSL, which was created by George Joblove in 1978, are the most widely used hue-based models for color selection in graphics applications.

Article first time published on

How do you read a Delta E report?

Delta is a Greek word that stands for the incremental change of a variable. As a whole, the term Delta E means a difference in sensation. Delta E is measured on a scale from 0 to 100, where 0 is less color difference, and 100 indicates complete distortion.

What is an acceptable Delta E for color?

A Delta E between 3 and 6 is usually considered an acceptable number in commercial reproduction, but the color difference may be perceived by printing and graphic professionals. (Note: Human vision is more sensitive to color differences if two colors actually touch each other).

What does Delta E 2 mean?

Delta E (dE) measures the amount of change in visual perception of two colors. … Top monitors achieve a Delta E of 2, where the color difference is barely detectable.

What is the best color space?

For the time being, sRGB the best color space available. Photographers want their work to be viewed and appreciated as they intended. Whether you’re shooting in sRGB or Adobe RGB, only the former can safeguard your vision—only sRGB can enable you to take the best photographs possible.

Can XYZ values be negative?

It is also possible that some device values may have corresponding XYZ values that are negative. Such values can result from digital camera color analysis matrices, or chromatic adaptation transforms applied to extremely saturated blue colors.

What is CIE plot?

The CIE system characterizes colors by a luminance parameter Y and two color coordinates x and y which specify the point on the chromaticity diagram. … Based on the fact that the human eye has three different types of color sensitive cones, the response of the eye is best described in terms of three “tristimulus values”.

What is rgb2lab Matlab?

lab = rgb2lab( RGB ) converts sRGB values to CIE 1976 L*a*b* values. example. lab = rgb2lab( RGB , Name,Value ) specifies additional conversion options, such as the color space of the RGB image, using one or more name-value pair arguments.

What is Matlab LAB?

Lab color space is a 3-axis color system with dimension L for lightness and a and b for the color dimensions. Working with the Lab color space includes all of colors in the spectrum, as well as colors outside of human perception.

What is bit in Photoshop?

The word bit comes from two words, binary and digit. Bit depth refers to the color information stored in an image. Bit means it’s amount of tonal variation in the image. … There are 3 type of bit depth on photoshop.

How do I convert RGB to XYZ?

XYZ = rgb2xyz( RGB ) converts the red, green, and blue values of an sRGB image to CIE 1931 XYZ values (2° observer). XYZ = rgb2xyz( RGB , Name,Value ) specifies additional conversion options, such as the color space of the RGB image, using one or more name-value pair arguments.

Can you print lab colors?

Lab colors are device independent. If you want to capture, edit, place, and print an image, you have to transform the scanned RGB values into CMYK values for the output device.

What is the full form of CMYK?

CMYK Definition CMYK refers to the four ink plates used in some color printing: cyan, magenta, yellow, and key (black). The CMYK model works by partially or entirely masking colors on a lighter, usually white, background.

How is chroma represented in Cielab?

Hue and chroma can be visualized and quantified by using the a*b*-plane of the CIELAB color space. A saturated (or brilliant) color is represented by a color point that is far away from the lightness axis. The color point of a pale (or dull, or pastel) color, a color of low saturation, is close to the L*-axis.

What is Hunter color Lab?

The Hunter is a filter colorimeter which separates the components of reflected color into a three dimensional color scale. The L,a,b color scale views color in a similar manner to which the human eye sees color, with L measuring light to dark color components, a is a red-green scale and b is a yellow-blue scale.

Why is black toner called K?

CMYK stands for cyan, magenta, yellow, and key or black. … The black is referred to as K denoting key, a shorthand for the printing term key plate. This plate impresses the artistic detail of an image, usually in black ink. CMYK is a color mixing system that depends on chemical pigments to achieve the desired hues.

What color is key?

The K in CMYK actually stands for “Key,” as in “Key Color” or “Key Plate,” and yes, black ink is typically used as the Key.

What are the 3 real primary colors?

• Three Primary Colors (Ps): Red, Yellow, Blue.
• Three Secondary Colors (S’): Orange, Green, Violet.
• Six Tertiary Colors (Ts): Red-Orange, Yellow-Orange, Yellow-Green, Blue-Green, Blue-Violet, Red-Violet, which are formed by mixing a primary with a secondary.

What is the difference between RGB and HSV?

RGB color space describes colors in terms of the amount of red, green, and blue present. HSV color space describes colors in terms of the Hue, Saturation, and Value. In situations where color description plays an integral role, the HSV color model is often preferred over the RGB model.

What is the difference between HSL and HSV?

The difference between HSL and HSV is that a color with maximum lightness in HSL is pure white, but a color with maximum value/brightness in HSV is analogous to shining a white light on a colored object (e.g. shining a bright white light on a red object causes the object to still appear red, just brighter and more …

What is V in HSV?

The letter V stands for value and is sometimes interchanged with the letter B for brightness [BB09b, p. 205], which points to the fact that the third component is defined differently in this color model. … Figure 1: Fullscreen The HSV color space.

What does Delta E mean in printing?

Delta-E (dE) is a single number that represents the ‘distance’ between two colors. The idea is that a dE of 1.0 is the smallest color difference the human eye can see. … Delta-E numbers can be used for: how far off is a print or proof from the original.
