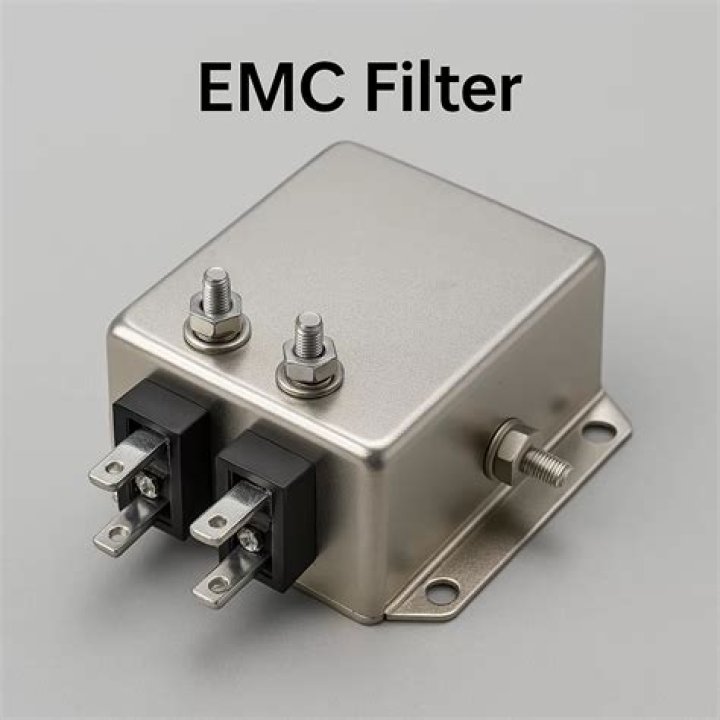

What does an EMC filter do

EMC filters are essential components that prevent interferences in machines and systems. They reduce the interference emissions while improving immunity from internal and external interferences.

Do I need an EMC filter?

EMC (Electromagnetic Compatibility) filters are used to ensure that electrical and electronic equipment does not generate, or is not affected by, electromagnetic disturbance. … EMC filters are very often needed to specifically help meet the conducted immunity and emissions.

What is electromagnetic filter?

EMI Filters, or electromagnetic interference filters, also called RFI Filters or radio-frequency interference filters, are an electrical device / circuit that mitigate the high frequency Electromagnetic noise present on the power and signal lines.

What is the use of EMC?

Electromagnetic compatibility (EMC) is the ability of electrical equipment and systems to function acceptably in their electromagnetic environment, by limiting the unintentional generation, propagation and reception of electromagnetic energy which may cause unwanted effects such as electromagnetic interference (EMI) or …

What is EMC in Drive?

EMC and Variable Speed Drives. EMC stands for electromagnetic compatibility – the ability of electric and electronic devices to work properly in the environment for which they are designed.

What is an EMC filter VFD?

EMC filters reduce the transfer of electromagnetic noise between the drive and mains power supply. … In the event that a higher level of filtering is desired or required, the external EMC filter can be added to either a drive which already has the internal EMC filter, or a drive without EMC filter.

Why do I need EMI filter?

Most electronics contains an EMI filter, either as a separate device, or embedded in circuit boards. Its function is to reduce high frequency electronic noise that may cause interference with other devices.

Why is EMI important?

Why is EMI Shielding Important? Electromagnetic interference (EMI) can disrupt electronic devices, equipment, and systems that are used in critical applications. … For engineers, it’s important to recognize how electromagnetic energy (EME) in the application environment can cause interference.

What does an EMI EMC engineer do?

The EMI/EMC engineer will help navigate electromagnetic interference best practices, compliance testing, and issue mitigation on the Terran 1 avionics system.

Why is electromagnetic compliance important?

The main goal of EMC is to ensure that electronic circuits operate correctly when exposed to external EM radiation, and to ensure that the electronic circuit in question does not emit “stray” EM radiation.

Article first time published on

Do capacitors emit EMI?

Consequently, for commercial, industrial, and automotive applications, a capacitor will generally act as an effective EMI filter.

Can EMI damage electronics?

All electric and electronic systems and equipment generate some kind of signal that could potentially interfere with the normal operation of another nearby piece of equipment. Also, EMI can degrade the performance of equipment, introduce errors or operational faults, or cause complete failure.

Where should I place my EMI filter?

5. Where should I place my EMI filter? A power line or mains EMI filter is placed at the power entry point of the equipment that it is being installed into to prevent noise from exiting or entering the equipment. Essentially, an EMI filter is made up of two basic types of components–capacitors and inductors.

What is inverter filter?

The “Input” and “Output” means that these Inverter Noise Filters are connected to the Inverter’s input side and output side. … This filter can suppress noise emitted from the power cable between the motor and Inverter as well as ground noise due to the leakage current from the motor.

What is a dV dT filter?

A dV/dT filter is a device that controls the voltage spikes generated by adjustable frequency drives (AFDs) and long motor lead lengths. This voltage spike event is generally known as the reflected wave phenomenon [1]. … Likewise, the lower the service voltage, the lower the peak value for the reflected wave.

Can an EMI filter go bad?

The types of disturbances that can damage an EMI filter are not limited to overvoltages such as voltage surges, voltage transients, temporary overvoltages, and voltage swells. Voltage distortion, voltage notching, and various types of undervoltages can also cause permanent damage to EMI filters.

What can I used to remove EMI from the power source?

Separation of power and signal cables, as well as use of twisted pair cables and reduced cable length, can cut wire and cable contribution to EMI. Many other cable and wire integration and installation techniques can be used to reduce EMI. A good enclosure design can also reduce EMI.

What is a washing machine EMI filter?

This replacement interference filter is responsible for suppressing any electrical interference or noise that occurs when your appliance is in use. This replacement filter is perfect to help get your washer performing like new again. …

How far can a VFD be from the motor?

Solutions Minimize Conductor Length. To reduce the likelihood of possible excessive voltage overshoot at the motor terminals, the lead length distance between the motor and VFD should be less than 150 feet. It is also a good idea to lower the carrier frequency of the VFD to what is audibly acceptable.

Why do VFD cause harmonics?

The voltage harmonics generated by VFDs are due to the flat-topping effect caused by a weak ac source charging the dc bus capacitor without any intervening impedance. The distorted voltage waveform gives rise to voltage harmonics, which is of more importance than current harmonics.

How do you reduce noise in a VFD?

Large variable frequency drive driven motors are usually easier to quiet down than the small fractional ones. To reduce the VFD-controlled motor noise it should be to increase switching frequency if the cable length between the motor and variable frequency drive is short.

How do you test for electromagnetic interference?

To test for conducted EMI, you should use spectrum analyzers, high-frequency clamp-on CTs and sometimes power-line monitors and oscilloscopes — you may need training to set up and operate these units correctly.

How do you test for EMC?

During EMC testing, radiated emissions measurements are made using a spectrum analyzer and or an EMI receiver and a suitable measuring antenna. Radiated Emissions (H-field): The magnetic component of the electromagnetic wave is using a spectrum analyzer and or an EMI receiver and a suitable measuring antenna.

Is EMC the same as EMI?

EMI stands for electromagnetic interference and is an electronic emission that interferes with components, RF systems, and most electronic devices. … The difference between EMI and EMC is that EMI is the term for radiation and EMC merely is the ability for a system to operate within the presence of radiation.

What are the two main reasons for shielding?

The shielding reduces the coupling of radio waves (RF shielding), and blocks electromagnetic and electrostatic fields from interfering with other electronic systems and devices. Shielding is typically applied to enclosures and to cables.

Does EMI cause WIFI?

Wi-Fi networks are mostly affected by wireless interference/EMI upon the occurrence of symptoms like intermittent connectivity or unexpected disconnections, delays in connection and data transfer, slow network speeds, and poor signal strength. This article is part of the TechXchange: Delving into EMI, EMC and Noise.

Why is shielding important in mitigating EMI?

EMI shields are designed to prevent radiated emissions from getting past a certain point. EMI shielding solutions can both protect a device from external radiation and prevent that device from emitting radiation that could cause interference with other devices.

Does my product need EMC testing?

EMC certifications are a mandatory requirement in most markets, including Europe (EMC Directive 2014/30/EU), the US, China, Korea, Australia and New Zealand. EMC testing is necessary to help you meet regulatory requirements, improve product performance and reduce the risk of costly non-compliance.

What are EMC requirements?

Electromagnetic compatibility, or EMC means that a device is compatible with (i.e., no interference is caused by) its electromagnetic (EM) environment and it does not emit levels of EM energy that cause electromagnetic interference (EMI) in other devices in the vicinity.

What is the need for common EMC standards?

These standards attempt to standardize product EMC performance, with respect to conducted or radiated radio interference from electrical or electronic equipment, imposition of other types of disturbance on the mains supply by such equipment, and the sensitivity of such equipment to received interference.

Which type of filter starve the SMPS if not designed properly?

For “difficult” lines, this may be a better choice. The output, however, is facing the bus cap and may starve the SMPS if not designed properly. In many cases, the L filter provides a good compromise but offers only 12dB loss per octave since it has only two elements (a double-L may be required in some cases).
