What does a stator coil do

The stator is the coil of wire housed inside the engine case. A magnet on a shaft spins within the stator, creating alternating current (AC). That current travels along fairly heavy gauge wire through the case and into the rectifier/regulator which converts it to DC power, and at a consistent output.

What happens when a stator goes bad?

The most obvious symptoms of a bad motorcycle stator include no spark, weak spark, or intermittent spark (also known as misfiring). Hard starts and a poorly running engine can also be clues that your stator needs to be rebuilt or replaced.

Does a stator charge the battery?

In simple terms, the battery provides this power. The battery would quickly be depleted, though, if not for the star of the charging system show, the stator. Think of your stator as the piece that makes electricity to keep your battery charged up to make all that electrical stuff on your bike work.

How do I know if my stator is bad?

Insert each probe into a stator socket. You should read around 0.2 to 0.5 ohms. If you show an open circuit with the “Open” or infinity reading or have higher resistance, then the stator is bad and you must replace it. If these tests all produce positive results, then the stator itself is good.

What causes stator failure?

When a stator fails, it is largely due to the degradation or aging of its insulation through external occurrences and materials being introduced into its system.

Can you repair a stator?

Fixing a stator usually involves unwinding and cleaning the original stator core, then rewinding it with a machine or carefully by hand. It starts with looking at the coil heads for damaged or burned wires, then cutting out the protective rubber coating from damaged coils.

Is a stator the same as an alternator?

Stators are inside the engine case. An automotive style alternator is a fully self-contained, externally mounted unit that creates DC current. Another difference between stators and automotive style alternators is the type of magnet uses. Stators use a permanent magnet, and automotive alternators use an electro-magnet.

How much does it cost to fix a stator?

Stator & Rotor A new stator and rotor set typically costs between $250 and $1,500. They are stationary and rotating parts of any system that generates electricity. When they stop working seamlessly, they need repair or replacement.

Can a bad stator drain a battery?

When a stator has gone bad, that means the motorcycle is running off of battery power alone which will quickly drain it. … Batteries aren’t able to store AC current so the regulator/rectifier converts power into a type of current the battery can store.

How hard is it to replace a stator?

Replacing the stator is not too complicated and requires a socket set and some heat resistant gasket repair silicone only. … On 2006-07 Honda Fireblades the stator is located on the left hand side behind the crash protector.

Article first time published on

Is a stator and magneto the same thing?

The stator and the magneto really can be thought of as the same thing. Simply put the stator is the stationary, wire wound portion of the power generation system. Magneto is the common name used when describing a permanent magnet to produce alternating current.

What tests can be performed on a stator?

1 lists the recommended tests for stator and wound rotor windings. They are insulation resistance (IR), winding resistance, growler, phase balance, surge comparison, polarity and ball rotation tests.

How many volts does a stator put out?

For each 1000-rpm, a 32-amp stator should have 18 volts AC (VAC) per it. It should be 36 VAC by 2000. 54 VAC is what it should be at 3000 RPM. Each system should produce a certain amount of electricity.

What are the signs of a bad Rectifier?

You’ll note signs right away like poor starts, fluctuating meter readings, and dimmed headlights. around 13 volts, the bike will start to drain the battery. When this happens, it’s only a matter of time before the engine stops completely.

Are stator windings insulated?

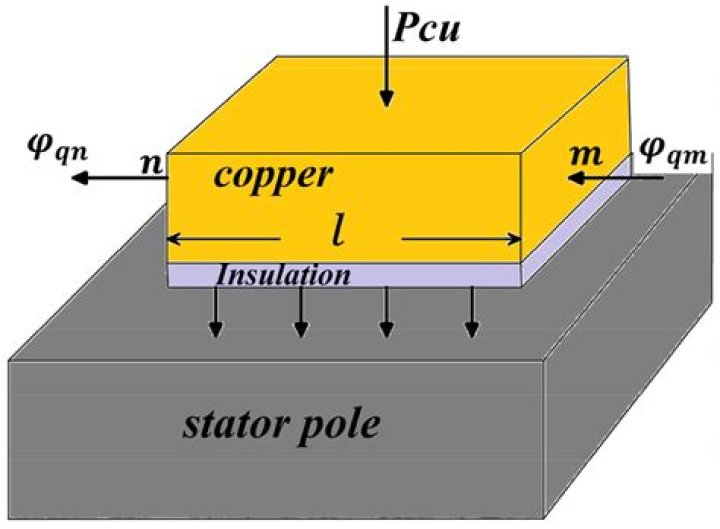

Each stator coil may therefore contain a number of insulated turns of conductor, and each stator winding usually consists of a number of similar coils placed in sequential slots in the stator surface and connected in series as shown for the winding a-a′ in Figure 3.

What causes high resistance in a stator?

Thermal deterioration of insulation in one phase of the stator winding can result from unequal voltage between phases. Unequal voltages usually are caused by unbalanced loads on the power source, a poor connection at the motor terminal, or a high resistance contact (weak spring).

Do motorcycles charge their own battery?

The mechanism of a motorcycle does charge it’s own battery while the motorcycle is running. There is a device inside a motorcycle engine, usually referred to as a stator, that charges the motorcycle battery while the motorcycle is on.

What is a rotor and stator?

The term, “stator” is derived from the word stationary. The stator then is the stationary part of the AC motor. The rotor is the rotating electrical component. … The term “rotor” is derived from the word rotating. The rotor then is the rotating part of the AC motor.

Can you ride a motorcycle with a bad stator?

If the stator is bad, the bike won’t run at all. The stator generates energy for spark. Assuming the air cleaner is clean and other general maintenance has been performed, if the bike won’t kick start but runs as you state, the problem is probably either the spark plug and/or fuel delivery.

Can you rewind a stator?

Stators produce electrical current by spinning coils of copper wire, wound around individual heads, through a series of brushes. … If any of the individual wire coils become damaged, most commonly from overheating, the damaged stator heads must be rewound with new wire.

Why does my motorcycle stop running when riding?

Another reason your motorcycle has stopped running is because of lack of oil. If while you were riding you noticed unusual noises coming from your engine, and your engine temperature is running hot, then chances are your oil level is down. Another common reason with motorcycles that stop running is electrical.

What causes a battery not to hold a charge?

One significant reason why a car battery won’t hold a charge is age. Obvious signs that your battery is too old and worn out include corrosion and cracking. If it’s at least four years old, then it should probably be replaced. For younger batteries, a car that isn’t started for days or weeks can also lose its charge.

Can a bad stator cause bogging?

yes, A stator thats breaking down will work good when cold but fail are act up as soon as it warms up, The symptoms you mentioned sound like it could be a stator. Ive seen A few ZX sleds with this problem.

How long does it take to change a stator?

A good tech can change a stator in 3 hours and a belt in 6 or 7 hours. Your belt should go over 100,000 if it has been properly maintained.

How much does a stator cost for a motorcycle?

This item Accel 152115 50 Amp 3-Phase Motorcycle Stator for Harley-DavidsonCycle Electric Stator CE-9100Customer Rating4.4 out of 5 stars (22)4.8 out of 5 stars (18)Price$25495$94.80$94.80Sold ByKaspienPowersports911Item Weight3.15 lbs2.00 lbs

What is a stator rewind?

This is a rewind service provided in house by Baja Designs of your OEM Stator that you send in – Our lead time is 7-10 business days. Do Not Ship stator in your crank case cover or the stator will be shipped back.

Who is magneto daughter?

Polaris works as a long-term member of the X-Men, after Magneto takes over from an ill Professor Xavier. This Polaris knows she is the daughter of Magneto.

What happens if a magneto fails?

The beauty of a magneto is its simplicity. When one fails, it’s not dramatic, and will not result in a catastrophic engine failure unless both mags shoot craps at the same time. If that happens, the engine will stop running or might run rough (missing on one or more cylinders). … The engine just won’t make as much power.

What causes a magneto to fail?

The voltage generated across magneto coils is quite high, in the order of 20,000 volt if no spark plugs are in place. … The high voltage will simply arc across the gap. The gap will widen as the wire ends melt further apart and soon the adjacent turns will be affected so the coil will eventually fail.

How do you test a stator with a multimeter?

Insert one of the multimeter probes inside the pin sockets of the stator and touch the other probe you’ll find to any chassis ground. If there is any form of continuity or displays a symbol for open or shows an infinity sign, that means the stator is grounded and needs to be changed.

Will an ATV run with a bad stator?

The stator of an ATV works to recharge your battery while your vehicle is running, similar in function to a car’s alternator. When the stator goes bad, your ATV will only run until the battery goes dead, which is not very long.
