What does a photosensor do

A photoelectric sensor is a device used to determine the distance, absence, or presence of an object by using a light transmitter, often infrared, and a photoelectric receiver. They are largely used in industrial manufacturing.

What are the three types of photoelectric devices?

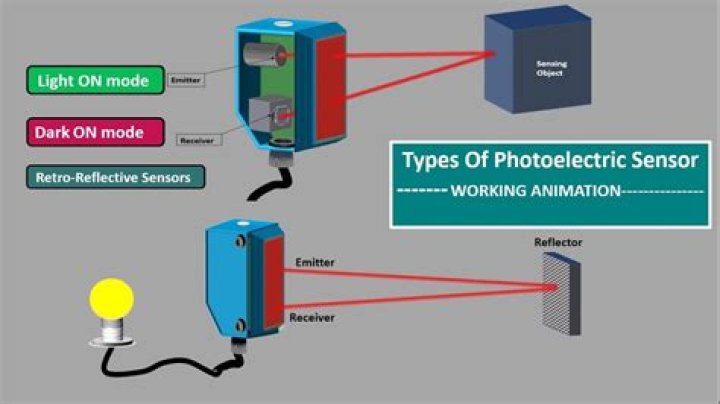

There are three major types of photoelectric sensors: thru-beam, retroreflective, and diffused.

What is photoelectric beam?

A photoelectric sensor emits a light beam (visible or infrared) from its light-emitting element. A reflective-type photoelectric sensor is used to detect the light beam reflected from the target. A thrubeam type sensor is used to measure the change in light quantity caused by the target crossing the optical axis.

What are photosensors made of?

13.2.2.3 Photo/optical sensors Typical photosensors are composed of a light-emitting diode (LED) and a photosensor which detects the transmitted or reflected light.

What is light dark switching?

Dark switching, also called normally closed or NC, is a sensor output mode of operation. The output is activated when the receiver is not illuminated by light from the emitter.

Is photodiode a photodetector?

Photodetectors, also called photosensors, are sensors of light or other electromagnetic radiation. … Photodiodes and phototransistors are a few examples of photodetectors.

What is a diffuse photo sensor?

Diffuse-Mode Sensing (Proximity) In diffuse mode sensing, light emitted from the sensor strikes the surface of the object to be detected and is diffused, sending some light back to the receiver element of the sensor. With a diffuse-mode sensor, the object is detected when it “makes” the beam.

Is photodiode and photodetector same?

As nouns the difference between photodiode and photodetector is that photodiode is a semiconductor two-terminal component whose electrical characteristics are light-sensitive while photodetector is any device used to detect electromagnetic radiation.

What is meant by the dark current?

Definition of dark current : the current through a photoelectric or photoconductive cell when an electromotive force is applied in the absence of light.

Why is proximity sensor used?

A proximity sensor is a device that can detect or sense the approach or presence of nearby objects and for this it does not need physical contact. There are different kinds of proximity sensors. Some of them are listed [8]: Inductive: This type of sensor is used to detect nearby metallic objects.

Article first time published on

What is a photocell resistor?

A photocell is a resistor that changes resistance depending on the amount of light incident on it. A photocell operates on semiconductor photoconductivity: the energy of photons hitting the semiconductor frees electrons to flow, decreasing the resistance.

What is photoelectric switch?

A photoelectric sensor is a type of switch. It is a switch that is. turned off and on by the presence or absence of received light. The inherent advantages of such a “non-contact” switch have. resulted in widespread application throughout the industrial.

What is reflective sensor?

A reflective-type photoelectric sensor is used to detect the light beam reflected from the target. A thrubeam type sensor is used to measure the change in light quantity caused by the target crossing the optical axis.

What is the difference between light operate and dark operate?

Dark operate is an operating mode in which the load is energized when light from the emitter is absent from the receiver. Light operate is an operating mode in which the load is energized when light from the emitter reaches the receiver.

What is the difference between diffuse and retroreflective?

Retro reflective sensors use a target to reflect light back to the sensor and will sense an object that breaks the beam’s path. The diffuse reflective type senses an object when the light beam is reflected back to the sensor.

When would a photocell be useful?

Photocells are used in automatic lights to activate whenever it gets dark, and the activation/deactivation of streetlights mainly depends on the day whether it is day or night. These are used as timers in a running race to calculate the runner’s speed. Photocells are used to count the vehicles on the road.

Do photocells wear out?

Photocells are sensors that allow you to detect light. They are small, inexpensive, low-power, easy to use and don’t wear out.

What are 2 devices that use a photocell resistor?

Automatic lights that turn on when it gets dark use photocells, as well as streetlights that switch on and off according to whether it is night or day. They are used as timers to measure the speeds of runners during a race. Photocells may be used in the place of variable resistors and photovoltaic cells.

Where are photodetectors used?

Photodetector is one of key component in optoelectronic integrated circuits (OEICs). Photodetectors are extensively used in optical communication systems, optical interconnections, and biomedical imaging, and they typically operate from visible to near-infrared wavelength.

What are the requirements of photo photodetector?

Depending on the application, a photodetector has to fulfill various requirements: It must be sensitive in some given spectral region (range of optical wavelengths). In some cases, the responsivity should be constant or at least well defined within some wavelength range.

What are the advantages and disadvantages of photodiode?

• The photodiode is linear.
• Low resistance.
• A very good spectral response.
• Better frequency response.
• Low dark current.
• Fastest photodetector.
• Long lifetime.
• Low noise.

What is the difference between solar cell and a photodiode?

A solar cell (photovoltaic devices) is a pn junction device with no voltage directly applied across the junction (used with zero bias). A photodiode is a pn junction diode operated with an applied reverse-biased voltage.

What should be the biasing of the photodiode?

Photodiodes can be operated without any voltage bias. APDs are designed to be reversed biased, so this section will be relevant to the P-N and PIN photodiodes. Without added voltage across the junction, dark current can be extremely low (near zero). This reduces the overall noise current of the system.

Is there any difference between photodiode and photocell?

Photodiode is A photodiode is a semiconductor device that converts light into electrical current. … Photocell is A device in which the photoelectric or photovoltaic effect or photoconductivity is used to generate a current or voltage when exposed to light or other electromagnetic radiation.

What is the most common use of photodiode?

Photodiodes are used in safety electronics such as fire and smoke detectors. Photodiodes are used in numerous medical applications. They are used in instruments that analyze samples, detectors for computed tomography and also used in blood gas monitors. Photodiodes are used in solar cell panels.

Is a photodiode active or passive?

Photo diode is a passive device.

Why are photo diodes reverse biased?

When the diode is reverse biased, no ordinary current flows and the detection of the photo-current is much easier. … B) When the diode is reverse biased, ordinary current flows and the detection of the photo-current is much easier.

Can detect the presence of nearby object?

Which sensor can detect nearby objects? Explanation: A proximity sensor is a sensor able to detect the presence of nearby objects without any physical contact. A proximity sensor often emits an electromagnetic field or a beam of electromagnetic radiation, and looks for a change in the return signal. 2.

How do proximity sensors work in phones?

A proximity sensor on a smartphone works on the closeness of any object to the smartphone without any physical contact. … So, if the proximity sensor detects that the phone is held near the wall of your pockets, it will generate a message to your phones processor telling it to switch off your screen.

Why do proximity sensors fail?

There is metal particles on the face of the proximity sensor. Metal particles will not allow the sensor to change state. This will cause the axis to home in the opposite direction, causing the axis to hit the hard stop. Clean metal particles from the face of the proximity sensor.

Does photocell need a resistor?

Photocells are light-sensitive, variable resistors. As more light shines of the sensor’s head, the resistance between its two terminals decreases. They’re easy-to-use, and an essential component in projects that require ambient-light sensing.
