What does a flux welder do

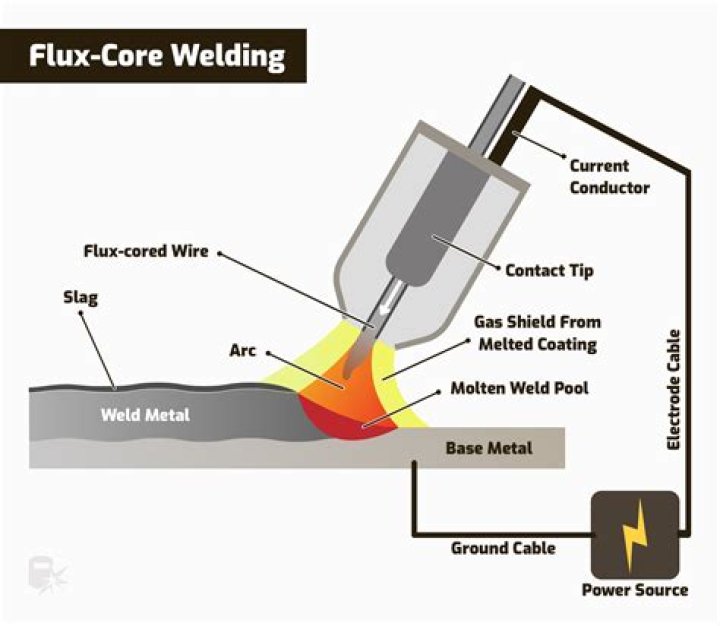

Flux cored arc welding uses heat generated by an electric arc to fuse base metal in the weld joint area. This arc is struck between the metallic workpiece and the continuously-fed tubular cored consumable filler wire, with both the wire and the metallic workpiece melting together to form a weld joint.

What is flux welding good for?

Flux core welding is used to weld thicker metals. It differs from flux core soldering and is ideal for heavy-duty or industrial applications since the finished bond is much more secure. This is essential when working on things like machine parts.

What is the difference between a flux welder and a MIG welder?

The main difference between flux cored arc welding and MIG welding is the way the electrode is shielded from the air. … The main difference between MIG welding and flux core arc welding is, FCAW gets its shielding from the flux core, and this allows the operator to weld outdoors where it is windy.

What can you weld with a flux welder?

There are many advantages to using flux core welding, most notably its ability to be used in all positions when equipped with the right filler metal. Flux core can be used with a variety of metals, including stainless steel and some nickel and steel alloys.

Is flux welding good for beginners?

I’m sure most will agree that a MIG flux core welder is the best way to go. These are the easiest welder to use and, with the correct flux core wire, you can weld just about any metal with ease. These are the best welders for beginners and are also very popular in auto body shops.

Can u weld aluminum with a flux core welder?

But no success. The products are solid aluminum, or flux core steel wire. They won’t work on aluminum, or needs a shielding gas.

Is flux welding strong?

The deposit rate of filler material for flux-core welding is the highest of any other method. While a MIG welder can deposit up to 8 pounds of wire per hour, a flux-core welder can deliver up to 25 pounds per hour.

Is flux core wire gasless?

The welder does not have to set up windshields to protect the shielding gases from being blown away because the shielding gas is generated from the burning flux. Since self-shielded flux-cored wire does not require external shielding gas, it is also more portable than solid wire.

Is MIG better than flux core?

MIG welding is clean and easy and can be used on thin or thick metals. Similar to MIG, flux-cored arc welding (FCAW)* is a wire-feed process but differs in that self-shielded FCAW does not require shielding gas. Instead, flux-cored wire shields the arc from contamination.

What welder should a beginner buy?

MIG Welding (Beginner) MIG welders are among the best type for beginners, as they’re designed with a wire welding electrode on a spool that is fed at a pre-selected speed through a welding gun. As a semi-automatic or automatic process, gas metal arc welding (GMAW or MIG), is the easiest to learn.

Article first time published on

What is the easiest type of welding to learn?

Types of welding FAQs MIG welding is generally the easiest to learn. TIG welding is a slower, more precise process that works with many different types of materials. ARC and Oxy-acetylene welding produce strong welds on thick materials and can operate outdoors and underwater.

Which welder is easiest to use?

MIG welding (metal inert gas welding) is often considered the easiest type of welding for a beginner to learn. MIG welders have a wire welding electrode on a spool which is then fed through a welding gun at a preselected speed.

Can you weld car panels with flux core?

Flux core welding is typically used when welding thicker metals. It is ideal for heavy-duty, industrial, or automotive applications since the finished bond is very secure. One of the main benefits of flux core welding is that it can be easily performed outside in a variety of conditions, quickly and effectively.

Can you weld galvanized steel with flux core?

You can weld galvanized steel with flux core wire. However, zinc coating produces extremely toxic fumes that must be vented away. Protective gear and proper ventilation are essential to welding galvanized steel safely.

How thick can flux core weld?

Flux-Cored 035″ Innershield NR-211-MP will generally allow you to weld steel up to ¼”thick. Note that this is more than double the thickness maximum of 12 gauge with MIG on 115 volts.

Is gas welding better than flux core?

GMAW is not good for welding outside or in drafty conditions. This is because the shield gas has a tendency to blow away before it can do its job. Compared to FCAW the welds will be more visually appealing and will have no slag to chip off. GMAW also welds thin metals with less burn-through compared to FCAW.

What can I weld with a flux 125 welder?

The Flux 125 welder can weld mild steel from 18 gauge up to 3/16in. thick which makes it ideal for jobs around the yard, shop or house.

Can you weld black pipe with flux core?

Welding black iron pipe You can weld black “iron” pipe because it’s made of mild steel, not iron. Black steel pipe can be welded using any welding method used for steel. This includes MIG, flux core, TIG, and stick arc welding. … Black-iron fittings are difficult to weld without causing damage to the fitting.

Can you weld cast engine block?

Engine block welding can be a challenging task, due to the temperamental nature of cast iron. … Thanks to Muggy Weld 77 cast iron welding rod, engine block welding has never been easier. Case in point: This diesel Yanmar cast iron engine had a large hole in the block, caused by a thrown push rod.

Can I weld a cast iron exhaust manifold?

Always weld no more than 2 inches at a time and let cool for 2 minutes between passes. For some cast irons you may only want to weld an inch or less and let cool 1 minute between passes. Low and slow is the key to a sound weld with cast iron.

Can you weld stainless steel with flux core?

Flux-cored Arc Welding is widely used in welding Stainless Steels . There is minimal problems with this process and it is actually recommended when you need to weld thick plates in a short period of time. The weld deposit rates are significantly higher than other welding processes.

Do you push or pull flux core?

With flux-cored welding, you should always use a drag (pull) technique, in which the tip of the welding gun is being pointed back at the weld pool and dragged away from the completed weld. An easy rule of thumb for remembering whether to use a push or drag (backhand) technique is: “If there’s slag, you drag.”

What are the disadvantages of flux core welding?

• A high level of noxious fumes which must be ventilated.
• Higher electrode wire cost compared to solid electrode wires.
• More costly equipment than many other welding processes.
• Less portable equipment than SMAW or GTAW.
• The slag covering the weld must be removed.

Are Harbor Freight welders any good?

Harbor Freight has a complete line of high-quality MIG, TIG, Flux and Stick welders. If you’re a seasoned professional, or just getting started, Harbor Freight welders are a great value without compromising features or capabilities.

Can you run flux core wire with gas?

You can use gas with regular flux core, but it is a total waste of gas. The flux in dual shield wire doesn’t shield the weld, it causes better deposition rates and weld characteristics in the weld. Gas is needed with dual shield to shield the weld, but not with flux cored.

Is it better to weld with gas?

Gasless (flux-cored) welding creates a lot more fumes than when using a shielding gas, thanks to all the things in the flux that work to protect the weld. That’s why gasless welding is much better for outdoor use.

Which is better stick or wire welder?

MIG is much more forgiving on very thin metal than stick welding, which can easily burn through thin material. The invention of wire welding, which includes metal inert gas (MIG) and flux cored arc welding (FCAW), has made welding faster, easier and more versatile. …

What's the most versatile welder?

TIG welding is undoubtedly the most versatile of all these welding processes.

What is the cheapest type of welding?

Since stick welding relies on minimal equipment, it is an inexpensive welding technique.

What does MIG stand for in welding?

Metal Inert Gas (MIG) and Metal Active Gas (MAG) welding are gas metal arc welding (GMAW) processes that use heat created from a DC electric arc between a consumable metal electrode and a workpiece which melt together to create a weld pool that fuses to form a join.

Do you push or pull when wire feed welding?

Push or pull: Here the rule is simple. “If it produces slag, you drag,” says Leisner. In other words, you drag the rod or wire when welding with a stick or flux-core wire welder. Otherwise, you push the wire with metal inert gas (MIG) welding.
