What does a draft Hood do

When properly installed, the draft hood cools the combustion products and allows them to . ow safely from the building. It also protects heater operation during updrafts and downdrafts that are caused by indoor/outdoor air pressure differences.

What function does the draft hood or draft diverter playing heating unit?

A draft diverter, or draft hood, plays a vital role in the operation of a combustion chamber, such as a fireplace or furnace. The draft diverter, which consists of a baffle plate positioned directly above the primary flue, regulates the direction and amount of air flowing in and out of the burner.

What is the purpose of a vent hood on a water heater?

The hood sits on legs at the top of the water heater where the combustion gases exit the tank. It connects to the vent that carries the exhaust out of the house. The openings under the draft hood allow ambient air to be drawn into the vent to relieve pressure at the burner.

Does a draft hood provide combustion air?

The purpose of this opening is to permit additional air to flow into the flue vent connector (stack pipe) and chimney when the gas burner is operating. … The louvers provide combustion air to the gas burner.)

What is an appliance draft hood?

A draft hood on a gas furnace allows for better draft control and expels toxic fumes through a chimney pipe or vent. … The draft hood acts as a collection reservoir that funnels the toxins out of the appliance and into the chimney, which effectively prevents any contamination from occurring inside of the building.

What is the purpose of a draft diverter on a gas furnace?

The operation of a fireplace or furnace depends on a draft diverter. The draft diverter is situated above the primary flue and regulates the direction and amount of air flowing in and out of the burner.

What is the purpose of a down draft diverter?

A draught diverter is a form of draught break intended to prevent conditions in the main length of flue from interfering with the combustion performance of an open-flued appliance. It allows the appliance to operate without interference from down-draughts that may occur in adverse wind conditions and excessive draught.

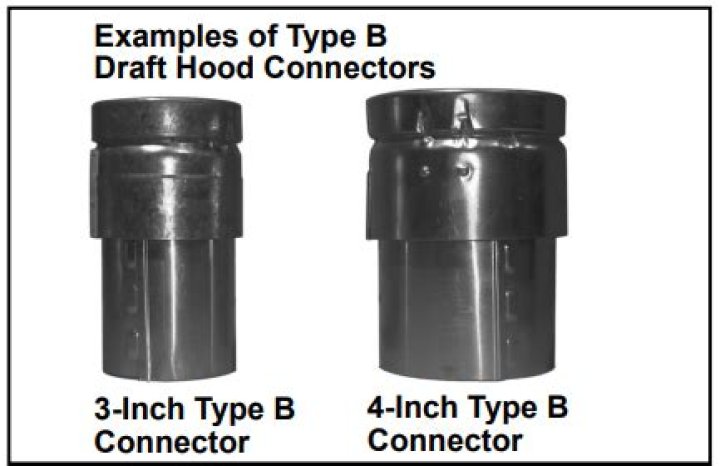

Where does a draft hood connector go?

The draft hood connector connects Type B gas vent directly to an appliance draft hood. The flexible inlet can be shaped to fit oval draft hood outlets.

Is a draft hood necessary?

As any Maple Glen heating contractor knows, a draft hood is a necessary part of any gas burning appliance. For a gas furnace in particular it ensures steady air flow to the burners to avoid flares or the pilot light being put out by fluctuation in temperature and air flow.

How does a draft regulator work?

Draft regulators or barometric dampers are devices used to regulate the draft on oil-fired furnaces, boilers, and water heaters. … You adjust the weight to control the amount of the opening of this damper which in turn controls the amount of excess air that can enter the flue and chimney when the oil burner is operating.

Article first time published on

Do tankless water heaters need a vent?

Installing a tankless water heater outside frees up indoor space and requires no additional venting. … Traditional gas tank water heater require venting through the roof. Tankless water heaters use fans to blow exhaust from the unit horizontally, allowing vents to terminate on the side of a house.

Does an electric hot water heater need to be vented?

No. Unlike gas tankless water heaters and gas traditional tank style water heaters, electric tankless water heaters do not require any venting. This is often one of the deciding factors when choosing whether you should purchase a gas or electric tankless water heater.

Does a water heater door need to be vented?

All water heaters that burn natural gas or liquid propane (LP) gas require a venting system. The process of burning of the gas is called combustion and it creates heat, exhaust gases (including highly poisonous carbon monoxide), and moisture.

What type of furnace uses a draft diverter?

Low-Efficiency Furnaces (Less than 78%) Older style furnaces can be called draft-hood furnaces because they draw combustion and dilution air from the room in which they are located; the dilution air enters through a draft hood (also called a draft diverter).

What is heater draft?

The difference between atmospheric pressure and the pressure existing in the furnace or flue gas passage of a boiler is termed as draft. Draft can also be referred to as the difference in pressure in the combustion chamber area which results in the motion of the flue gases and the air flow.

What is the purpose of the vent on a gas furnace?

Vent systems are an important component of the combustion process of a gas furnace. A venting system ensures that the hazardous gasses are removed from the heat exchangers and burners at the end of a heating cycle. If your furnace is not turning on, the source of the problem may be a damaged vent.

What is the purpose of venting a gas appliance?

Dispersal of combustion gases, including the separation of vent gases from windows and mechanical air supply for the building. Placement of vents to prevent re-entrainment of combustion gases into the building.

What causes a water heater to backdraft?

The main reasons for backdrafting at the water heater are the poor vent installation and obstructions found in the vent pipe. This problem affects mainly the atmospheric gas type water heaters that use natural convection to remove the combustion products, known as exhaust gases.

What is the air that is drawn into the draft hood called?

Dilution air is that air which is drawn in through the draft hood or draft diverter relief opening.

How does a furnace draft inducer work?

A draft inducer is a fan that’s located inside of your furnace near the heat exchanger. … By turning on before your furnace ignites its burners, the draft inducer is able to clear out any combustion gases that might be lingering in the heat exchanger from the previous heating cycle.

What is natural draft furnace?

A natural draft furnace is one that uses natural atmospheric pressure to force the waste gasses of combustion out through the ventilation system. As the fuel in the furnace burns, it creates hot air as well as combustion byproducts, such as carbon monoxide and nitrogen dioxide.

Can you reduce the size of the vent at the draft hood?

Vents for appliance draft hood outlets or flue collars 12 inches (305mm) in diameter or smaller are not reduced more than one table size. Vents for appliance draft hood outlets or flue collars exceeding 12 inches (305 mm) in diameter are not reduced more than two table sizes.

How does floor furnace work?

Floor furnaces actually heat by convection more than by radiation, which means that they are creating a plume of heat that drives air up to the ceiling above them, down the walls and across the floor back into the unit.

What is the downside of a tankless water heater?

The main disadvantage of tankless water heaters is their upfront cost (unit and installation) is significantly higher than tank-style heaters. Including installation, tankless water heaters cost 3 times more than tank-style water heaters on average. … they cannot provide hot water during a power outage.

Do tankless water heaters produce carbon monoxide?

Tankless gas water heaters release carbon monoxide gas as part of the combustion process. This is normal. Depending on if you have an indoor or outdoor model determines how your tankless water heater is vented. Carbon monoxide poisoning occurs when an indoor tankless water heater is not venting correctly.

Do tankless water heaters need a condensate drain?

If you own a condensing tankless water heater, your installer should have included a drainage system to drain your water heater. … Don’t worry, it’s not leaking, but rather undergoing a normal process called condensation, and Noritz makes the removal process easy with its condensing tankless models.

Why are power vent water heaters so expensive?

A power vent water heater will cost more initially due to extra equipment needed such as the fan and blower. Also, you will need to run a power line to the fan which will also add to the cost.

Why does my electric water heater have a fan?

A power vent water heater uses a blower or fan to exhaust gases by pushing them through vent pipes that are horizontal. … Essentially, because the power vent requires a fan/blower to operate, the costs of heating water will be higher over the power vent’s life span.

Can you vent hot water heater out wall?

Direct vent or horizontally vented water heaters are designed for installation where vertical chimneys or flues are not available or would be more expensive to install. The vents go directly through an outside wall, and can also bring in combustion air to the gas burner.

What is the proper way to vent a gas water heater?

The venting must be vertical or upward sloping so that the hot exhaust rises up through the venting to exit your home. Making sure that your home has a properly working vent system is imperative when installing a standard atmospheric vent with your water heater.

How do you fix a backdraft water heater?

The relatively small burner on the water heater may not generate enough heat to warm up the chimney or vent, which can lead to backdrafting. In many cases, a new vent liner will be installed to allow the water heater to vent into a smaller space.
