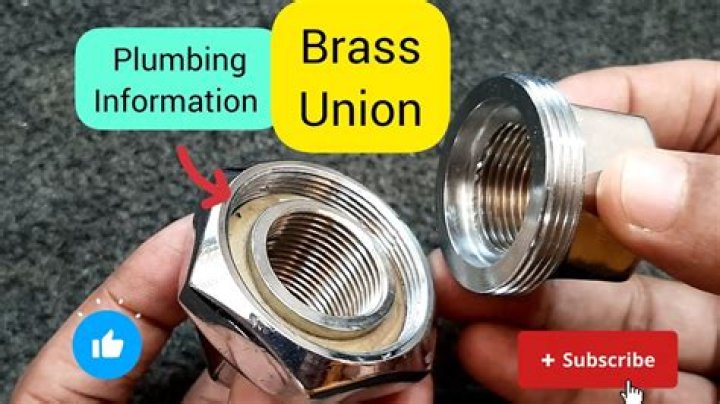

What does a brass union do

Manufactured from high-quality lead-free brass and complies with NSF 61, ASTM B62 and ANSI standards. Threaded union is used to connect two threaded pipes together and allows for easy disconnection of these pipes for service, repair, maintenance or other purposes.

How does a union fitting work?

A union is used when you are trying to join two pipes together that are fixed, thus unable to be turned. A union is very similar to a coupling, except that it can be unscrewed into two separate pieces and then screwed back together when both separate ends are attached to the two pipe ends that need to be joined.

Does brass work as a dielectric union?

Brass is the best alternative for a dielectric union for water distribution system problems. It is used where water is not of great quality as it is the area where mostly corrosion takes place as dielectric will not work with the corrosion. It is made up of an alloy of copper and zinc.

What is the correct way to install a pipe union?

Thread the male half of the union nut onto the left-side pipe, and tighten it securely. Slip the ring nut portion of the union onto the right-side pipe with the threads facing outward. Thread on the other half of the union nut, and tighten it securely.

Why do unions leak?

You join the union by tightening the central nut. It pulls the two halves of the fitting together and seats them into a washer, which makes the seal. When a union leaks, it’s usually because the pipes that it’s joining are slightly offset.

Do you use Teflon tape on unions?

Don’t use teflon tape on union threads. For copper unions you can grease the threads and mating faces with vaseline or use pipe dope. tests good. The pipes going into the unions need a pipe thread sealer.

How do you tighten a union?

Tighten each of the pipes to the couplings using the pipe wrench. Screw the union’s end nut, with the larger central nut attached, by hand onto one pipe end. Tighten it in place with a crescent wrench. Screw the union’s other end nut onto the other pipe end, again tightening it with the wrench.

Which side is the nut side of a union?

The “nut side” of the union should be the entering side. A quick Google search indicated such.

How much length does a pipe union add?

The distance between the fittings and the extra reach must be included in the length. If you are using 1/2 inch pipe, add 7/16 inch per end and 1/2 inch per end.

Can you connect brass to copper?

As an alloy of copper and zinc, brass is compatible with copper, and manufacturers produce many common plumbing fittings with the material. Solder adheres as well to brass as it does to copper, so the fittings are usually molded with slip joints so you can solder them to the pipes.

Article first time published on

Is brass a good dielectric material?

Brass is a copper/zinc alloy, so a brass nipple qualifies as a type of “copper alloy fitting” that is cited as acceptable by the code. While a dielectric union (shown above) provides a break in electrical conductivity that theoretically would be best, most plumbers prefer a brass fitting.

Does brass cause electrolysis?

Metals that are different, such as galvanised, steel, brass and copper pipes come into contact with each other can cause electrolysis.

How do I stop my brass from leaking?

When a leak occurs, the most common way to fix it is by using brass compression fittings. These are comprised of a valve body, a ferrule (a round copper ring), and a nut which screws to the valve body, compressing the ferrule as it is tightened.

How do you seal the copper union?

You probably need to put pipe dope, not tape, on the mating surfaces and then REALLY tighten them. I would use plumbers grease on the mating surfaces and behind the nut that spins. they will seal with enough force applied to them.

Do dielectric unions leak?

A dielectric union is a plumbing fitting that is meant to join two dissimilar metal pipes so they don’t experience a galvanic reaction and begin to rust. … We find many dielectric unions that have started to rust which will eventually lead to a water leak if not remedied.

Why do dielectric unions fail?

every single union fails miserably by either leaking, clogging up completely, rusting to pieces with no water contact outside pipe or depositing rust in water.

Do new water heaters need dielectric unions?

Dielectric Unions If either the tank nipples or the pipes are galvanized steel, however, and you are connecting them to copper, you must use a fitting called a dielectric union to make the connection. … Both the hot and cold water pipes must have this fitting — it’s a code requirement.

Can I use a union on a gas line?

only unions allowed on gas are at the appliance. exposed or not, you can’t use them. gotta use left-right coupling and nipple.

What is a union nut?

In contrast to a coupling requiring solvent welding, soldering, or rotation (for threaded couplings), a union allows easy connection and disconnection, multiple times if needed. It consists of three parts: a nut, a female end and a male end.

What is socket pipe?

A Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

How do you connect brass to copper pipe?

1. Sand around the end of the copper pipe that will join to the brass fitting, using 120-grit emery cloth. …
2. Brush a thin layer of soldering paste (called flux) onto both the outside pipe end and the inside of the brass fitting’s copper pipe inlet.

What is the difference between coupling and union?

The basic difference between a coupling and a union is that a coupling is for joining pipe to pipe or pipe to a swedge. A union is made for joining and disassemble of a part of a piping system (a steam trap or control valve, etc) for maintenance or replacement.

How do you break a plumbing union?

To crack open a union, determine which of the smaller union nuts the ring nut is threaded onto. With a wrench on each nut, turn the ring nut counterclockwise. When unscrewing pipe, use the second wrench to keep the fitting from turning while you unscrew the ring nut.

How do you tighten a dielectric union?

First step: Wrap several layers of pipe sealing tape over the threads of the steel pipe. Install the threaded end of dielectric union body to the steel pipe. Turn the union clockwise and tighten with a pipe wrench.

Do you use Teflon tape on brass unions?

Often referred to as a plumber’s best friend, Teflon tape or thread sealant is a simple yet effective material found in tradie toolkits worldwide. … In fact, it’s essential to use thread tape for those household brass fittings unless a rubber seal or gasket is in place.

What is blue Teflon tape used for?

Teflon tape , properly known as “thread seal tape,” is used in the plumbing industry to seal the threads at the end of a pipe. Thanks to its unique construction, when used properly, Teflon tape can prevent plumbing leaks by filling the threads of pipe connections.

What is the throw of a fitting?

: to express extreme anger Dad will throw a fit if he finds out.

How much thread allowance should you allow for a 2 inch pipe?

1/2-inch and 3/4-inch nominal pipe size have 14 threads per inch. 1-inch, 1 1/4-inch, 1 1/2-inch and 2-inch nominal pipe size have 11 1/2 threads per inch.

What is fitting allowance?

Fitting allowance: the dimension from the end of a pipe inserted into a fitting to the outlet of the fitting. … Thread engagement: the length of pipe inserted into a fitting to the point where the threads are snug and a watertight seal can be achieved.

How does threaded union work?

A pipe union consists of three parts – a nut, a female end and a male end. To make an effectively working pipe fitting, both the male and female ends are sealed together with the help of nuts. A female threaded fitting has threads on the inside, while in the male-threaded fitting, the threads are on the outside.

Are PVC unions directional?

PVC Unions are non-directional in terms of flow, and position is usually determined to allow for easy access and disassembly.
