What does a 2 0 door mean

The nomenclature of doors is as follows: the width is specified by 2 or 3 numbers that indicate the feet and inches of the door a 2-0 [written 20] is 2′-0″ wide or 24″ wide, a 2-6 [written 26] is 2′-6″ wide or 30″ wide, a 2-10 [written 210] is 2′-10″ wide or 34″ wide.

What size door is a 3 0?

A: Doors are measured in feet and inches as follows: a standard 36″ wide x 80″ height x 1-3/4″ thick door is called a 3/0 (“three oh”, which means 3 feet, 0 inches) x 6/8 (“six eight”, which means 6 feet, 8 inches) x 1-3/4″.

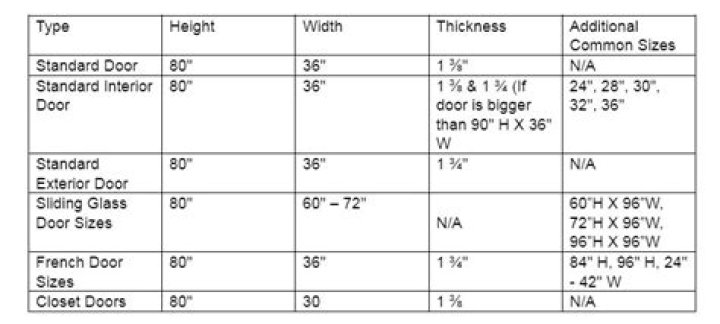

What are door sizes?

TypeHeightWidthStandard Door80”36”Standard Exterior Door80”36”Sliding Glass Door Sizes80”60” – 72”French Door Sizes80”36”

What size is a 24 inch door?

Rough Opening WidthRough Opening HeightDoor Size to Order25.75″ – 27″81.5″ – 83″24″27.75″ – 29″81.5″ – 83″26″29.75″ – 31″81.5″ – 83″28″31.75″ – 33″81.5″ – 83″30″

What is the rough opening for a 2 0 door?

2/0 door = 2/2 R.O. 2/4 door = 2/6 R.O. 2/6 door = 2/8 R.O.

How wide is a 3 0 door opening?

Standard Sizes Door widths which are considered standard usually come in sizes of 2/6 (30”), 2/8 (32”) and 3/0 (36”). Standard door heights are 6/6 (78”) and 6/8 (80”).

Is a 32 inch door actual 32 inches?

No, the door frame will be 32 inches. The door itself will be about one eighth to one quarter of an inch narrower to allow space for opening and closing it. When you say 32″ door size, it is the outer dimension.

What are standard interior door sizes?

Standard widths include 18, 20, 24, 28, 30, 32 and 36 inches. Standard heights include 80, 84 and 96 inches. Customized sizes are available in a wide range of different designs. To measure a prehung door, remove the interior casing and measure the opening.

How do I know what size door to buy?

Take three measurements inside the door frame – at the top, middle and bottom. The widest measurement determines the width of the door. Use a tape measure to understand the width of the three areas of the door frame. Run the tape measure along the width of the frame from the left to the right and record these numbers.

Are doors standard sizes?

The standard size for an exterior door is 80 inches by 36 inches which is 6 ft, 8 inches by 3 ft. 96 inches or 8 ft. is now very common for newer homes and stock exterior doors are also commonly available in 30 and 32-inch widths. … The standard door thickness is 1 ¾ inch.

Article first time published on

What is standard front door size?

The standard size for a front door is 36” x 80”, or about 3′ x 6’7”. Beyond this, you can find exterior door sizes ranging from as narrow as 30” to as tall as 96”. If you have a double door entryway, the standard size will be 72” x 80”, or double the width of a single front door with the same height.

What size is a 2 6 door?

Door Specifications2/4 (28″) (Single)30″82-1/2″2/6 (30″) (Single)32″82-1/2″2/8 (32″) (Single)34″82-1/2″

How much bigger should a door jamb be than the door?

A basic rule of thumb is to make the rough opening 2 inches wider and 2 1/2 inches taller than the door.

What is the standard door size in Canada?

According to the specifications, the standard door size Canada is found to be 6 ft 8 in by 3 ft 96 in. With newer exterior doors, homeowners can also think of having the dimensions measuring at 30 and 32 inches in width. There are also doors that are measured at 7 ft and 8ft in height and 24-inch to 42-inch in width.

What size is a door opening?

The width can vary from 12 to 48 inches. The width of a door’s rough opening is the width of the door plus 2 inches. The 2 inches accounts for a 3/4-inch jamb board on each side plus 1/2-inch adjustment space. If you are using pre-hung doors, the opening should be 1 inch to 1 1/2 inch wider than the door and its jambs.

What is the true size of a 32 inch door?

2’8″ (32 Inch) Door Width (Actual Size 31-3/4″) by Door Closers USA.

How wide is a 32 inch door slab?

Nominal Slab SizesActual Size (approx.)RO for 8 FT30″29.5″33″ × 96″32″31.5″35″ × 96″36″35.5″39″ × 96″40″39.5″43″ × 96″

How wide is a 30 inch door?

In the building trades, a 30-inch door is called a “2-6” door, meaning 2 feet, 6 inches wide, or 30 inches. If you haven’t framed a door before, this project provides an excellent opportunity to learn.

How much smaller should a door be than the frame?

Check for Fit Check the door fit. Ideally, there should be a gap of about 1/8 inch at the top and along each side, and about 3/8 inch at the bottom.

Does door size include frame?

Standard Door Frame Size The average measurement of 36 by 80 inches refers to the door panel itself, not including the frame. The frame extends beyond the panel, and is installed into the rough opening. The rough opening should be at least ¾ inch wider and ? inch taller than the door frame.

Can you replace a door without replacing the frame?

In many cases, you can replace a door without replacing the frame, as long as the frame is in good shape, and not warped or worn. … A door slab is essentially a pre-cut piece of wood in the shape and size of a door.

Do you measure the door or the frame?

Be sure you’re measuring to the jambs, not the stops. Measure the height of the frame, from the top of the floor (interior door) or the threshold (exterior door) to the inside (bottom) face of the top jamb. Measure in three places, and use the smallest dimension.

What size is a bathroom door?

A bathroom door needs to adhere to the same standard size considerations as any other interior door. It should be at least 80 inches high, and 24-36” wide. The thickness and design of the door should match it’s door frame.

What is the smallest door width?

Called a 6/6 door, it’s reserved for closet and utility doors. Standard door width for interiors is 32 inches. This is the minimum width required for a passage door. You may also find a few narrower doors in stock, including 30 inches, 28 inches, and 24 inches.

What is the gap between door and frame called?

When two individual windows or a door and window are joined, the seam between the frames of the two units is called the mull, which is short for mullion. In this case, a door jamb has been joined to a window/sidelight jamb.

How much gap should be at the bottom of a door?

The gap at the bottom of an interior door should be 2 inches from an unfinished floor. Over a finished floor, the gap should be between ¾ to ½ of an inch, depending on the type of floor you have. The gap at the bottom of an exterior door should be almost nonexistent.
