What does 24V common mean

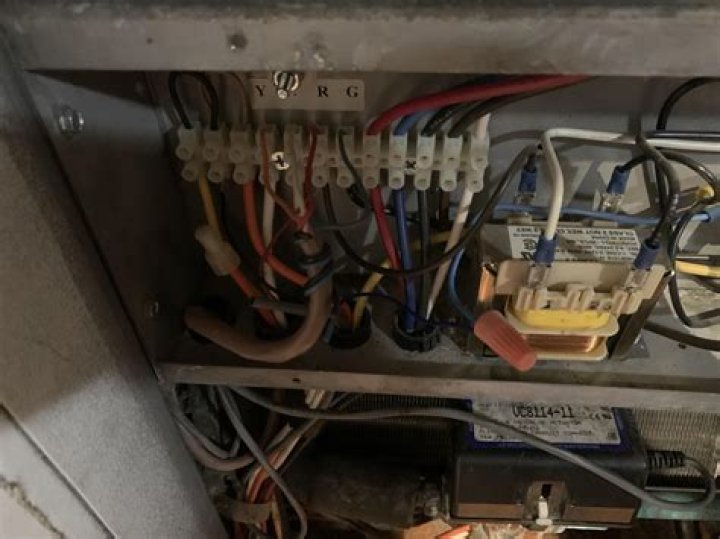

The C wire is simply the “common” side of the transformer 24V output (there are two wires coming out of the 24V transformer, “hot” and “common”). Just tap into the “common”. The R (red) wire is really the power source. The C wire closes the circuit and allows continuous flow of 24V energy to power the thermostat.

What is the HUM wire on thermostat?

This configuration allows the humidifier to run whenever the fan switch is set to ON at the thermostat or when the blower operates for some electric heat pump applications. This configuration allows the humidifier to run whenever there is a call for heat. Make sure the “HUM” terminal is 24 volts and not 120 volts.

What is a 24V common wire?

The C-Wire, or “common wire” enables the continuous flow of 24 VAC power to the thermostat. It’s a wire that (if you have one) runs all the way from your furnace to your thermostat. … This bundle green, blue, yellow, white, and red color wires is known as “5 conductor” wire and it is a common type of thermostat wiring.

What is hum terminal on furnace?

The HUM terminal on most furnaces is a 120VAC terminal. If you want to use the HUM terminal to control the humidifier, you’re going to have to use a step down transformer, to drop that down to 24VAC. To measure the voltage on the HUM terminal: Set your volt meter to measure AC volts.

What is the best thermostat to buy?

• Our pick. Google Nest Learning Thermostat. The best smart thermostat. …
• Runner-up. Ecobee SmartThermostat with Voice Control. The most versatile smart thermostat. …
• Budget pick. Honeywell Home T5 Smart Thermostat. Cheaper smart control. …
• Our pick. Mysa Smart Thermostat. Best baseboard option.

What do furnace wire colors mean?

The wires are typically arranged as follows: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be a different color).

What does the R wire do on a thermostat?

The R wire is the power wire for your heating and cooling system. If you only have one R wire (no Rh or Rc), you can connect your R wire to either Rc or Rh on the Nest thermostat.

Can you use a nest without a C wire?

Nest claims that you can use the Nest Thermostat without a C-wire. While this is true, it would be advisable to have a C-wire. A lot of Nest users have had problems when they use the thermostat without a C-wire. In the absence of a C wire, your thermostat battery charges itself by using the power from your HVAC system.

What does the C wire do on a thermostat?

WHAT IS A C-WIRE? A C-wire, or a common wire, runs from your low voltage heating system (24v) and carries continuous power to your thermostat. In today’s electric market, most newer heating and cooling systems have C-wires, which guarantees compatibility for the installation of all smart thermostats.

Why is there a jumper between R and RC?

Effectively there isn’t a second RH wire, although there is an RH terminal. However, the heating still needs to be controlled, so a wire known as a jumper is connected between the RC and the RH terminals so that power gets to the heating control part of the thermostat.

Article first time published on

What color is the common wire?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

What is a good temp for thermostat?

For winter, the ideal thermostat temperature is 68 degrees Fahrenheit when you’re at home. Energy.gov 68 degrees is a good room temperature while you’re awake at home, but recommends lowering it while you’re asleep or away. Lowering your thermostat 10-15 degrees for eight hours can reduce your heating bill by 5-15%.

How long should a thermostat last?

But, just how long will a thermostat last? They generally last about 10 years but can last longer depending on the make, model, and type of thermostat. Over time, these systems start to age and a thermostat may malfunction because of normal wear and tear, dust accumulation, wiring issues, and rusting.

Is it OK to run an engine without a thermostat?

Generally it should be ok to drive without the thermostat fitted, as it will only cause the engine to take longer to reach operating temperature. The thermostat is designed to allow the engine to reach ideal operating temperature as quickly as possible, so it would not be recommended to drive without it.

How does a 24 volt thermostat work?

They usually operate at 24V ac power, and the source of this control power comes from a control transformer mounted either just outside, or inside the furnace body. … This function allows you to circulate the air in the house by using the fan in the furnace without heating or cooling the air moving through the system.

What color is the C wire on a thermostat?

Blue wires are also called “C” wires because they are the Common wire. C wires are necessary for any “smart” thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type.

Does R go to RH or RC?

Here are some general guidelines: An R wire can go into a Nest Learning Thermostat’s Rc or Rh connector. The Nest Thermostat E only has an R connector, which is typically where an R wire would go. … These are not jumper wires, and you can insert the Rc wire into the Rc connector and the Rh wire into the Rh connector.

Does the red wire go to RC or RH?

The RH wire refers to “red heating” which means that this is the connection you need in order to power the heating system of your air conditioning unit. … The RC wire, on the other hand, refers to “red cooling”. It’s the same with the RH wire in that it powers the thermostat. For the RC, it powers the cooling system.

What does R and W mean on thermostat?

W wire – heat. R wire – heat power. W wire – heat.

What are the wires on a thermostat?

• The W wire is connected to your heating system. …
• The Y wire is yellow and connects to your air conditioning compressor.
• The G wire is green and connects to the fan.
• Rc and Rh: The red wire(s) are the power source for your thermostat.

What has C-wire but no power?

Quick Check for an Existing C-wire: If the thermostat loses power it does not have a C-wire, and you may need an add-a-wire kit. If it doesn’t lose power, locate your breaker panel. Flip the breaker for the wall with the thermostat on it. If it loses power, you likely have a C-wire.

What is furnace humidifier?

Also called whole-house humidifiers, furnace humidifiers connect with forced-air HVAC systems to moisten the warm air that the furnace is pushing throughout the home. They work by holding a reservoir of water, by using a fresh water supply or by creating steam to add to the airflow from the furnace.

Can I install humidifier on cold air return?

Can my Bypass Flow Through Humidifier be installed on the air return? Yes. Though the ideal mounting location is on the warm air supply, sometimes it’s not possible due to space restrictions. Fortunately, Honeywell’s Bypass Flow Through Humidifiers can also be installed on the return air duct.

How much does it cost to put a humidifier on your furnace?

How much is a furnace humidifier to regulate the moisture level and prevent dry conditions in a house? A heating contractor charges $640 to install a whole house furnace humidifier but you can do the job for $275 and save 57 percent.

Can I use my G wire as AC wire?

Option #3: Use a G-Wire as a C-Wire If there is no hidden C-wire, you can use a G-wire instead. However, you will not be able to use your fan independently when the heating or cooling isn’t running. Also, many HVAC systems are incompatible with this solution, including: … Two-wire heat-only HVAC systems.

What happens if you short thermostat wires?

If you short the R wire to the C wire, you’ve effectively created a very low resistance closed circuit across the secondary of the 24V transformer in the HVAC system. … Since the thermostat is on the secondary side of the transformer, the circuit breaker for the HVAC system may react too slowly, or not at all.

What is the Y2 wire on a thermostat?

Y2 is the thermostat wire for second stage of cooling. Y wire is for the first compressor (air conditioner units) and Y2 wire is for the second compressors (air conditioner unit). Y2 wires apply only if you have two air conditioner compressor units running from one AC thermostat.

What does RH stand for in HVAC?

Relative humidity (RH) is a measure of the moisture in the air, compared to the potential saturation level. Warmer air can hold more moisture. When you approach 100% humidity, the air moisture condenses – this is called the dew point. Air temperature is a measure of the heat.

Which wire is hot when both are clear?

If the plastic is clear, the wires in the neutral side are silver while those in the hot side are copper.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means.
