What do you test amps with

It is measured in the unit of the Ampere, simply called “Amp,” (A). The most common way to measure current in a circuit is to break the circuit open and insert an “ammeter” in series (in-line) with the circuit so that all electrons flowing through the circuit also have to go through the meter.

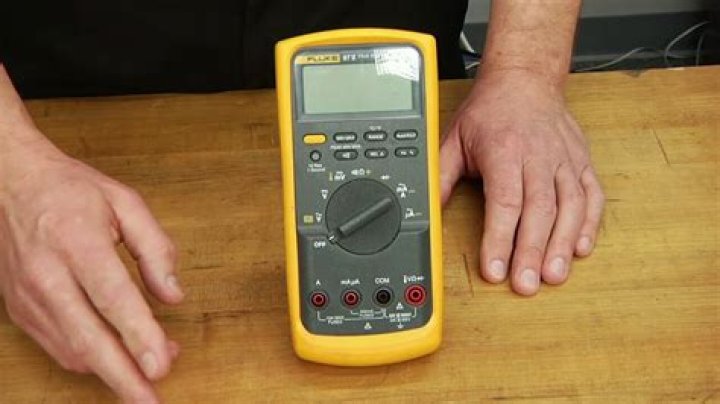

How do you convert a multimeter to ammeter?

The first step to convert a voltmeter to an ammeter is to determine the resistance Rm of the voltmeter. Make the circuit connections as shown in Fig 2(a). 2. Keeping R = 0, adjust the supply voltage E so that the voltmeter shows large readings Vm.

How do I convert volts to amps?

The formula to convert volts to amps at a fixed wattage is: amps = watts / volts.

Are amps drawn or pushed?

One amp is equal to a flow of one coulomb per second through a wire. Making electrons flow through a resistance requires an attractive force to pull them. This force, called Electro-Motive Force or EMF, is measured in volts. A Volt is the force required to push 1 Amp through 1 Ohm of resistance.

Can an ammeter be used to measure voltage?

An ammeter is a measuring device used to measure the electric current in a circuit. A voltmeter is connected in parallel with a device to measure its voltage, while an ammeter is connected in series with a device to measure its current.

How do you read an ammeter in a circuit?

V=IR, here V is the potential difference across a resistance R through which a current I is flowing. The ammeter is connected in series with the circuit. So its reading will show the value of the current flowing in the circuit. Hence, the reading of the ammeter is equal to 1A.

How do you check amps on an ammeter?

To measure current, you must connect the two leads of the ammeter in the circuit so that the current flows through the ammeter. In other words, the ammeter must become a part of the circuit itself. The only way to measure the current flowing through a simple circuit is to insert your ammeter into the circuit.

How do I test a 30 amp outlet with a multimeter?

Checking 30-amp outlets With the circuit breaker in the “on” position, insert the black probe into the half-round slot (ground). Insert the red probe into the left rectangular slot (hot). The reading should be 115 to 120 volts, which indicates that the ground connection is good and that the polarity is correct.

How do you test a circuit breaker with a multimeter?

1. Turn the car off then access the fuse box. …
2. Remove the shortstop circuit then test it with a multimeter.

How many amps does a 60 watt bulb draw?

A 60 Watts bulb draws 0.54 Amps to operate. A 80 Watts bulb draws 0.72 Amps to operate.

Article first time published on

How many amps will a 60 watt light bulb use if your house is 120 volts?

At 120V, a 60 watt bulb draws 0.5 A.

Do devices pull current?

Current is drawn… meaning it is pulled from the supply by the device attached to it. An extremely crude model of a device that’s plugged into a power supply is a resistor…it completes the path from higher to lower voltage potential and will restrict the flow of current.

Is an amp more than a Volt?

Voltage and amperage are two measures of electrical current or flow of electrons. Voltage is a measure of the pressure that allows electrons to flow, while amperage is a measure of the volume of electrons.

How many volts is 12 amps?

VoltageCurrentPower12 Volts7.5 Amps90 Watts12 Volts7.917 Amps95 Watts12 Volts8.333 Amps100 Watts24 Volts0.2083 Amps5 Watts

How many amps does a 1.5 volt battery have?

Normal AA/AAA batteries that have a voltage rating of 1.5V can supply constant 50mA current for a total capacity of 1800-2600 mAh charge and 3.90Wh of energy- Alkaline batteries. (Source: Wikipedia).

What is digital ammeter?

A digital ammeter is an instrument that measures the flow of an electrical current in a circuit. The measurements are given in amperes, the unit for measuring electrical current. … PDUs with digital ammeter displays report the aggregate current load on the device.

What is DC ammeter?

A DC ammeter is an instrument which is used to measure the amount of DC current flowing in a circuit. The DC ammeter has a scale which represents current in ampere. The instrument got its name ammeter from ampere meter because it measures the amount of current in ampere.

Do ammeters have resistance?

An ammeter usually has low resistance so that it does not cause a significant voltage drop in the circuit being measured. Instruments used to measure smaller currents, in the milliampere or microampere range, are designated as milliammeters or microammeters.

How is a voltmeter and ammeter connected in a circuit?

An ammeter will be always connected in series as it has a low resistance and the Voltmeter will be always connected in parallel because it will be having a high resistance. On interchanging their position, An ammeter is usually connected in parallel.

When a voltmeter is used to test a circuit for voltage it?

The voltmeter can take measurements throughout a circuit and tell technicians the difference in voltage between two points. The voltmeter can be used to measure voltage drop.

How do you find the current flowing through a circuit?

If the voltage (V) and resistance (R) of any circuit is given we can use the current formula to calculate the current, i.e., I = V/R (amps).

How is electrical current measured?

A device called an ammeter is used to measure current. Some types of ammeter have a pointer on a dial, but most have a digital display. To measure the current flowing through a component in a circuit, you must connect the ammeter in series with it.

Why does voltmeter measure current more accurately than an ammeter?

Voltmeters are high-impedance devices, so the currents that flow through them are small – otherwise they would introduce errors into the voltage they are trying to measure.
