What do SWR readings mean

The SWR reading indicates how much of the radio’s power is being turned into radio signals by the antenna. If you have an SWR ratio reading of 1.0, that indicates that 100% of the radio’s power is being transmitted. A ratio of 3.0 is registered when the antenna is only transmitting a third of the radio’s power.

What should your SWR be?

SWR Range Explanations. SWR 1.0-1.5: The ideal range! If your SWR is under 1.5, you’re in great shape. If you’re at 1.5 and really, really want to drop down to closer to 1 it’s likely possible to do with addition tuning, different equipment or a different mounting location.

Does SWR matter for receiving?

If swr is very high, for example due to a broken antenna cable or short circuit you will notice that reception deteriorates. The swr meter itself leads to a slight, but unnoticable, loss of reception.

How do I adjust the SWR on my antenna?

Turn the radio to channel 1. Key the microphone (depress the button and hold it). Turn the knob on the SWR meter labeled “SET” or “ADJUST” until the needle reaches the setting position at the end of its range. While still keying the microphone, flip the switch on the SWR meter to the “REF” or “SWR” position.

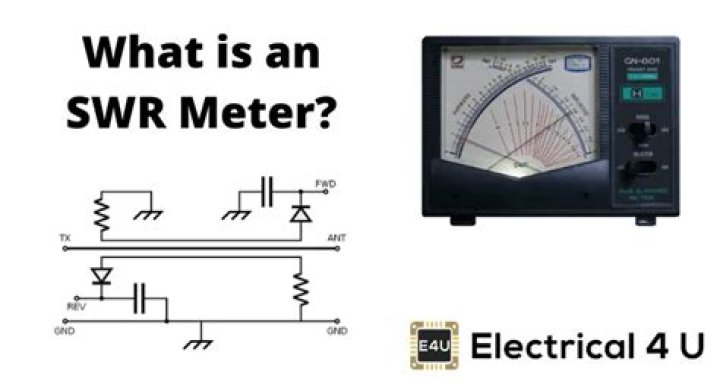

What is SWR on a radio?

In radio engineering and telecommunications, standing wave ratio (SWR) is a measure of impedance matching of loads to the characteristic impedance of a transmission line or waveguide. … SWR is usually measured using a dedicated instrument called an SWR meter.

How can I improve my SWR?

If your antenna is mounted down low on the vehicle, like on the bumper or behind a pickup truck’s cab, the signal can bounce back to the antenna, causing a high SWR. To alleviate this, keep at least the top 12 inches of the antenna above the roof line, and position the antenna as high as possible on the vehicle.

How important is SWR?

By adjusting and setting the “SWR” on the entire bandwidth (high and low channels), it will ensure optimum performance on all of your radio channels. The radio will receive and transmit well with a good “SWR” reading of 2.5 or less across all channels. The lower the “SWR” reading the better your radio will perform.

How do I get more power out of my CB radio?

TUNE THE RADIO. A CB radio is only as good as the coax and antenna connected to it. …
USE CB-SPECIFIC ANTENNAS. …
ESTABLISH A GROUND PLANE. …
CHECK THE VSWR. …
ELIMINATE RESISTANCE.

How does high SWR damage a radio?

High SWR can reflect enough power back into the radio to create enough heat to cook the final RF transistor. It isn’t usually an immediate failure, it takes some time for that heat to build up and do damage.

How does an antenna analyzer work?

A second type of antenna analyzer measures the complex voltage across and current into the antenna. The operator then uses mathematical methods to calculate complex impedance, or reads it off a calibrated meter or a digital display. Professional instruments of this type are usually called network analyzers.

Article first time published on

What is a good SWR for ham radio?

What is a good SWR reading? A good SWR reading is as close to 1:1 as possible. If you’re SWR is 1:1, that means 100% of the power from your radio will be transferred to your antenna. If you’re SWR is 2:1, that means you’re losing 14% of your output power at the antenna.

Why does my Cobra CB say antenna warning?

The antenna warning should only come on if the SWR is over 3. If the antenna warning comes on when the SWR is below 3, then the antenna warning needs to be adjusted.

How do I know if my SWR meter is bad?

Be dead as a doorbell. No movement. Ever. This is definitely a defective meter.
Always peg to the far right when the mic is keyed, with adjustment of the CAL dial failing to move it leftward.

How do you ground a CB antenna?

Ground Your Antenna Mount To ensure a good ground, check that your mount has a direct metal-on-metal connection to your vehicle’s frame. Depending on the location of your mount, paint or powder coating can interfere with this connection. If this occurs, you’ll need to scrape a bit of the paint or powder coating off.

Does an antenna need to be tuned to receive?

3 Answers. Antennas are reciprocal – they transmit and receive equally well (or poorly). The reason it’s important to tune a transmit antenna is because a mistuned antenna, by reflecting power, can destroy the transmitter output stage.

How do I increase antenna impedance?

You could simply add a chip resistor in series to increase the impedance real part. And HFSS can easily handle this. However, as has been mentioned by others, L-type inductor/capacitor combinations are better at controlling the complex impedance of your antenna and feed network.

How do you check antenna resonance?

In common with other measurements for measuring the resonant frequency of a tuned circuit the basic idea is to couple the coil of the meter to the circuit under test. When the meter is tuned to the resonant frequency of the antenna then the meter current will dip.

How long is a CB antenna?

Handheld CB Antennas – Handheld CB radios come with a rubber antenna, usually about 8 inches long. You can buy upgrades and choose between another 8 inch rubber antenna, and a telescoping antenna that starts at 8 inches, but expands all the way out to 27 inches.

What is the longest range CB radio?

Federal Communications Commission (FCC) limits AM signals to 4 Watts of power and 12 watts peak envelope power for SSB mode. The CB radios with the longest range of 15 – 30 miles are offered by the SSB mode along with a good CB antenna and with the least noise.

What CB antenna is best?

The Firestik FS is hands-down our favorite fiberglass CB antenna. …
The Wilson Little Wil antenna is extremely affordable and offers a great blend of performance without limiting your clearance by too much. …
At 62″, the Wilson 1000 is a much larger antenna but it performs extremely well.

What is the best CB radio ever made?

Best All-in-One Unit – Cobra 75 WX ST.
Best Full-Sized Radio – Cobra 29 Series.
Best Heavy-Duty Radio – Uniden Pro 510 XL.
Best Portable Radio – Midland 75-822.
Best Long Range CB – The Cobra 148 GTL.
Best Value Radio – Midland 1001 LWX.

How do I test a SWR antenna?

To run a test, simply connect your radio’s coaxial and antenna cables to the indicated ports on the meter. When you set the meter for calibration and activate the radio transmitter, you’ll see a number indicating the strength of the signal being broadcasted. SWR is typically only tested on mobile or base installations.

Can I leave my SWR meter in line?

You could leave the SWR meter connected in-line, but you have to have a way to secure it so it’s not bouncing around and it’s out of the way. Really, if you can access the connections on the back of your CB, it’s easy enough to connect the meter to calibrate your antenna and then remove it.

Do I need a SWR meter?

So, yes, an SWR meter is a good tool to have. An antenna analyzer is even better. But if you don’t have one and want to get on the air, stick to the basic antenna designs, double/triple check your math, and make sure you have good connections. Also, most commercial radios have high SWR protection circuits.

How does a antenna tuner work?

An antenna tuner (and any of the names in the list below) is a device that is inserted between a radio transmitter and its antenna; when properly adjusted (tuned) it improves power transfer by matching the impedance of the radio to the impedance of the antenna, or the feedline which connects the antenna to the …
