What causes ferroresonance

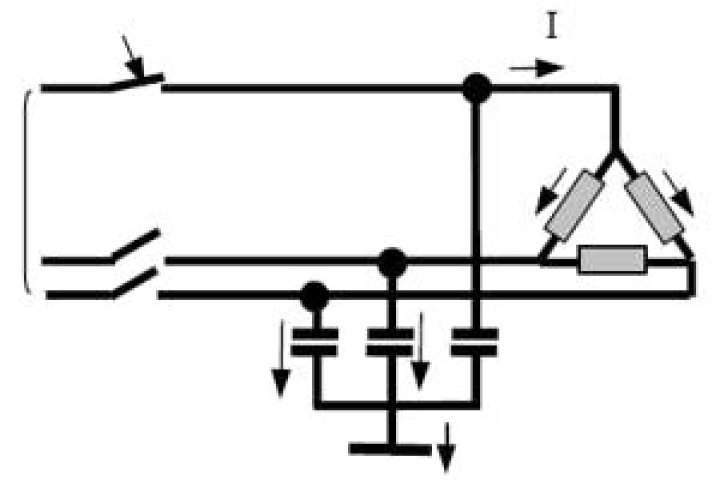

Ferroresonance can occur when an unloaded 3-phase system consisting mainly of inductive and capacitive components is interrupted by single phase means. … If such a network has little or no resistive load connected and one phase of the applied voltage is then interrupted, ferroresonance can occur.

What is voltage transformer ferroresonance?

Ferroresonance can occur when the primary of a voltage transformer is connected line to ground in an ungrounded circuit. This configuration results in the magnetizing reactance of the VT being in a parallel loop with the coupling capacitance to ground of the system (see Figure 1).

What is resonance overvoltage?

Abstract: Resonance is a phenomenon that occurs in electrical power systems of all voltage levels. The nonlinear resonance such as ferroresonance is excited in circuit with linear capacitors and nonlinear inductances. …

What is the function of ferroresonance suppression circuit?

Ferroresonance-Suppression Circuit DesiQn Affects CVT Transient Response Figure 6 shows two types of ferroresonance-suppression circuits. reduces to the resistance of the loading resistor and attenuates the energy of off-nominal- frequency voltages.

How do ferroresonant transformers work?

Ferroresonant Transformers are designed to achieve regulation with non-linear operation. They provide line regulation, reduce harmonics, and are current limiting. a load is connected across the secondary winding, the secondary current produces a secondary flux which tends to cancel the primary flux.

Why is PT primary grounded?

Re: PT Primary Neutral Earthed The zero sequence component is due to an earth fault hence phase to earth voltage of system having zero sequence component deviate from the normal value.

What are the effects of Ferroresonance?

Ferroresonance is a non-linear resonance phenomenon that can affect power networks. The abnormal rates of harmonics and transient or steady state overvoltages and overcurrents that it causes are often dangerous for electrical equipment. Some unexplained breakdowns can be ascribed to this rare, non-linear phenomenon.

What is damping resistor used for?

A resistor that is placed across a parallel resonant circuit or in series with a series resonant circuit to decrease the Q factor and thereby eliminate ringing. A noninductive resistor placed across an analog meter to increase damping.

How does a constant voltage transformer work?

The CVT (ferro) uses the unique principle of ferroresonance: operation of a transformer in the region of magnetic saturation. When the iron core of a transformer is in saturation, relatively large changes in winding current results in very small changes in magnetic flux.

What is nonlinear inductance?

[′nän‚lin·ē·ər in′dək·təns] (electricity) The behavior of an inductor for which the voltage drop across the inductor is not proportional to the rate of change of current, such as when the inductor has a core of magnetic material in which magnetic induction is not proportional to magnetic field strength.
