What causes cylinder taper

Cylinder Taper is caused by wear caused by friction and combustion cause the bore to be cone shaped. Cylinder Out of Round is caused by pressure created by piston rings to the cylinder walls.

How much taper can a cylinder have?

Any above 0.002″ is generally considered too much for race engines. Get around engines can tolerate up to 0.005″ or more. Oil consumption will increase as taper does.

How much taper is too much?

There’s no hard number, since factors like age and preexisting health conditions can play a role, but there is a general limit. “A normal person with normal kidneys can drink [roughly] as much as 17 liters of water (34 16-oz. bottles) if taken in slowly without changing their serum sodium,” says nephrologist Dr.

Are cylinder bores tapered?

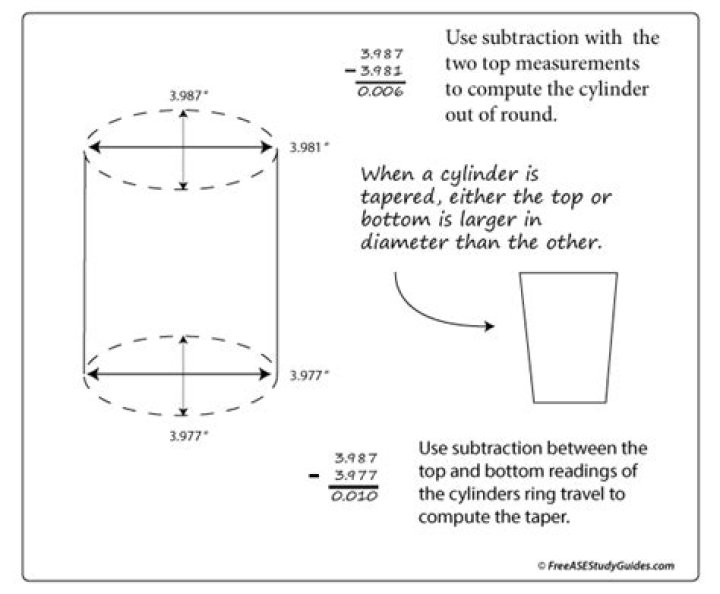

Cylinder Bore Clearance The cylinder’s taper and out of round dictate whether a cylinder is acceptable or if the engine block needs to be bored. … Taper: Taper is the difference in the diameter of the cylinder between its top and bottom. Take measurements at the top, and compare them to the measurements at the bottom.

How are piston pins checked for wear?

Pistons should be inspected and measured at several locations including the skirt, top, middle and bottom ring lands and the pin bore. The skirt should always be measured exactly 90º from the pin bore. … It is important to use new rings for the measuring procedure because wear will reduce the width of the old rings.

Where does maximum cylinder bore wear occur?

The top of the engine where the cylinder head mounts. Where does maximum cylinder bore wear occur ? Most of the wear occurs at the top of the ring travel area.

What is cylinder stroke?

A cylinder stroke is the distance covered by the rod and the piston between full-in and full-out positions. It can also be defined as the difference between maximum extended length and minimum extended length.

How do I know my bore size?

The best way to measure bore diameter is with a Dial Bore Gauge. If your block needs machined, the shop will hone the bore. When the machining is done, they will tell you the final measurement.

Why is a micrometer highly accurate?

A micrometer is a sensitive tool for making accurate measurements of linear dimensions. It’s one of the most important measuring instruments ever made. It has a rigid C-shaped frame. One side has an anvil that is fixed, and on the other side is a moveable spindle.

Why does a cylinder wear more at the top than the bottom?

Attention is called to the fact that maximum wear usually is found in line with the top ring at the upper limit of its travel. This is attributed to the presence of dirt and to the high temperatures which make lubrication difficult in this region.
