What AMP is a light switch

Commercial, Industrial, Residential Switches: Just like with outlets, some switches need to carry more amps than others. Most residential switches are rated at 15 amps, whereas industrial and residential switches usually are rated at 20 amps.

How do I know if my light switch is 15 or 20 amp?

Tip: The easiest way to determine whether a circuit is 15 or 20 amps is to look at the corresponding breaker or fuse in the breaker panel. Dedicated circuits are electrical lines that carry an electrical current to one single outlet.

Can I put a light switch on a 20 amp circuit?

So, basically the switch needs to be a 20 amp switch for multiple receptacles on a 20 amp circuit. This is because you can’t assure that the overall load won’t exceed 15A. If you had only one 15A rec switched, it would be ok.

Can you put a 15 amp light switch on a 20 amp circuit?

You can’t use a single receptacle on a single branch circuit. In the case of a branch circuit, a 20 amp circuit will work really well! … In short, a 15 amp switch can be used all over a 15 amp circuit. But for a 20 amp circuit, the outlet has to be a singular 15 amp one.

What is a 20A switch used for?

20 amp Double Pole Switches are generally used with Electrical appliances that need to be hard-wired as opposed to using a Plug and Socket. They are usually protected by a fuse or circuit breaker in a consumer unit or fuse board.

Can I use a 10 amp light switch?

Yes, any bulb that falls within the wattage range of the dimmers can be used. The minimum load on the dimmer module is 10W. This means there will be no dimming effect if the combined bulb wattage is 10W or less. If the combined wattage you are using is too low, it may cause your lights to flicker.

What happens if you put a 20 amp outlet on a 15 amp circuit?

If your question is “can I connect a receptacle rated for 20 amps to a circuit designed for 15 amps?”, the answer is yes, because the receptacle can handle more current than the circuit is rated for. If you exceed 15 amps, the breaker will blow, and protect the receptacle.

Can you run 15 amp outlets on a 20 amp breaker?

The use of multiple 15 amp receptacles on a 20 amp circuit is permitted. A duplex receptacle is considered as multiple receptacles and is therefore permissible to use as the single, or one of several, multiple type receptacles on the circuit.

How do I know what AMP my light switch is?

A rule to go by is. If you have one or two lights on that one switch, then a 15 amp is good. But if you have a lot of lights on that one switch I would just go with a 20 amp switch to be safe.

Can I use 14 gauge wire on a 20 amp circuit?

14 AWG must be protected at 15A, according to NEC 240.4(D)(3). 14 AWG can’t be used on a circuit with a 20A breaker. The screw terminals are the better choice if you want to put 15 Amp receptacle on a 20 Amp circuit with 12 gauge wire. You can use the side terminals.

Article first time published on

Can I use a 20 amp switch on a 30 amp circuit?

Yes, you can use a 30-amp circuit for outlets. … If it’s a multi-outlet device, we can install a 20-amp circuit to protect the #10 conductor. Then, we can use 20-amp and 15-amp receptacles on the 30-amp circuit.

What is a 20 amp double pole switch?

Double pole switches make it possible to isolate appliances safely. They tend to be used for appliances with heavy loads like cookers and showers. … A 20A double pole switch is likely to be only suitable for small ovens, whereas regular ovens are likely to need a 45A DP switch.

What are the 4 types of switches?

• SPST (Single Pole Single throw)
• SPDT (single pole double throw)
• DPST (double pole, single throw)
• DPDT (double pole double throw)

What is a 3 way switch used for?

A 3-way switch is one that allows you to control a ceiling light (or other electrical fixture) from two separate locations. Common scenarios would be 3-way switches located at both the top and bottom of a stairway, or having 3-way switches next to doors in a room with two entry points.

Should I get 15 or 20 amp outlets?

Standard 15-amp receptacles are suitable for typical household appliances, lamps and other accessories. A 20-amp receptacle is for heavy-duty appliances and power tools, such as air compressors. Residential garages occasionally have 20-amp receptacles to accommodate larger power tools.

Can I use 12 gauge wire on a 15 amp circuit?

Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.

Do I need 20 amp outlets in kitchen?

Kitchens must have at least two 20-amp outlets. These outlets are used to power high voltage appliances such as toasters, blenders, and microwave ovens. … The necessary power supply to operate common kitchenware appliances typically is 20 Amps.

What is a 5 amp switch?

5 amp sockets are used on the lighting circuit, meaning they are switched on and off with the light switches in the room, rather than being used like regular plug sockets. They are designed for appliances that take less than a 5 amp current, for example floor lamps, table lamps and fans.

What is a dolly switch?

noun. An electrical on-off switch whose external operating mechanism is a short pivoted lever terminating in a rounded knob, rather than a spring-loaded rocker. … ‘Our extensive range covers rocker and dolly switches, dimmers, aerial sockets and cooker points, computer and telecom sockets in all finishes. ‘

Is a light switch AC or DC?

The first thing you need to know is that light switches are rated based on the electrical current type. For example, the two most common types of lighting switches are DC (direct current) and AC (alternating current).

Are light switches different?

There are several different types of switches, and although they may look the same when they are installed with their outlet covers intact, the various switches look and function differently on the inside. Most of the common types of switches come in different styles, such as toggle, rocker, slider, or push-button.

How many amps is a bathroom light switch?

Bathroom Circuits A basic wiring plan for a bathroom includes a 20-amp, GFCI-protected circuit for the receptacles and a 15-amp general lighting circuit for the switches, light fixtures, and vent fan.

How do I choose a light switch?

When choosing the type of light switch, things to consider include the ease of use, style and function. Here’s a list of the different types: Push-button: A simple electric or air switch mechanism turns the light on or off. Certain models allow a momentary or latching action function.

Does it matter what wire goes where on a light switch?

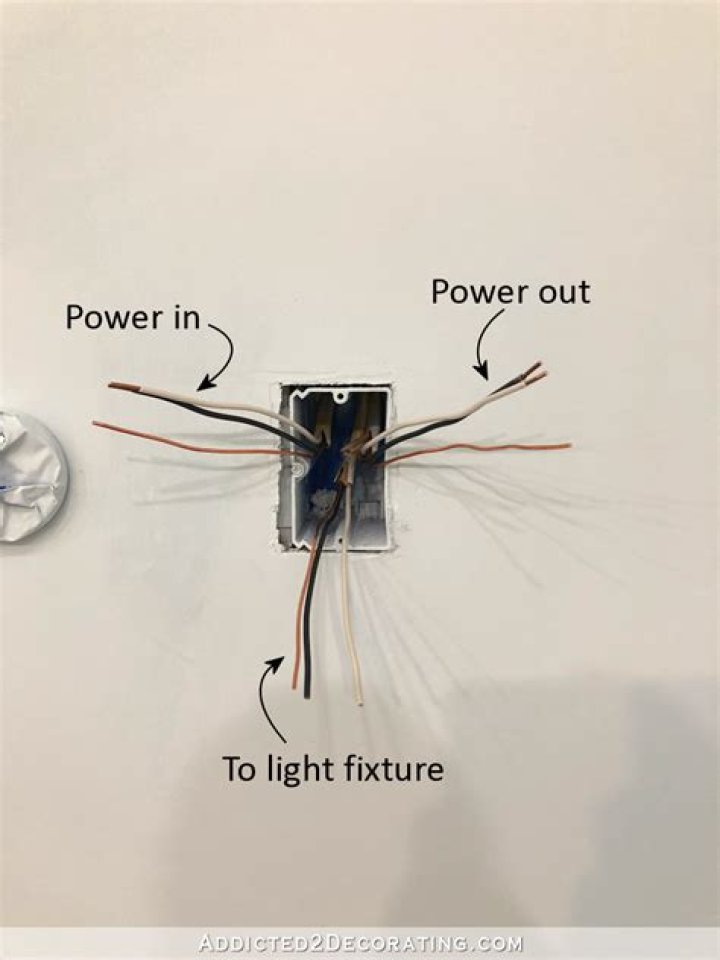

One of the black wires is the “hot” from your circuit breaker panel and the other black wire goes to the light fixture (load). If you’re using a regular light switch, then it doesn’t matter which wire goes to which screw, since the switch is just opening and closing the circuit to make the light turn off or on.

How many amps does a microwave use?

The microwave ovens consume power at a rate of 650– 1200 watt, which equates to a current of around 10 Amps.

How many outlets and lights can be on a 15 amp circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

How many outlets and lights can be on a 20 amp breaker?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

Should I use 12 or 14 gauge wire?

As long as you don’t put too many lights on the light circuit, you can usually control that circuit with a 15-amp breaker, as well as wire it with a 14-gauge wire. … On the other hand, an outlet circuit controlled by a 20-amp breaker requires a 12-gauge wire.

Can I use 16 gauge wire for lighting?

Choosing Electrical Wire Size 16-gauge are used for light-duty extension cords supporting 13 amps. 14-gauge are usedfor light fixtures, lamps, lighting circuits with 15 amps. 12-gauge are used in kitchen, bathroom, outdoor receptacles, and 120-volt air conditioners supporting 20 amps.

What is the difference between 12 2 and 12 3 Romex?

The first number indicates the gauge of the wire. … A 12-2 Romex will have a black(hot) and a white(neutral) wire as well as an unsheathed copper wire for ground. A 12-3 Romex will have a black(hot), red(hot), white(neutral), and bare copper. The red on a 12-3 is used for three-way light switches which are covered later.

Is a 2 pole 30 amp breaker 60 amps?

Single-pole breakers are rated for 120 volts and 15 or 20 amps. … The breakers themselves are relatively narrow and occupy a single slot in the home’s breaker box. Double-pole breakers, on the other hand, are typically rated for 20 to 60 amps and supply 240-volt power to large appliances, like electric dryers and ranges.
