What a bad weld looks like

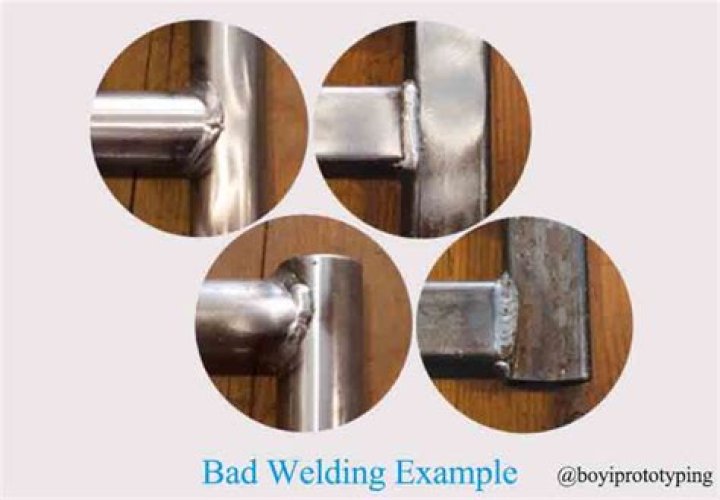

Signs of a bad weld include: Burnout, no filler metal used, wide flat bead without distinct bead pattern, erratic beads, tungsten inclusion, porosity and/or undercutting.

Can you weld over a bad weld?

It should be remembered that welding over weld metal is actually a very common occurrence. Multi-pass welds after all are manufactured by welding over weld metal! There are also many accepted procedures in which welds overlap. … Another factor to consider is compositional variation between the two welds.

What causes a bad weld?

Weld defects are often caused by improper technique or parameters, such as poor shielding gas coverage or incorrect travel speeds.

What are 5 welding defects?

• Porosity and Blowholes.
• Undercut.
• Weld crack.
• Incomplete fusion.
• Slag inclusion.
• Incomplete penetration.
• Spatter.
• Distortion.

Does grinding a weld weaken it?

If you do grind a perfect weld, yes it will make it weaker. If you just want to smooth it a little to make it look nicer, it will weaken it a little bit but should still have structural integrity. Grinding a weld doesn’t always weaken the weld, but may.

What are the common weld defects?

• Lack Of Penetration or Incomplete Penetration.
• Lack Of Fusion or Incomplete Fusion.
• Undercut.
• Spatter.
• Slag Inclusions.
• Cracks.
• Porosity.
• Overlap.

What causes a pinhole in a weld?

Porosity is usually caused by the contamination of gases trapped inside the meld. These gases are released during the welding process by the welding gun and absorbed by the molten metal. … This causes an uneven gas flow to the arc and creates pinholes.

What is weld crack?

Weld cracking refers to a depression left at the termination of a weld where the weld pool is left unfilled. Most forms of weld cracking result from the shrinkage strains that occur as the weld metal cools.

What kind of defects should not be in good welding?

Gas cavities remaining inside the bead are an internal defect known as blow holes. The causes of these defects include the use of improper shielding gas; insufficient deoxidizer; oil, rust, plating or other matter adhering to the surface of the groove in the base material; and moisture contained in the material.

What should a perfect weld look like?

A good weld is easy to distinguish. It will be straight and uniform with no slag, cracking, or holes. There will be no breaks in the weld. It shouldn’t be too thin and there should be no dips or craters in the bead.

Article first time published on

Is bolting stronger than welding?

Welded joints are normally stronger than bolted joints, in great part because their material does not have the perforations needed for bolted joints. The manufacturing process is the determining factor when it comes to joint strength: bolted joints offer simplicity, but welded joints provide higher strength.

How do you test a weld?

Welds can be tested by destructive and non-destructive techniques. Most production is tested by use of non-destructive methods. The most common non-destructive tests to check welds are Visual Inspection, Liquid Penetrant, Magnetic Particle, Eddy Current, Ultrasonic, Acoustic Emission and Radiography.

How can you tell if a weld is lack of fusion?

The pure lack of fusion can be detected only by the visual inspection during welding. The other types of lack of fusion may be detected by ultrasonic testing methods. The lack of fusion reaching the surface may be detected by the liquid penetrant or magnetic particle testing methods.

What are the two types of welding defects?

Welding defects are broadly classified into two categories, and those are: External welding defects (Defects occur on the upper surface of the welded work). Internal welding defects (Defects occur under the surface of the welded work).

What angle should you weld at?

Horizontal position In the horizontal welding position, a work angle of 30 to 60 degrees works well, depending on the type and size of the joint. The goal is to prevent the filler metal from sagging or rolling over on the bottom side of the weld joint.

What type of welding is strongest?

Bottom Line. TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.

What are holes in welds called?

Figure 1: Round holes in the weld bead are a sign of a defect called weld metal porosity. … Evidence of porosity comes in the shape of rounded holes, called spherical porosity (see Figure 1). If the holes are elongated, the defect might be called wormholes or piping.

What is wormhole porosity?

Wormhole porosity typically occurs during the flux cored arc welding process (FCAW) on both self shielded and gas shielded applications. The common cause of this condition is the nitrogen getting trapped as it tries to escape the puddle during the solidification process.

How do we avoid bad welds?

Prevent this type of weld defect by using the right metal. You’ll need to remove the impurities in your metal and preheat it as required. Additionally, use the proper joint design for the material and properly cool the welded area. Be sure to weld enough sectional areas, too.

What is burn through weld?

The test setup for the welding process. Burn-through is defined as an undesirable open hole when the base metal completely melts, which can be caused by excessive heat input, improper travel angle, travel speed, and insufficient electrical sickout.

What causes lamellar tearing?

Lamellar tearing is a form of cracking that occurs in the base metal of a weldment due to the combination of high localized stress and low ductility of the plate in the through-thickness direction.

What are the welding defects causes and remedies?

• Wrong joint design.
• Contamination of the base metal coupled by poor ductility.
• Use of hydrogen gas as a shield gas while welding ferrous metals.
• High content of carbon and sulfur in the base metal.
• High welding current.
• Rapid cooling of the weld joint.
• Inadequate preheating.
• Residual stress can also lead to cracks.

How do I know if my weld is failing?

Signs of a bad weld include: Lack of uniformity, cracks down the middle of the bead, too thin, and/or a lack of discoloration of the parent metal (which should be about 1/8 of an inch).

Is welding cheaper than bolting?

While the cost of both welded joints and bolted joints will vary, bolted joints are generally less expensive to manufacture for a project than welded ones. … Welded joints do tend to come with lower installation costs, but certified welders may charge higher hourly rates, which could cost a company more in the long run.

Why is a weld so strong?

This may seem like a trivial point, but it’s actually critical to understanding why welding produces such strong bonds. … Welding, on the other hand, cuts out the middleman and joins the original pieces directly to each other. The result is a strong, cohesive bond that’s often as strong as the material itself.

Can you bolt and weld?

For new construction, bolts and welds may be required to work together in connections in which the materials being joined first are secured with bolts and then are welded to obtain full connection strength.

What do visually inspecting welds look for?

Visual Inspection involves looking at a weld with the naked eye and/or with some level of magnification. Typically, our inspectors are checking for cracks, pits, surface pores, undercut, underfill, missed joints, and other aspects of the weld.

How do you check for welding defects?

Magnetic Particle Inspection Electromagnetic particle inspection is one of the best non-destructive methods to detect surface cracks, defects that are too small for the human eye to see and discontinuities that are subsurface in a weld.

What causes welding cracks?

The major cause of a crack is when internal stresses exceed the strength of the weld metal, the base metal, or both. And once a focal point for these stresses—that is, a stress riser—develops and accumulates, a crack can propagate.
