Should I use AFCI or GFCI

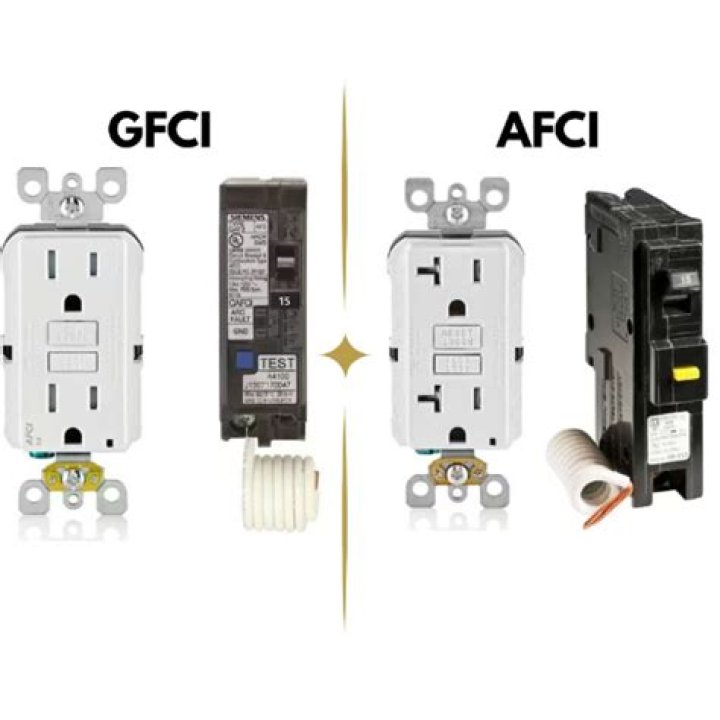

The AFCI should not be confused with the GFCI. The AFCI (Arc Fault Circuit Interrupter) protects against fires caused by arcing faults. Arcing faults often occur in damaged or deteriorated wires and cords. … The GFCI (Ground Fault Circuit Interrupter) is designed to protect people from severe or fatal electric shocks.

When should AFCI be used?

16 states that AFCI protection is required for all 120-Volt, single phase, 15 and 20 amp branch circuits supplying outlets or devices installed in living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas, and similar rooms or areas.

Where are AFCI required?

AFCI protection is currently required for all 15 and 20 amp branch circuits providing power to outlets* in residential family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, and similar rooms or areas.

Are AFCI outlets worth it?

AFCIs have proven so effective at preventing electrical fires that the National Electrical Code (NEC) requires AFCIs to be installed in almost every room in newly built houses. Bathrooms, garages, and unfinished basements—areas defined as non-living spaces—are among the few exceptions.

Can an AFCI replace a GFCI?

Can a separate AFCI Receptacle and a GFCI Receptacle be used on the same circuit? Yes, they both can be used on the same circuit; however, the Dual Function AFCI/GFCI Receptacle offers the option of providing both AFCI and GFCI protection in a single device.

Why are AFCI breakers so expensive?

Poorly installed electronics (such as a ceiling fan) can cause your newly installed AFCI breaker to constantly trip. If this is the case, the electrician will need to fix the faulty wiring in order for the AFCI breaker to work properly and this will increase your overall cost.

Can I use an AFCI outlet instead of a breaker?

Why would I use AFCI outlet instead of breaker? The AFCI outlet can be a great alternative depending on the circumstance. AFCI outlets work with any type of wiring and are not dependent on the type of breaker in the panel.

How much does an arc fault breaker cost?

Adding AFCI protection for an entire branch circuit typically requires the installation of a AFCI circuit breaker. These circuit breakers cost about $30 – $50 each, and installing them means replacing existing circuit breakers, which I don’t consider to be a good “starter” electrical project.

Can you put a GFCI outlet on a GFCI breaker?

2 Answers. Yes, it can be done. There is no problem having a GFI fed from another GFI. The only down side is troubleshooting.

Do bathrooms require AFCI?

AFCI protection is not required for outlets located outside or in garages or bathroom areas.

Article first time published on

Why does my AFCI keeps tripping?

The two main causes for nuisance tripping at AFCI circuit breakers are improperly wired circuits and incompatibility with electronic devices. Wiring Problems – when an AFCI circuit breaker is installed, the wiring for that circuit needs to be done a little bit differently.

What will trip an arc fault breaker?

The Five Possible Causes of an AFCI Breaker Tripping An Overload – when electrical usage would have begun to overheat a circuit’s wires. A Short Circuit – very high current resulting from a fault on the circuit. An Overheating Breaker – when the breaker itself has poor contacts or connections.

When did AFCI become code?

In 1999, AFCIs became a requirement in the National Electrical Code (NEC®). An AFCI breaker provides a higher level of protection than a standard circuit breaker by detecting and stopping a hazardous arcing condition before it can become an electrical fire.

How many plugs can a GFCI protect?

There’s no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.

How long do AFCI breakers last?

An AFCI or CAFCI circuit breaker should last 30 to 40 years, with an average of 35 years.

What is a AFCI outlet?

Eaton’s Arc Fault Circuit Interrupter (AFCI) receptacles are designed to recognize a dangerous arc in your wiring and immediately break the flow of electricity, thus preventing your electrical system from becoming an ignition source for a fire.

Do AFCI outlets protect the whole circuit?

An AFCI device protects the entire circuit from the electrical panel through the downstream wire to the outlet, along with all appliances and equipment plugged into that circuit. If an AFCI device trips, it is most likely the result of a potentially dangerous arcing condition detected by the device.

How many AFCI outlets can be on a circuit?

So it all started with the bedrooms. However, with every consecutive update of the Code, AFCIs were required in more rooms and areas. Since the revision of the NEC in 2017, every 15 and 20-amp, 120-volt, single-phase branch circuit outlets for dwelling areas are required to have AFCI installed on them.

Why are GFCI expensive?

And why are GFCI outlets so expensive relative to regular outlets? GFCI outlets cost around $16 because they’re more complex than a standard outlet. But you can save money by taking advantage of a GFCI’s ability to protect all outlets downstream of it.

Are GFCI breakers more expensive?

A GFCI receptacle often costs around $15. A GFCI breaker might cost you $40 or $50, versus $4 to $6 for a standard breaker. If money is an issue and you only need to protect a single location, a GFCI outlet might a better choice than a GFCI breaker.

Do arc fault breakers prevent fires?

Part of home security is protection against accidents, such as electrical fires. Although not sexy, arc fault circuit interrupters (or AFCI) helps prevent electrical fires. For safety, install AFCIs in your home! … These fires result in over 350 deaths and around 1,400 injuries annually.

Can you run GFCI in series?

You only need 1 GFCI outlet per circuit (assuming it’s at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel – if they were in series, you wouldn’t get the correct voltage at the other outlets when there is any type of load present.

Why do GFCI outlets go bad?

A GFCI outlet will go bad in a wet location if it isn’t properly protected from the elements. All outdoor GFCIs should be in electrical boxes rated for weather exposure and should have covers that protect them from rain and snow. If you’re wiring a GFCI yourself, be sure to do it correctly.

Can you have a GFCI breaker and outlet together?

You can, and it’s permitted by code, but you run the risk of coordination issues between the GFCI trip units on the GFCI breaker and the downstream GFCI receptacle(s), since they are typically both designed to trip on an unbalance/leakage current of 5mA or more.

Does refrigerator require AFCI?

A modern refrigerator requires a dedicated 20-amp circuit. … This circuit usually does not require GFCI protection unless the outlet is within 6 feet of a sink or located in a garage or basement, but it generally does require AFCI protection.

Where are AFCI breakers required 2020?

In the 2020 edition of the NEC®, Section 210.12 requires that for dwelling units, all 120-volt, single-phase, 15- and 20-ampere branch circuits supplying outlets or devices installed in dwelling unit kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, …

Does bathroom GFCI need to be arc fault 2020?

NEC doesn’t require AFCI because it does require GFCI, and they are not the same. GFCI outlets protect against electrical shock and this is very important around water. AFCI protects against electrical arcs that come from damaged cords and bad connections.

Is AFCI required for lights?

AFCI requirements. The NEC requires that virtually all branch circuits for lighting and receptacles in a home must have arc-fault circuit-interrupter (AFCI) protection. This is a form of protection that guards against sparking (arcing) and thereby reduces the chance of fire.

Do bathroom lights need to be GFCI protected?

As mentioned above, GFCI protection is required for any electrical outlets or switches that are in the area where you could get wet while using your bathroom.

How do you prevent an arc fault?

Perform a hazard analysis. …
Reduce available fault current. …
Shorten clearing time. …
Adopt remote operation. …
Predict and prevent faults. …
Redirect blast energy.

Can a surge protector cause an arc-fault breaker to trip?

Arc fault circuit breakers are very sensitive, so it doesn’t take much to trip them. A fluorescent light, surge protector, or anything with an LED display could be leaking enough current to constantly trip your arc fault circuit.
